How To Install an ALLOY USA AXLE for your 1999-2004 Mustang GT/Mach 1

Installation Time

4 hours

Tools Required
  • Wrenches: 8mm, 13mm, 15mm, 5.5 mm allen, 6mm allen
  • Sockets: 5/8, 3/4
  • Ratchet
  • Floor Jack
  • Jack Stands
  • Wheel chocks
  • Torque Wrench
  • Axle Bearing Removal Tool
  • Slide Hammer
  • Hammer
  • Wood Block
  • Impact gun
American Muscle
Shop Parts in this Guide

Installation

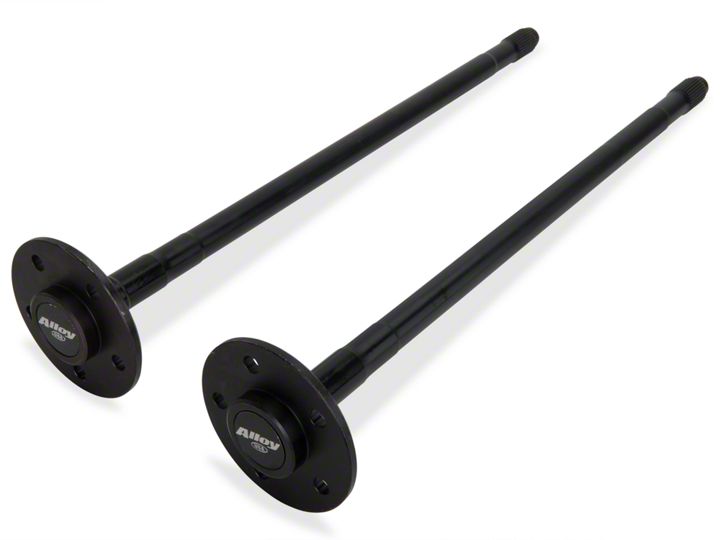

Please note: This install was completed on the Alloy USA 31 spline axles, but the installation instructions can be referenced for any brand or spline count axles.


1. Engage emergency brake and put transmission in gear; automatics use Park.

2. Place wheel chocks or blocks in front of and behind each of the front wheels.

3. Loosen the lug nuts (but do not remove) using a breaker bar and 3/4 socket (this size may vary depending on your particular lug nuts).

4. Carefully raise the rear of the car by placing the jack at the front of the rear differential housing. Place jack stands on both sides of the vehicle under the frame.


5. Slowly lower the jack, allowing the rear axle to come down, and move the jack out of the way.


6. Remove the lug nuts and pull the wheels off.

7. Place the car in neutral and release the emergency brake.

8. Remove the two 13mm brake caliper bolts and pull the caliper out of the way. Repeat for other side of vehicle.

9. Remove the two 15mm caliper bracket bolts and set the bracket aside. Repeat for other side of vehicle.


10. Remove both rotors.

11. Place a drain pan under the rear axle housing.

12. Remove the differential cover drain plug using a 6mm allen wrench (this may vary depending on which type of cover you have).


13. Remove the ten differential cover bolts using a 5.5mm allen wrench (may also vary).

14. Pull the cover off and set aside.

15. Rotate the axles until the differential pin retaining bolt is accessible.


16. Use an 8mm wrench to remove the bolt.

17. Slide the differential pin out of the carrier.

18. Push the axles slightly towards the center of the car and remove the C-clips using a magnet or needle-nose pliars.


19. Pull the axles out of the car.

20. Slide an axle bearing puller tool into the axle housing and catch the back side of the axle bearing. Tighten the nut.

21. Attach the slide hammer tool and hammer out the bearing and the axle seal.


22. Attach the new axle bearings to the bearing puller tool with the letters on the bearing facing outward.

23. With the slide hammer attached, hammer the new bearing into the axle housing until it stops.

24. Using a hammer and a block of wood, carefully tap your new axle seal into the housing. The flat face of the seal should be facing outward. Stop when this face is flush with the axle tube.

25. Repeat these steps for the other side of the car.

26. Install the new wheel studs into the new axles by placing the stud in the axle. Then place a spacer over stud, followed by a nut. (Do not use your lug nuts as they will get damaged in this process).

27. Using an impact gun, tighten the nut until the new studs are pulled flush with the back of the axle flange. Do this for all the studs.


28. Insert the new axles into the axle housing. Push them in as far as they will go.



29. Reinstall the C-clips on the axles, and push/pull the axles away from the differential to make sure the C-clips are seated.

30. Slide the differential pin back into the carrier and tighten the differential pin retaining bolt.

31. Clean the differential cover gasket surface on the housing and the cover.

32. Using a new cover gasket, reinstall the cover and tighten cover bolts.

33. Locate the fill plug on the front of the differential housing and remove. (Or remove the fill plug on top of the differential cover, if applicable).

34. Fill with 3 quarts of gear lube oil and one 4 oz. bottle of friction modifier. (I recommend 75w-90)

35. Reinstall the fill plug.

36. Reinstall both rotors.


37. Put the car back in gear and apply the emergency brake.

38. Apply a small amount of thread locker to the caliper bracket bolts and reinstall the bracket.

39. Reinstall the calipers.

40. PREVENTATIVE MAINTENANCE – apply anti-seize to the caliper bolts. Check the brake pads and replace if needed.

41. Reinstall the wheels and lug nuts. Make sure the lug nuts are fairly tight.

42. Place a floor jack under the front of the axle housing and raise until the jack stands can be removed.

43. Slowly lower the jacks until it is free and slide it out from under the car.

44. Tighten the lug nuts to the recommended torque specification for your application/wheels. If you are unsure of your torque specification, tighten to at least 100 lb-ft.

45. Remove wheel chocks.


Installation Instructions Written By AmericanMuscle Customer Tyler Vanlant 4/18/2013

This guide applies to Mustang years: 1999, 2000, 2001, 2002, 2003, 2004 and Submodels: Bullitt, Mach 1, GT
