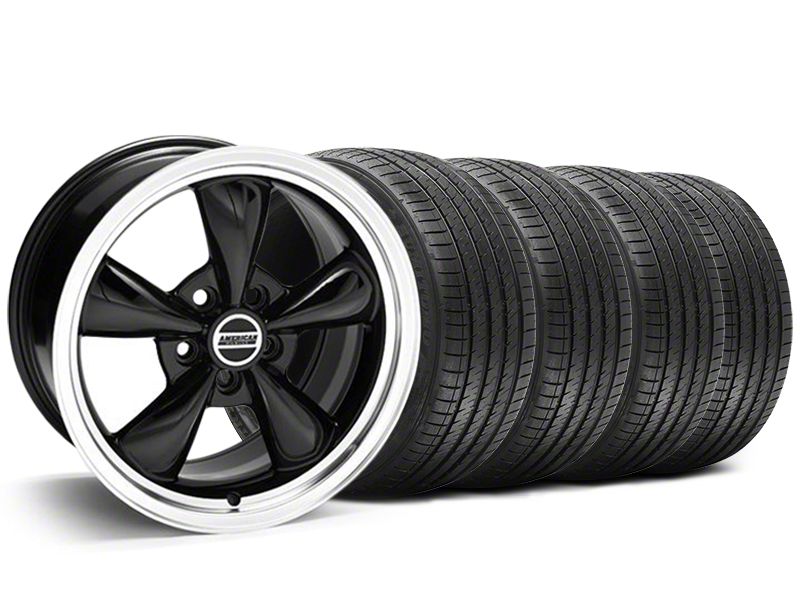

Staggered Bullitt Black Wheel & Sumitomo Tire Kit - 20x8.5/10 (05-14 V6; 05-10 GT)

Market Price $1,397.24 You Save % ($1.28)
Our Price

$1,395.96

FREE Shipping
  • Item 32668
  • Add Road Hazard Protection

  • Add FREE Nitrogen Fill

  • Add TPMS Sensor Kit (recommended for 2007+)

  • Add TPMS Sync Tool

Total Price with Options:
Out of Stock Notify Me Choose options to add to cart

Features, Video & Details

  • (2) 20x8.5 Black Deep Dish Bullitt Wheels
  • (2) 20x10 Black Deep Dish Bullitt Wheels
  • (2) 255/35-20 Sumitomo High Performance HTR Z III Tires
  • (2) 285/30-20 Sumitomo High Performance HTR Z III Tires
  • Free Mounting & Balancing
  • Free Optional Nitrogen Fill
  • Fits 2005-2014 V6 and GT Mustangs
  • Road Hazard Protection Plan Available

Review & Installation Video

Review & Install Video

Hey everyone I’m Justin with AmericanMuscle.com and I’m taking a look at the classic mustang wheel design and by far our most popular wheel here at AmericanMuscle, Im referring to these Bullitt wheels for all 2005 and up model mustangs in either chrome, matte black, anthracite silver or gloss black. Bullitt wheels have long been the favorite of many Mustang owners out there, from the classic 60s roots to the factory built for Bullitt mustangs in 2001 and then again in 08 and 09, it's easy to see why these wheels look so good on Mustangs of all ages. Wheels are available in 17, 18, 19, and 20 inch diameters and are offered in both staggered and non-staggered fitments. They are also offered with a very cool deep dish option that refers to the lip around the wheel itself, as you can see the face of the wheel is set further back into the rim resulting in a nice thick lip which looks very tough. As I mentioned before these wheels are available in both staggered and non-staggered fitments. Now, staggered fitment means your rear wheels and tires are going to be wider than your fronts, that’s exactly what we’ve done with our 06 GT here, we have the 9s up front with the 10s our back resulting in that classic muscle car stance. Now this is also better for your traction and handling as well thanks to the fact that you are able to run a wider rear tire so you can help get that power down to the ground. If you’re not a fan of staggered fitment then you might want to check out our non-staggered or standard fitment like we have installed on our 07 GT back there on the lift, we have the matte black standard 17x9s on all four corners and as you can see it looks really sharp. Or say you really want to change up the look of your ride and you live and die by the saying bigger is always better, well if that sounds like you then you will definitely want to check out our 20x8 1/2s on our 2011 GT back there on our dyno jet whichever finish you end up going with you can rest assure that every wheel is covered by our 1 year finish warranty and a lifetime structural guarantee. You can get these wheels by themselves or in one of our pre-built tire and wheel combos which pair your new Bullitt wheels up with some of better performing tires on the market today in sizes that are guaranteed to fit without rubbing even if you are lowered an inch or two, you also get to take advantage of our free mounting and balancing, optional nitro fill and free shipping and handling. Of course with you 2007 and up guys you’ll want to remember your TPMS sensor when ordering your new wheels. You don’t want your new wheels to be held on by some rusty looking lug nuts, this will be a great time to ditch those eyesores and get a new lug nut to better fit your new Bullitt wheels and of course you want to pick up some wheel locks to protect your investment. Installing a new set of wheels and tires is something any backyard mechanic should be able to tackle, all you need to do is simply crack your lug nuts loose first while the car is still on the ground then jack your car up and switch the wheels, it’s just that easy. Using a basic floor jack and hand tools that should take you no more than an hour, so if you are looking to evoke that classic muscle car styling on your modern ride, these Bullitt wheels from AmericanMuscle will give you an aggressive look that is sure never to go out of style.

Easy "One Click" Shopping. We have combined our most popular wheels and tires together into an easy "one click" to buy combo kit. This combo kit features four wheels and tires that are the exact specifications for your year Mustang for a guaranteed perfect fit with no rubbing or clearance issues.

Standard Wheel and Tire Setup. Our Standard wheel and tire combo kit uses the same size wheels and tires on the front and the rear which allows you to routinely rotate your tires to equalize tread wear and maximize the life of the tires.

Black Deep Dish Bullitt Wheel. Show off your pony heritage with the muscular good looks of the iconic Bullitt rim. The seamless spokes flow into a deep dish lip to exaggerate the width for an aggressive stance. They are completed in a black clear coated finish to protect against the hazards of road chips & pitting and featured a machined lip for a high-shine accent.

255/35-20 and 285/30-20 Sumitomo High Performance HTR Z III Tire. Sumitomo's HTR Z III series tire is an ultra high performance summer tire. The aggressive design delivers extraordinary performance in either wet or dry conditions, on and off the track. The HTR ZIII's five rib asymmetric tread design pattern merges cornering with straight line stability. Siped tie-bars reinforce block rigidity for control and enhance wet traction.

Free Nitrogen Fill. AmericanMuscle is proud to bring you the option to fill your tires with pure nitrogen for FREE when we mount & balance your wheel and tire order. Filling your high performance tires with nitrogen can result in longer tire life and improved fuel economy. Nitrogen can also better regulate tire pressure changes that occur with the change in temperatures throughout the year, so your Stang will be ready to roll no matter what season it is!

Application. This 20" Black Bullitt Wheel and Nitto Tire Kit fits 2005 to 2014 V6, GT and Bullitt Mustangs. Does not fit Shelby GT500 Mustangs.

Road Hazard Protection. AmericanMuscle is proud to offer an optional Road Hazard Tire Protection program to our customers who purchase a Wheel and Tire Package from us. With this program, you will receive a 3-Year/36 Month protection plan for changing of flat tires and flat tire repair.

36 Months of Protection. The Road Hazard Protection Program is good for 3-Years (36 Months) from the purchase date printed on the program certificate or until any part of the tire tread that comes in contact with the road has a tread depth of 2/32” or less, whichever comes first.

Flat Tire Changing Assistance. Enrolled customers are eligible for reimbursement of up to $75 for roadside flat changing assistance provided by a licensed service provider. This is limited to the roadside installation of the customer’s own usable spare tire. Customer must have a spare tire. The customer would pay the service provider for flat tire changing and then be reimbursed.

Flat Tire Repair. Enrolled customers are eligible for Flat Tire Repair up to $20 per tire. This repair would include labor and patch. Reimbursement is limited to two flat tire repair claims during the coverage terms of 3-Years/36 months. The customer would pay the service provider for flat tire repair and then be reimbursed.

Fitment: 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Details

Mounting & Balancing: AmericanMuscle offers professional mounting and balancing on all wheels and tires when purchased together on the same order for an additional fee. This will allow you to swap out your old wheels for your new set when they arrive. We even offer Free Nitrogen tire fill.

  • State of the Art On-Site Tire Facility
  • Scratch Free Mounting Process
  • Environmentally Friendly, Lead Free Wheel Weights
  • Free Optional Nitrogen Tire Fill
  • Free Installation of TPMS Sensors When Purchased on the Same Order (2007+ Mustangs)
  • 1 to 2 Business Day Turn Around Time on Most Orders

What is TPMS? The Tire Pressure Monitoring System (TPMS for short) is a factory installed safety feature on all 2007 and newer Ford Mustangs that alerts you when your tire pressure drops to an unsafe limit.

How do I keep my TPMS feature? Aftermarket wheels do not come with TPMS sensors. However, if you select 'Add TPMS Sensor Kit' and your specific year range from the options listed above, we'll install the TPMS Sensors in your new wheels free of charge!

  • Save Money! We sell TPMS Sensors and Sensor Kits at a fraction of the price of dealerships
  • Free Installation of TPMS Sensors When Purchased on the Same Wheel and Tire Order
  • Stay Safe - Keeps your Factory Safety Feature Intact
  • No More Warning Light - Lose the annoying dash light that appears when your sensors are missing

For more Information, check out TPMS Sensor Kits or TPMS Tool in detail.

What's in the Box
  • (4) Wheels
  • (4) Center Caps
  • (4) Tires
    Hardware included:
  • None Required
Installation Info
Tech Specs

Wheel Specifications:

Manufacturer: AmericanMuscle Wheels Style: Bullitt
Size: 20x8.5 / 20x10 Finish: Black
Placement: Front and Rear Centercap Size: Large (2-1/2")
Back Spacing: 6.2" (158mm) / 7.4" (187mm) Offset: +38mm (1.5") / +48mm (1.9")
Bolt Pattern: 5x4.5" (5x114.3mm) Weight: Front: 29.9 lbs / Rear: 30.6 lbs
Material: Aluminum Lip Size : 2.5" 3"
Best Tire : Year/Model: 05-14 V6, GT, Bullitt; Excluding Shelby GT500

Tire Specifications:

  • Hydroplaning Resistance: 8.6
  • Wet Traction: 8.5
  • Dry Traction: 9.4
  • Snow Traction: N/A
  • Ice Traction: N/A
  • Steering Response: 9.1
  • Cornering Stability: 9.1
  • Ride: 8.5
  • Noise: 8.3
  • Tread Wear: 8.3

KEY: 10-8.6 Oh Yeah!, 8.5-6.6 Above Average, 6.5-4.6 Average, 4.5-2.6 Acceptable, 2.5-0 Unacceptable

Will it fit my Mustang?
  • Boss 302 - 12, 13
  • V6 - 05, 06, 07, 08, 09, 10, 11, 12, 13, 14
  • Bullitt - 08, 09
  • GT - 05, 06, 07, 08, 09, 10, 11, 12, 13, 14

Does not fit Brembo equipped 2011-2014 Mustang GTs, BOSS 302, Shelby GT500 or Mustangs with an upgraded a Big Brake Kit

Most Helpful Reviews

5/5
Awesome

Deep dish bullit black wheels are awesome and easy to install. They look great on my 2008 mustang.

Helpful (1)

5/5
Deep Dish Bullitt Black 4 Wheel Kit - 20x8.5

tDeep Dish Bullitt Black 4 Wheel Kit - 20x8.5 . THESE RIMS TIRES LOOK AWESOME!! ON MY 2005 4.6L V8 MUSTANG GT. PLUS I ADDED 1' SPACERS ON THE REAR AND 5/16 FOR THE FRONT,PLUS CHROME ACORN LOG NUTS AND ...

Read More
Helpful (1)

Overall Rating 4.7 out of 5 stars
Read All 41 Reviews

Customer Photos (8) Submit Your Photo

View All 8 Photos

You Might Also Like

22 Questions / 5 Answers

Ask a Question

Am i able to swap the AM center cap for a tri-bar pony center cap that are on my stock 17 inch bullitt rims? I have bullitt rims stock for a mustang with the tri-bar pony center cap and love them...I just don't like how small they are and am wanting to trade up. I do, however, want to keep the center cap, as it is iconic for mustang bullitt rims. Anyone have any advice???

JamesC

Will these wheels and tires fit my 2011 gt without brembo breaks

Darrell

  • Hey Darrell, These wheels should fit your GT without a problem. Your fitment options are pretty much endless on all of our wheels 18-20"

    Cobra_Machine04

Helpful (0)

I just received a set of these with tires and am ready to install. What is the torque spec (foot lbs) for the lug nuts?

DougO

  • These wheels will be tightened to the stock torque specs.

    KevinD92

Helpful (0)

What is the difference between the staggared deep dish and regular deep dish bullit rims? How wide of a rear tire can i use in my 06 GT with and without the panhard bar relocation bracket? Thank you

SuperGT

  • Hello super GT, The only difference in the staggered deep dish and regular deep dish is that on the staggered set up the front wheels are 20x8.5 and the rears are 20x10. On the regular set up all four wheels are 20x8.5. As for width of the tire if you are using the 20x10 for the rear widest you'll want to go is a 305 on your 06GT. If you plan on a 20x8.5 for the rear you aren't going to want to go larger than a 275 on the tire.

    Cobra_Machine04

Helpful (0)

I have a 2006 V6. It has been lowered 1.6" front and 2" rear. Will this wheel with a 305/30R20 fit without any rubbing issues?

KJ

  • The tire may rub in the rear if you go over bumps or hit holes.

    AshleyK

Helpful (0)

If you don't use the TPMS valves and clear the low pressure lights from the car how long will they stay clear

Anonymous

  • The only way to clear the light permanently would be to install the TPMS sensors and have them properly synced to the vehicle.

    pserafi

Helpful (0)

More Products You Might Like

Customer Reviews (50) Write a Review

Overall Rating 4.7

out of 5 stars

Installation Time:Afternoon

Installation Cost:0-$100

  • Finish 4.861405 4.9
  • Appearance 4.952048 5.0
  • Quality 4.674859 4.7
  • Bang For Your Buck 4.800858 4.8



  • 5/5

    Installation Time: Less than 1 Hour

    February 21, 2017

    Review from Deep Dish Bullitt Black Wheel - 20x8.5 (05-14 V6; 05-10 GT)

    Awesome

    Deep dish bullit black wheels are awesome and easy to install. They look great on my 2008 mustang.

    MartinO

    Year: 2008 Submodel: V6

    Helpful (1)

  • 5/5

    Installation Time: Less than 1 Hour

    November 30, 2016

    Review from Deep Dish Bullitt Black 4 Wheel Kit - 20x8.5 (05-14 V6; 05-10 GT)

    Deep Dish Bullitt Black 4 Wheel Kit - 20x8.5

    tDeep Dish Bullitt Black 4 Wheel Kit - 20x8.5 . THESE RIMS TIRES LOOK AWESOME!! ON MY 2005 4.6L V8 MUSTANG GT. PLUS I ADDED 1' SPACERS ON THE REAR AND 5/16 FOR THE FRONT,PLUS CHROME ACORN LOG NUTS AND LOCKS. THANK YOU AMERICAN MUSCLE.COM FOR ALL OFMY MODS AND UPGRADES. I'LL GIVE YOU, 5 STARS.....

    MICHAEL

    Year: 2005 Submodel: GT

    Helpful (1)

  • 5/5

    Installation Time: Shop Install

    Installation Cost: 0-$100

    November 01, 2016

    Review from Staggered Deep Dish Bullitt Black 4 Wheel - 20x8.5/10 (05-14 V6; 05-10 GT)

    20x8.5 F 20x10 R

    Looks awesome 10" rear's 8.5" fronts and clears caliper covers.

    MaikoSTANG

    Year: 2007 Submodel: GT

    Helpful (1)

  • 4/5

    Installation Time: Less than 1 Hour

    October 21, 2016

    Review from Staggered Deep Dish Bullitt Black Wheel & Mickey Thompson Tire Kit - 20x8.5/10 (05-14 V6; 05-10 GT)

    Great wheels

    I love these wheels and tires every place I go someone always says how nice they are. The only reason I give them 4 stars is because they sent different center caps for the 10" wheels

    ManteoNC

    Year: 2005 Submodel: GT

    Helpful (1)

  • 5/5

    March 25, 2016

    Review from Staggered Deep Dish Bullitt Black Wheel & Mickey Thompson Tire Kit - 20x8.5/10 (05-14 V6; 05-10 GT)

    Awesome

    These rims and tires fit my 07 Mustang great. I could not be any happier with my purchase.

    3vReaper

    Year: 2007 Submodel: GT

    Helpful (1)

  • 5/5

    Installation Time: Less than 1 Hour

    October 01, 2012

    Review from Bullitt Black Wheel & NITTO Tire Kit - 20x8.5 (05-14 V6; 05-10 GT)

    Great Wheels

    I love the Wheels the finish is great. I only had to minor issues one was there was a lack of coating in around the lugs and if you look dead on at the wheel you can see it and I bought the recommended Black lug nuts and what a waste of money. The finish was poor and chipped of as soon as a wrench touched it. Im glad I live in the desert or I would have rusty new lug nuts on my new rims within a week.

    v6Scooter

    Year: 2006 Submodel: V6

    Helpful (1)

  • 5/5

    March 06, 2011

    Review from Deep Dish Bullitt Black Wheel - 20x10 (05-14 All, Excluding GT500)

    Great looking wheel

    The 20x10 DD wheel really makes the car look so much better, definitely fills up the wheel wells and gives the car a meaner look while also improving handling. I put 20x8.5's on the front with a 5/16" spacer to clear the factory brakes.

    Jason B.

    Year: 2011 Submodel: GT

    Helpful (1)

  • 5/5

    January 11, 2010

    Review from Deep Dish Bullitt Black Wheel - 20x10 (05-14 All, Excluding GT500)

    just look

    As you can see from my picture (the black 05 GT with red callipers). They just make the car the car. They made a huge difference in the performance and looks. I put 20x8.5 up front and 20x10 in the rear wraped in Nitto 555's. Just have to say love this site!

    Nick Vaughan

    Year: 2005 Submodel: GT

    Helpful (10)

  • 5/5

    July 31, 2008

    Review from Deep Dish Bullitt Black Wheel - 20x10 (05-14 All, Excluding GT500)

    awesome!

    I have had them on for a few months now, get so many compliments... I had stoptech brakes for the front and had to buy spacers and 2 inch wheel studs to make the fronts fit, so be careful and aware if you have aftermarket brakes. 20x8.5 in front and 20x10 in back. Bought eibach pro kit springs and MM CC plates, makes the car look great and handle 10 times better! Money well spent

    Robby

    Helpful (8)

  • 5/5

    April 27, 2011

    Review from Deep Dish Bullitt Black Wheel - 20x8.5 (05-14 V6; 05-10 GT)

    Strong, Sharp, Eye Catching

    I've had these rims for a couple years now. The finish is just as glossy as when they were new. I always get people on the street telling me how good they look. Great wheels.

    Steve

    Year: 2005 Submodel: GT

    Helpful (2)

  • 5/5

    March 16, 2010

    Review from Deep Dish Bullitt Black Wheel - 20x8.5 (05-14 V6; 05-10 GT)

    great look

    This 20x8.5 rims really change the look on my pony. Looks more agressive. Really great product!

    David Martinez

    Helpful (2)

  • 5/5

    September 26, 2009

    Review from Deep Dish Bullitt Black Wheel - 20x8.5 (05-14 V6; 05-10 GT)

    20in DD Bullitts

    Bought these 20x8.5in DD Bullitts, and get all sorts of looks! Everyone has loved them and i personally couldn't be happier!! I replaced the stock center caps with the "281" caps (unfortunately they are not in the pictures). With the Nitto 555's, looks great, hooks great and very responsive.

    Robert Kechejian aka RetroGT2006

    Helpful (2)

  • 5/5

    March 11, 2008

    Review from Deep Dish Bullitt Black Wheel - 20x8.5 (05-14 V6; 05-10 GT)

    black deep dish bullitt wheel

    The wheel is great.

    joe

    Helpful (2)

  • 5/5

    Installation Time: Shop Install

    Installation Cost: 0-$100

    April 26, 2016

    Review from Staggered Deep Dish Bullitt Black 4 Wheel - 20x8.5/10 (05-14 V6; 05-10 GT)

    Beautiful Wheels

    Tjese are some amazing rims. Not what i would call deep dish, more like 1-2 inch lip on a staggered setup. Classic look. Put the rear set in the back seat and fron in front seat. Drove to discoumt tire and had them put on in about an hr. Next is the, flush mount valve stems and nitro fill.

    Jon

    Year: 2007 Submodel: GT

    Helpful (1)

  • 5/5

    Installation Time: Less than 1 Hour

    April 08, 2016

    Review from Deep Dish Bullitt Black Wheel - 20x10 (05-14 All, Excluding GT500)

    Pure perfection

    For what you are getting and how much you are paying there's no doubt you wont get it better anywhere else. Perfect description of what i was looking for. Those mags look so good on tge car especially with the car lowered.

    Jeyk

    Year: 2005 Submodel: GT

    Helpful (1)

  • 5/5

    Installation Time: Less than 1 Hour

    April 07, 2016

    Review from Deep Dish Bullitt Black Wheel - 20x10 (05-14 All, Excluding GT500)

    Love 'em!!!

    These are great rims at a great price! They really fill my wheelwells perfectly. I don't have a drop but I am running 315/35/20 and they are PERFECT, no rubbing and look badass.

    Carson

    Year: 2006 Submodel: V6

    Helpful (1)

  • 5/5

    November 16, 2015

    Review from Staggered Deep Dish Bullitt Black Wheel & Mickey Thompson Tire Kit - 20x8.5/10 (05-14 V6; 05-10 GT)

    20" Bullits Rock!

    This is my second set of black center Bulit wheels from AM. My first was in 18's and love the look and being easy to keep clean is a bonus! This order was for 20's in staggered and they look perfect. Shipping to Hawaii was ridiculous but AM has exactly what I wants. Shipping was quite fast so I'm happy.

    tacoturbo

    Year: 2005 Submodel: GT Kauai, Hawaii

    Helpful (1)

  • 4/5

    Installation Time: Less than 1 Hour

    March 23, 2015

    Review from Staggered Bullitt Black Wheel & NITTO Tire Kit - 20x8.5/10 (05-14 V6; 05-10 GT)

    Looks great, ride great, but those centercaps...

    So these wheels, as many others have pointed out, are fantastic. Had em on for two days, and compliments and "wow"s from everyone that sees em. Only two negatives are the thickness on the black finish, and the center cap support. The paint on the wheels is a fairly low hardness and VERY susceptible to scratches and rubs. Personally, I would have taken a gloss powder-coat all day long over the paint. But that's not a finish option from the manufacturer (obviously). The second issue was the center caps! As other have pointed out, for some reason, most of American Muscle's wheel options (I assume they are from China vendors) have opted for a completely different center cap mounting design (clip vs. spring). This is great, the provided caps fit fine, but it SEVERELY hinders the availability of caps you can use. YOU HAVE to have the clip style caps, and sadly, almost no one makes them, let alone in good styles. At the very least, I would suggest that American Muscle create a fitment chart that shows what current stock caps fit on which current stock wheels, or at least list which style caps are which on the cap pages. Would make shopping easier and also eliminate the need for customers to ask questions. Other than the major issue of the caps, this set made the car feel new again, eliminated some road shakes my old 555's were having, and the the style (even though we have limited options and a lot of people are using em) is still pretty nice.

    Mintondm

    Year: 2006 Submodel: GT Cherry Hill, NJ

    Helpful (1)

  • 5/5

    Installation Time: Less than 1 Hour

    February 27, 2015

    These rims look amazing and fit like a glove

    Great looking rims. I use these for my summer rims and they look and ride amazing. The staggered look is so much more aggressive looking,

    hockeygod1225

    Year: 2010 Submodel: GT JOHNSTON, RI

    Helpful (1)

  • 5/5

    March 04, 2011

    Review from Deep Dish Bullitt Black Wheel - 20x8.5 (05-14 V6; 05-10 GT)

    will work on 2011 GT with spacer

    As noted on AM's product page it says this the 20x8.5 wheel will not clear the factory non-brembo brakes, however I used a 5/16" spacer on the front and the wheel cleaed afterwards. So in short you can use a spacer and the wheels will work on 2011+ GT's. Great looking wheel as well.

    J. Blum

    Year: 2011 Submodel: GT

    Helpful (1)
