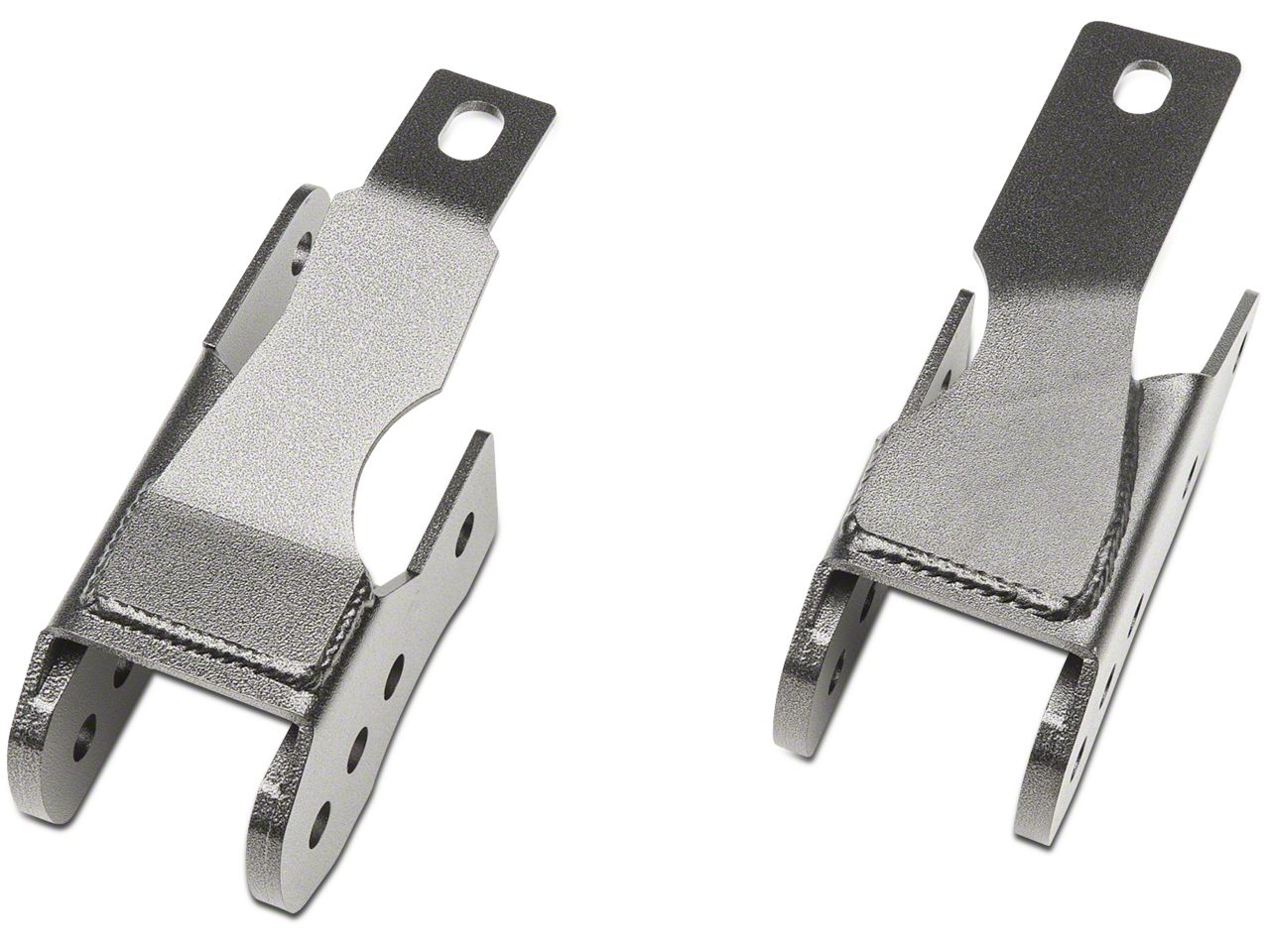

BMR Rear Lower Control Arm Relocation Brackets (05-14 All)

Market Price $139.99 You Save 14% ($20.04)

$119.95

FREE Shipping
  • Item 49602
  • MPN# CAB005H

In Stock Ships same business day. Choose options to add to cart

Features, Video & Details

  • Corrects Suspension Geometry for Improved Traction
  • Made from 3/16" Thick Steel Plate
  • Bolt-On Design
  • Black Hammer-Tone Powder Coat Finish
  • Fits 2005-2014 V6, GT, Bullitt and GT500

Review & Installation Video

Review & Install Video

Improves Traction. Correct the suspension geometry of your S197 Mustang with BMR Suspensions Control Arm Relocation Brackets to improve drag strip traction and handling traction exiting turns. The perfect addition to a set of BMR Rear Lower Control Arms

Quality Construction. Made in the USA from 3/16" CNC laser cut steel plate for strength these Relocation Brackets are completed with a long-lasting black hammer-tone powdercoat finish, and are designed to be an easy bolt-on using existing mounting holes, no welding or drilling is required.

Application. This pair of BMR Rear Lower Control Arm Relocation Brackets are designed as a direct bolt-on upgrade for all 2005 to 2014 Mustangs, including the V6, GT, Bullitt, and Shelby GT500 models equipped with BMR Suspension Rear Lower Control Arms.

Technical Note. When installing with stock factory rear lower control arms, modifications may be necessary to position control arms in upper mounting positions.

Fitment: 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Details

What's in the Box
  • (2) Relocation Brackets
  • (4) Long Bolts
  • (3) Short Bolts
  • (2) Sleeves
  • (5) Nuts
  • (1) Washer
  • (1) Spacer
Installation Info
Will it fit my Mustang?
  • Boss 302 - 12, 13
  • V6 - 05, 06, 07, 08, 09, 10, 11, 12, 13, 14
  • Bullitt - 08, 09
  • GT - 05, 06, 07, 08, 09, 10, 11, 12, 13, 14
  • GT500 - 07, 08, 09, 10, 11, 12, 13, 14

Most Helpful Reviews

5/5

great mod for lowered cars

BMR's products always fit well and are high quality. And they do their job quite well too. if your car is lowered you'll benefit from this product and a adjustable upper control arm to keep the suspensions ...

Read More
Helpful (1)

5/5
Bmr lower relocation bracket

These are great for a lowered car. My car had binding in the rear suspension but after I installed these no binding. These are a must have for a lowered car. They worked well with stock or my hotchkis ...

Read More
Helpful (1)

Overall Rating 4.8 out of 5 stars
Read All 49 Reviews

Customer Photos (22) Submit Your Photo

View All 22 Photos

You Might Also Like

9 Questions / 10 Answers

Ask a Question

Can I use these with steeda lca? I have steeda tubular lca and I was wondering if I'd be able to use the relocation brackets?

BREWSKIE985

  • Yes

    John2f

    Good Answer (0) (0)

Show 1 more answer Answer This Question I need this answered (0) (0)

Relocation bracket hangs down over 2" - any clearance issues? We are installing the lower control arms today and I purchased the relocation bracket. Ford is telling me that if they use the relocation bracket, the bracket itself will hang down 2 - 3 inches, about the same height as the wheel rim. That means that you only have about 3 - 4 inches of clearance under your car. Anyone have any issues with speed bumps or hitting anything else? I'm thinking of not using these and returning them.

SwitchbladeHD

  • The relocation brackets are attached at the axle center, meaning that they travel up and down with the axle and wheel, so speed-bumps should not be an issue. However, I have heard of cases where automatic car washes can be an issue where the guiding track is concerned - since the wheel rides "inside" the track, allowing the "track edge" to hit the relocation bracket in some cases.

    SatinStanced

    Good Answer (3) (0)

Show 1 more answer Answer This Question I need this answered (0) (0)

instructions Do these come with installation instructions? I am looking at an entire bmr control arm setup but have no experience in setting everything up.

Famine

  • The installation insructions come with the brackets and are easy to understand. With the proper tools, which are listed on the instructions, you should be looking at about 30-45 minutes per side - giving a few extra minutes if you are installing adjustable LCA's.

    SatinStanced

    Good Answer (0) (0)

Answer This Question I need this answered (0) (0)

Adjustable LCA's required? I have H&R lowering springs and J&M Extreme LCA's...my LCA's are now angled badly in the wrong direction so I need these brackets badly. My question is...will I need adjustable LCA's to use these brackets? Thanks!

Daxel

  • No. But depending on how much you've lowered it, you may need an adjustable upper control arm to reset your pinion angle. I have the bmr brackets and fixed length lca's set in the bottom mounting hole and they're awesome. It hooks amazing.

    Jriley

    Good Answer (0) (0)

Show 2 more answers Question Resolved

I'm a bit confused. Are Lower Control Arm Relocation brackets still necessary on a lowered mustang if you have Adjustable Rear Upper Control Arms?

k1DBLITZ

  • Well, the adjustable rear UCA and the rear LCA relocation brackets serve to correct two separate angles in the rear suspension geometry. One does not substitute for the other. When you lower your mustang you essentially compress (jounce) the rear suspension, positioning the axle up closer to the chassis. Control arms and driveshaft flex/pivot up with the axle, placing them at an unfavorable angle. An adjustable rear UCA allows for correction of the pinion angle after lowering your mustang while also adding strength and rigidity. Pinion angle is critical to driveshaft operation. The rear LCA relocation brackets correct the LCA angle (geometry) so that your rear axle will not be prone to "axle wrap" or twisting of the rear axle under heavy torque. The lower you drop your mustang's suspension, the more both of these modifications are necessitated to maintain the best level of performance and rigidity.

    NJCoyoteKid

    Good Answer (0) (0)

Answer This Question I need this answered (0) (0)

Will the BMR rear lower control arm relocation brackets work with the SR performance non adjustable lower control arms?

Honn735

  • Hello, the BMR Rear Lower Control Arm Relocation Brackets (05-14 All) will only work with BMR Suspension Rear Lower Control Arms.

    JeffAM

    Good Answer (0) (0)

Answer This Question I need this answered (0) (0)

More Products You Might Like

Customer Reviews (49) Write a Review

Overall Rating 4.8

out of 5 stars

Installation Time:Afternoon

Installation Cost:0-$100

  • Handling Improvement 4.674418 4.7
  • Fit 4.558139 4.6
  • Bang For Your Buck 4.744186 4.7



  • 5/5

    July 07, 2016

    Bmr lower relocation bracket

    These are great for a lowered car. My car had binding in the rear suspension but after I installed these no binding. These are a must have for a lowered car. They worked well with stock or my hotchkis rear bars.

    Michael

    Year: 2013 Submodel: GT

    Helpful (1) (0)

  • 5/5

    Installation Time: Afternoon

    September 10, 2013

    great mod for lowered cars

    BMR's products always fit well and are high quality. And they do their job quite well too. if your car is lowered you'll benefit from this product and a adjustable upper control arm to keep the suspensions geometry in check!

    LOUISSIUOL

    Year: 2011 Submodel: GT pa

    Helpful (1) (0)

  • 5/5

    Installation Time: Afternoon

    April 01, 2012

    Big improvement over stock!

    These brackets are very solid and made to support high HP/TQ applications. Also, they are great for correcting the geometry of your suspension by re-positioning the LCA's and almost a must on lowered applications. Install was somewhat involved as getting certain bolts into the brackets is not very easy. I would honestly suggest having the brackets installed professionally after having done the install myself. Note, I did not re-use the stock "weight dampers" as I don't think they are necessary after all of my upgrades (much more than just brackets). Very pleased with these brackets and highly recommend them!

    bakerjd

    Year: 2006 Submodel: GT Ohio

    Helpful (4) (0)

  • 5/5

    Installation Time: Afternoon

    September 17, 2012

    Excellent fit

    I have the Steeda Lca relo brackets on a different axle. Thr geometry of these seems to make a more secure mount and no need for welding. I favor them over the competition.

    Masmd

    Year: 2005 Submodel: GT Va

    Helpful (2) (0)

  • 5/5

    Installation Time: Less than 1 Hour

    September 30, 2012

    Great Brackets but a issue with car washes

    I ordered the BMR Rear Lower Control Arms with Polyurethane Bushings and BMR Rear Lower Control Arm Relocation Brackets. I also installed BMR Upper Control Arm with On-car Adjustable and Polyurethane Bushings. My goal was to stop wheel hop and help with the wheels spinning at the track. The combination of the BMR productions did stop wheel hop and help with traction. The Install of the relocation brackets was pretty easy and the brackets fit perfectly. My only issue with the relocation brackets is ground clearance in gas station car washes. I went to a car wash at a Bucky‚Äôs BP station and the bracket hit the tire guide rail. I pulled in about 10 feet into the car wash and heard a nasty scraping noise and my car came to an abrupt stop. I slowly backed out of the car wash once I made it out I could see scrap marks on the top of the guide rail. I looked under the car and the driver side bracket looked fine other then the bare metal showing on the bottom of the bracket. I ended up taking the brackets off and will have to cut at least a 1 ½ off the bottom of the bracket so my car will clear the car wash tire guide rail. I would still highly recommend the bracket but just be warned clearance in gas station car washes could be an issue.

    Coyete5

    Year: 2012 Submodel: GT Omaha, NE, USA

    Helpful (4) (2)

  • 5/5

    Installation Time: Afternoon

    September 01, 2014

    BMR rocks!

    Installed on my 2012 Boss. I had previously lowered and installed upper and lower control arms. It made the rear end kind of harsh and I could tell something was just not right. Installation of the relocation brackets was simple and straightforward. The fit was perfect and the only trouble I had was getting the car up high enough afterwards to check the pinion angle. Went for a test drive and WOW! My suspension issues are resolved! The car launches better, is much more sure-footed in the corners, and is so much more smooth... If you've lowered your Mustang, these LCA relocation brackets are a must! Corrects poor suspension geometry and as a bonus, are great looking too. BMR is the best!

    Mitch2489

    Year: 2012 Submodel: Boss TN

    Helpful (1) (0)

  • 5/5

    Installation Time: Afternoon

    June 26, 2014

    Incredible Difference!

    I installed these along with the Eibach Pro Adjustable LCA's due to my GT already being lowered. The install was easy, and taking my time it took me about 3 hours total.(including the LCA's). This install of the LCA's was a little tricky due to the installation of the relocation brackets, as the length of the LCA will need to be slightly adjusted depending upon which relocation bracket mounting hole is used, as the LCA will move in an arc and will need to be lengthened or shortened depending on the mounting hole used. After the install the car handles much better and wheel-hop is completely eliminated, and cornering is much improved via changing the roll-steer effect.

    SatinStanced

    Year: 2007 Submodel: GT Dalton, GA, USA

    Helpful (1) (0)

  • 5/5

    Installation Time: Afternoon

    August 27, 2012

    Good fit and simple install

    After much research I purchased these when I lowered my car , I can promise you without them my lca location would not have been right. They are very rigid and easy to install. Only problem Is there are no location suggestions in the instructions as there are 3 mounting locations to choose from. I had to do some more research before I chose which mounting location as it was on the weekend or I just would have called bmr.

    Injfuel

    Year: 2012 Submodel: GT Columbus, OH, USA

    Helpful (1) (0)

  • 4/5

    Installation Time: Less than 1 Hour

    August 20, 2012

    A must have on your s197

    Would recommend this product.If you are looking to get better traction than this is a must,After install them my car hook be for it just spin and i would have to get out of it.So if traction is what you want buy this product

    Scotty43

    Year: 2006 Submodel: GT Philadelphia, PA, USA

    Helpful (1) (0)

  • 5/5

    Installation Time: Less than 1 Hour

    May 26, 2012

    Great product

    Put the geometry back how it needs to be on a lowered gt500, now it really hooks up. A lot less tire spine.

    James33

    Year: 2008 Submodel: GT500 Santa Maria ca

    Helpful (1) (0)

  • 4/5

    Installation Time: Afternoon

    April 29, 2012

    BMR is a very good way to remove squat out of the go

    After researching rear LCA relocation. I thought to give BMR a try. It was an expensive way to get rid of the squat out of the go. Since I got a decent discount from AM I also bought JM rear LCA and installed them the same day. I figure if the new Boss mustang had relocated the LCA (with a bolt on) also upgraded the rear LCA that it was worth the try. BMR did a great job on the fitment. All the hardware came with it. There were no issues in the fitment. If you are going to attempt this install DIY. To get the LCA to line up it took a second person. One pushed and the other pulled, working one side at a time with both wheels off the ground. Also remember when torquing the BMR bracket up to tighten the wieght balancers first. It fits tight. After setting the LCA in the top hole, my 2011 GT has no squat in the go!!! There's no binding in the suspension or steering issues. I managed a 2nd gear burn out without using the brakes. But I have noticed that the stock manual transmission has gotten a little louder. But shifting isn't an issues. Small price to pay for performance.

    Will2IAm

    Year: 2011 Submodel: GT Fletcher, NC

    Helpful (1) (0)

  • 5/5

    Installation Time: Afternoon

    July 27, 2012

    BMR has a solid product in their LCA relocation brackets

    Recently received my BMR brackets.They are well constructed and feel very sturdy. Fitment was perfect, all hardware was supplied, and the instructions were relatively easy to understand. I installed them on my 2013 GT with some new LCA's in about an hour and a half with the car on a lift. Unless your Mister Universe, you'll need help to realign the rear axle with the control arms. I used a ratchet strap attached to the axle in the rear and a cross brace in the middle of the car to pull the axle forward. You need some sockets & wrenches (18mm and 22mm), and a torque wrench (capable of 129 ft.lbs) for final tightening. Haven't got to the track yet to compare 60ft. times, but the improved geometry makes the rear end feel more connected with the road at launch and in the corners. I recommend these based on ease of install, quality construction/appearance, and a fair price.

    BlockIsHot

    Year: 2013 Submodel: GT Marlton, Evesham Township, NJ, USA

    Helpful (1) (1)

  • 4/5

    Installation Time: Afternoon

    September 18, 2012

    Hooks up nicely

    Didn't know what to expect as I didn't want it for drag racing and with Roush suspension package wasn't sure what affect it would have. I used the top mounting hole with new BMR LCA Poly bushings and now the angle of my LCA's are angled up slightly from axle to body. Car is much more stable and hooks up nicely from a dead stop to exiting corners as well. Install was ok, but my driver side needed slight enlargement of the top hole to allow the bolt to thread into the opening. Aftermarket parts can require slight mods. Dont plan on welding for now as they seem fairly stout and my car is only 420hp at the wheels.

    JimV

    Year: 2007 Submodel: GT Las Vegas

    Helpful (0) (2)

  • 4/5

    Installation Time: Afternoon

    August 07, 2013

    Car hooks up great but....

    I installed these along with LCA's and the driver side went together no problem. But then when going to put the passenger side together I couldn't get one hole to line up. No matter how much I tried to pry or put the bolts in different order, I just couldn't get that one bolt in. It was the bolt hole for the axle weight. If I had a die grinder and compressor then I would have slotted the hole. Oh well. It was just a minor manufacturing flaw. I finally ended up getting a bolt in just enough to cross-thread so I cranked it down. It's my daily driver and I had to get it back together. I'll have to get the tools and fix it right eventually. At least I know the bolt isn't going anywhere. Other than that problem I'd still recommend them. The car hooks and goes straight. It doesn't spin out all over the place now. I guess I happened to get a bad bracket. But it's done now so I'll deal with it. Overall though I love the way it handles!

    Jriley

    Year: 2012 Submodel: GT Fort Worth, TX, USA

    Helpful (0) (4)

  • 5/5

    Installation Time: Afternoon

    October 28, 2016

    Helpful After Lowering

    I drove my 07 GT on P Springs (1" drop), orange Koni's and BMR rear upper and rear lower control arms (and some other stuff) WITHOUT these relocation brackets for about 15,000 miles and the car handled great. The rear lower control arms were angled slightly upwards. I installed these and used the highest (least extreme) setting so that the rear lower control arms are now angled downward as they should be. The handling difference is modest and slightly noticeable but the car does feel a little more stable now. I do not regret installing these and would do it again. The product has great quality, inexpensive (relative to other mods) and installed about 3 hours in my driveway with jack stands. For these reasons, I give the product 5 stars.

    Kevin

    Year: 2007 Submodel: GT

    Helpful (0) (0)

  • 5/5

    October 11, 2016

    Great product!

    Very well made product! You just can't go wrong with BMR. The fit was perfect and the install is was fairly easy. The car hooks a lot better you can actually feel a big difference in front end of the car coming up when you get into it which is why it hooks better, the weight is transferred to the rear like it should be. If your Mustang is lowered these relocation brackets are a must!

    Jeff

    Year: 2005 Submodel: GT

    Helpful (0) (0)

  • 5/5

    August 22, 2016

    Worth While Upgrade!

    So I will start off and say you will also need drill, and a strap to pull back on the axle if you don't have adjustable LCA. With that said. The Passenger side on the 11 doesn't line up with the axle weight. you have to drill out the hole to make it larger. With all that above its well worth it! BMR should change the passenger side axle weight hole location and make it larger. Good mod! Hooks like crazy

    FasterthenyourVette

    Year: 2013 Submodel: GT

    Helpful (0) (0)

  • 5/5

    August 10, 2016

    Looks great and no welding required

    Looks great and no welding required. Drop shipped from BMR and received quickly. Thanks again!

    Unjustified

    Year: 2008 Submodel: GT500

    Helpful (0) (0)

  • 5/5

    August 09, 2016

    Great Product

    Great build quality with nice welds. Install is straight forward. Very effective part on lowered cars.

    JRun

    Year: 2012 Submodel: GT500

    Helpful (0) (0)

  • 5/5

    July 05, 2016

    BMR LCA Relocation Brackets

    Installed these on my 2011 GT. Install was very straightforward, took about 3 hours all said and done. Package was missing one bolt that is used to ditch the axle weights, e-mailed BMR directly and they're shipping one out priority mail. Can't beat service like that! Would definitely buy BMR suspension products again. Jake

    Jake

    Year: 2011 Submodel: GT

    Helpful (0) (0)
