Cervini's Mustang Pedestal Wing Installation Guide (2005+)

The below installation instructions work for the following products:

• Ford Mustang Cervini's Rear Wing Replacement

Here at American Muscle, we're all about DIY (do it yourself). Of course, there's nothing wrong with seeking out a little bit of tech help prior to taking on an installation on your own. Our Mustang installation guides will provide valuable instructions and hopefully answer any how-to questions that you may have along the way.

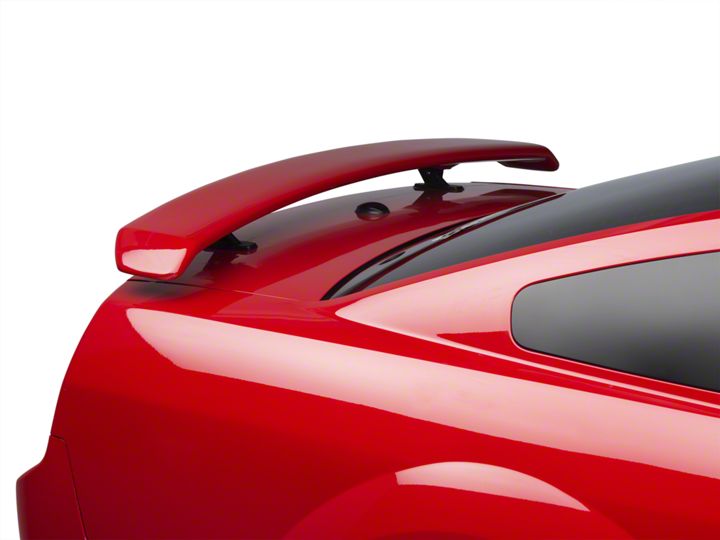

The following instructions are for the installation of the Cervini's Mustang Pedestal Wing for 2005+ S197 Mustangs.

(Right Click, Save Target As)

• Pre-fit before painting. Install new, unpainted parts according to these instructions. Then remove parts, paint them and re-install. Painted or Altered Parts are Non-Refundable.
• DO NOT fill in vent holes on the underside of the wing.
• DO NOT blow air into vent holes, it will damage the part.
• The flat washers MUST be used in conjunction with the bolts when attaching the wing.
• This pedestal wing can be installed by itself as a factory replacement wing or along with part # 4325 rear extensions.

Installation:

1. Remove the factory wing. Assemble the pedestals onto the wing as shown in Fig. A.





2. Mount the wing along with the pedestal gaskets to the trunk with one bolt in each side. (thread the bolt through the rear hole of the trunk and into the rear thread of the pedestal).



3. Tape the gasket to the trunk as shown in Fig. B, then remove the bolts and the wing from the trunk.





4. This gasket is now your template for drilling the other hole for mounting the wing as shown in Fig. C.





5. Once the hole has been drilled install the wing with the bolts and washers to the trunk.



6. Install the threaded knob through the center of the speedster cover and into the speed nut that is already installed on the speedster cover. Snap the center piece to the bottom front of the speedster covers.

Installation instructions provided by Cervini's Auto Designs
