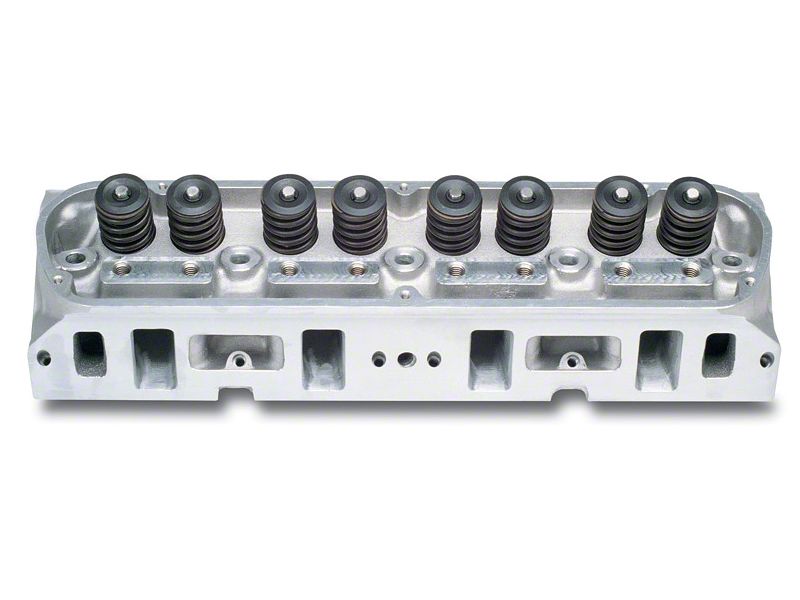

Edelbrock Performer Cylinder Head - 1.90 Valve (82-95 5.0L)

Edelbrock Performer Cylinder Head - 1.90 Valve (82-95 5.0L)
Click to Enlarge
Email
OUR PRICE$624.99(each)
Edelbrock Mustang Parts
Item # 56520
Market Price $774.99You Save 19% ($150.00)
Ships the same business day

Product Features

  • Outstanding bolt-on performance
  • Improves horsepower and torque
  • Fits 1982-1995 5.0L and 5.8L V8s
  • Sold individually
  • Made In USA
More Power. An Edelbrock Performer Aluminum Head is perfect for your daily driven or street Mustang for more power and better throttle response from idle to 5500 rpm range.

Features. This Performer Aluminum Head is made in the USA and features threaded inserts in rocker studs and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides.

Application. The Edelbrock Performer Aluminum Head is designed to be a direct bolt-on for 1982 to 1995 5.0L and 5.8L Ford V8 engines.

Technical Notes. 1986 5.0L need pistons notched for clearance. Will not accept rail rockers. 5.0L requires Head Bolt Bushings #9680 and either Head Bolt Kit #8552 (7/16") or stock head bolts. Match with Edelbrock head gasket sets. Recommended spark plugs 14mm x 3/4" reach with flat gasket seat.

Specifications:
  • Combustion chamber volume - 60cc
  • Intake runner volume - 170cc
  • Exhaust runner volume - 60cc
  • Intake valve diameter - 1.90"
  • Exhaust valve diameter - 1.60"
  • Valve stem diameter - 11/32"
  • Valve guides - Manganese bronze
  • Deck thickness - 5/8"
  • Valve spring diameter - 1.46"
  • Valve spring maximum lift - .575"
  • Guideplate - Hardended steel
  • Pushrod diameter - 5/16"
  • Valve angle - 20
  • Exhaust port location - Stock
  • Spark plug fitment - 14mm x 3/4 reach, gasket seat

Installation Time:

(approx) a Day

Difficulty Level:

Mechanical expertise or professional installation required.

What's in the box?

  • (1) Cylinder head

What's in the box?

  • (1) Cylinder head
checkmark
Fitment:
  • GT 94, 95
  • Cobra 94, 95
  • Foxbody 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93

About Edelbrock

Edelbrock Mustang Parts
Founded in 1938, Torrance-based Edelbrock, LLC is recognized as one of the nations premier designers, manufacturers and distributors of performance replacement parts for the automotive and motorcycle aftermarkets. Edelbrock produces their core products in the United States of America using state-of-the-art equipment in their world class manufacturing facilities. Edelbrock, LLC encompasses six locations in Southern California totaling more than 500,000 square feet.
