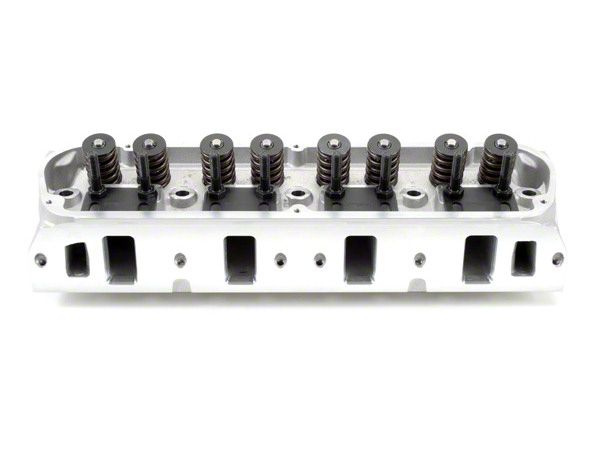

Edelbrock E-Street Cylinder Heads; 1.90 Valve (86-95 5.0L Mustang)

Find parts that fit my vehicle Item 56537
Shop Owners Save More! Sign up for our dealer program

    Product Information

    Features, Description, Reviews, Q&A, Specs & Installation

    Features

    • Bolt-on street performance upgrade
    • Improves horsepower and torque
    • A356 aluminum heat treated to T-6 spec
    • Sold in pairs
    • Fits 1986-1995 5.0L V8s
    • Made In USA

    Description

    Entry-level. Edelbrock has designed their new E-Street cylinder heads for entry-level street performance engines, making them perfect for operating from the idle to 5,500 rpm range on 1986 to 1995 5.0L V8 Mustangs.

    More Power. Using a modern combustion chamber design that improves the combustion process, these Edelbrock heads have larger than stock intake and exhaust ports to move more air to produce more horsepower and torque.

    Made In The USA. Edelbrock manufactures their heads right here in the USA from A356 aluminum castings that are heat treated to T-6 spec for superior casting strength and quality.

    Application. The Edelbrock E-Street Aluminum Cylinder Heads are designed to be a direct bolt-on for 1986 to 1995 5.0L Ford V8 engines.

    Technical Notes. Use with Hydraulic Flat Tappet Camshafts .550" max lift. (NOT compatible with Hydraulic Roller Camshafts) Recommended spark plugs 14mm x 3/4" reach with flat gasket seat. Requires hardened pushrods. 289-302 cid with 7/16" head bolts requires #9680 head bolt bushing kit. 1.90" heads are ideal for stock pistons.

    Edelbrock 5023

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Install Details & What's in the Box

    Installation Info

    What's in the Box

    • (2) Cylinder heads

    Tech Specs

    Specifications:
    • Combustion chamber volume - 60cc
    • Intake runner volume - 170cc
    • Exhaust runner volume - 60cc
    • Intake valve diameter - 1.90"
    • Exhaust valve diameter - 1.60"
    • Valve stem diameter - N/A
    • Valve guides - Manganese bronze
    • Deck thickness - 5/8"
    • Valve spring diameter - 1.25"
    • Valve spring maximum lift - 0.550"
    • Rocker stud - 3/8" with guide plate
    • Guideplate - Hardended steel
    • Pushrod diameter - 5/16"
    • Valve angle - N/A
    • Exhaust port location - Stock
    • Spark plug fitment - 14mm x 3/4 reach, gasket seat
    5.0

    Customer Reviews (2)

    Questions & Answers

    No questions about this product yet. Ask the First Question

    Will It Fit My Mustang

    • Cobra - 93, 94, 95
    • Cobra R - 93
    • GT - 87, 88, 89, 90, 91, 92, 93, 94, 95
    • LX - 87, 88, 89, 90, 91, 92, 93
    • Other - 86
