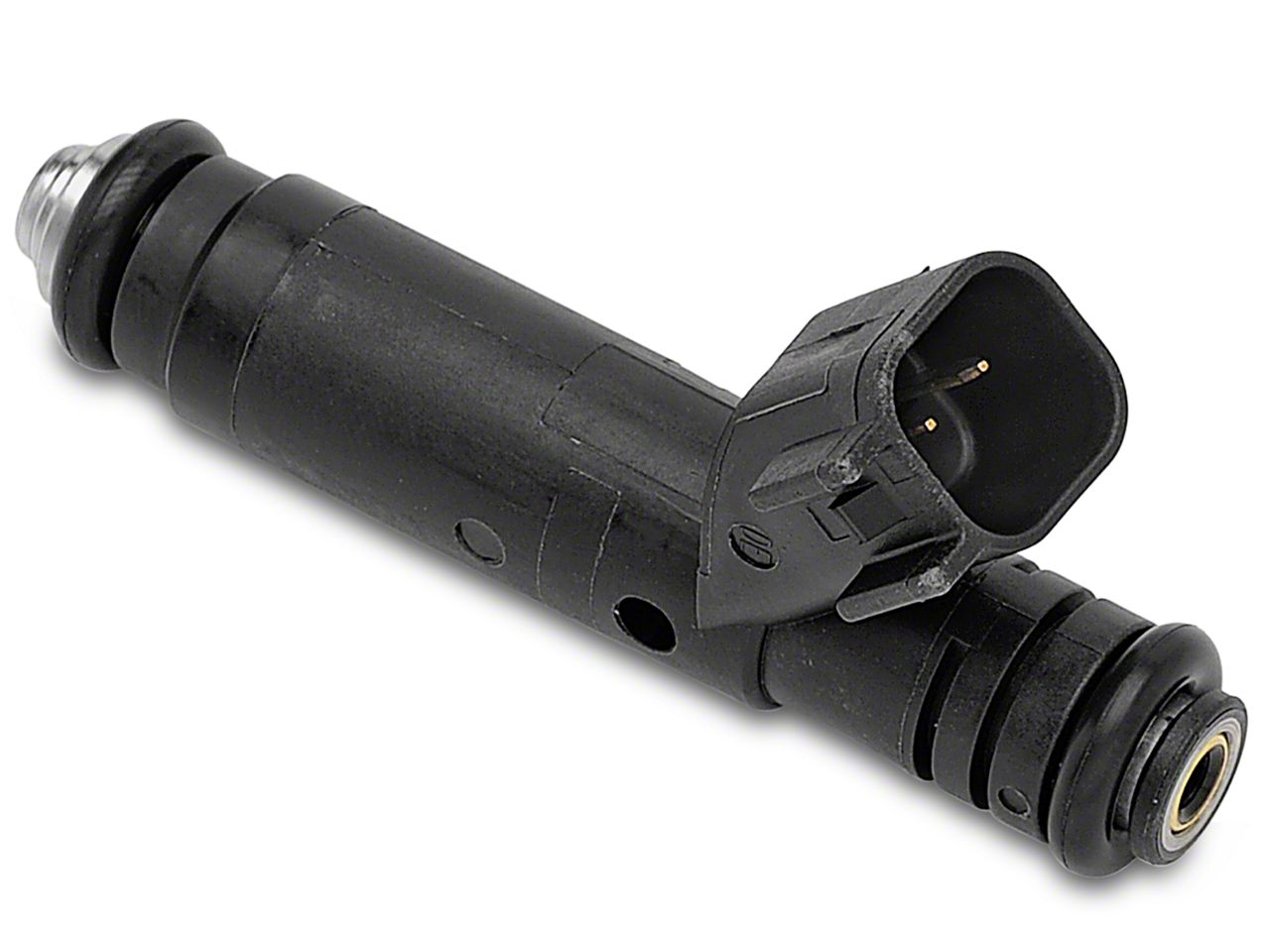

Ford Performance EV6 High Flow Injectors - 60 lb (87-14 All)

Market Price $459.99 You Save 13% ($60.02)
Our Price

$399.97 (set of 8)

FREE Shipping
  • Item 50403
  • MPN# M-9593-LU60

In Stock Ships same business day. Choose options to add to cart

Features, Video & Details

  • 60 lbs./Hr. Flow Rate
  • EV6 Body Style
  • 11-12 Ohms Impedance
  • USCAR Style Connector
  • Sold as a Set of 8

Review & Installation Video

Review & Install Video

Hey, everybody. I'm Justin with AmericanMuscle.com, and this is my detailed overview of the Ford Racing EV6 24 and 60 pound injectors available for your 1987 to 2014 Mustang. You should be checking out the Ford Racing option here if you're looking for an affordable replacement for a set of faulty stock injectors or if the quest for big power has you looking for some more fuel. And let's be honest guys. The fuel injector is really only one part of the equation here. You have fuel lines, fuel pumps, regulators, all that other good stuff, but for this video we're just focusing on the Ford Racing injectors here. Now obviously, guys, there's gonna be a huge difference between the two injectors. So let's start with the smaller option, the 24-pounders here, and that's actually the one I have with me on the table. Now, as the name suggests, these are designed to flow 24 pounds of fuel per hour at 24 psi. These are essentially gonna be a factory replacement for any '05 to '09 three-valve GT and even some of the earlier naturally aspirated four-valve Mustangs. These are also gonna be a huge upgrade for any two-valve GT or basically any V6 prior to 2011. Now, if you have a 2011 or a newer V6 or GT, these 24-pounders are not gonna be for you because your factory injector is actually slightly bigger than these. So if you have an '87 to '04 GT or a 4-Liter V6 and you plan on doing a bolt-on naturally aspirated setup, even a mild boost application or some nitrous, these are gonna be an affordable upgrade for you. Now, again, I would probably recommend these things to around a 300 horsepower range, give or take, and that's gonna depend on your fuel pressure or what kind of fuel you're using and also whether you're gonna be boosted or naturally aspirated. The Ford Racing 24-pounders are going to be one of your most affordable options when you're looking for an injector of this size here on the site, coming in around the $200 range for a set of 8. They are gonna featured an 11 to 18 ohm impedance and they do utilize that EV6 body style and connector, making them essentially plug and play for any S197 or those early naturally aspirated core valve Mustangs. Anything else that utilizes a Jetronic-style connector is going to need to purchase the adapter kit, but not a big deal, guys. Super affordable, $30 here on the site for a set of eight of those and they're very easy to install. Now let's switch our focus to Ford's big boy option here, the Ford Racing 60-pounders, which again, will flow 60 pounds of fuel per hour, at 43 PSI. For the most part, guys, this is gonna be plenty of injector for most builds out there. And I say most builds because these will easily support around the 700 wheel horsepower range when the injector is starting to near its full duty cycle. If you are planning on making a little bit more than that, you can always check out Ford Racing's 80-pound option, which is a little bit more affordable, or if you have money to burn, you can always check out Injector Dynamics options as well. They are a little pricey, but they definitely make a solid injector. These 60-pounders are gonna be slightly more expensive than the 24-pound options, as you might expect, but still pretty affordable overall, coming in between the $300-400 range for a set of 8. Now, these 60-pounders are 11 to 12 ohm impedance and they do feature that same EV6 body style as the 24-pound injectors, therefore the same fitment applies. S197s are gonna be completely plug and play while most of the other generations will need to buy that adapter kit. This seems like a great time to bring up the install. Now, installing a new set of injectors really isn't all that big of a deal, especially if you have a newer S197, as these will be completely plug and play, so that makes for an easy 1 out of 3 wrench install job here, guys. Maybe 30 minutes to an hour in the garage or driveway. Now, if you do have the older car and you do have to use the adapter kit, figure a soft 2 out of 3 wrenches on my difficulty meter. You're not doing any hardcore wiring here, but there is a little involved and maybe two to three hours in total install time. This is a great time to also mention, guys, you can't just plug these things in and go without accounting for them in your tune. So most of you guys watching this probably already know this, but again, just wanted to reiterate that point. While these two injectors from Ford Racing are gonna support completely different levels of power, they do both share the common goal of delivering more fuel to your naturally aspirated or boosted setup and do so for a reasonable price compared to your other options. So be sure to check out a Ford Racing injector set for your Mustang right here at AmericanMuscle.com.

Is your Pony Starving? Have you made a number of upgrades to your pony and now it's starving for fuel? Then you may need to step up to a larger size fuel injector. AmericanMuscle now offers a set of 8, 60 lb EV6 Style High Flow Fuel Injectors from Ford Racing.

Legendary Ford Racing Performance. Add performance parts to your Pony made by the people who know it best. Ford Racing's legendary quality and performance ensure these premium quality injectors will deliver the consistent results you need to tune for maximum power.

High Performance Applications. This Ford Racing high-impedance fuel injector has a USCAR electrical connector with a four hole design that flows 60 lb/hr and are specifically designed for high performance applications.

Fitment: 1987 1988 1989 1990 1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Details

What's in the Box
  • (8) EV6 60lb fuel injectors
Installation Info
Tech Specs
  • 60 lbs./hr. flow rate
  • EV6 body style
  • 11-12 ohms impedance
  • USCAR style connector
  • Sold as a set of 8
Will it fit my Mustang?
  • Boss 302 - 12, 13
  • Foxbody - 87, 88, 89, 90, 91, 92, 93
  • Mach 1 - 03, 04
  • V6 - 94, 95, 96, 97, 98, 99, 00, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14
  • Bullitt - 01, 08, 09
  • Cobra - 94, 95, 96, 97, 98, 99, 01, 03, 04
  • GT - 94, 95, 96, 97, 98, 99, 00, 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14
  • GT500 - 07, 08, 09, 10, 11, 12, 13, 14

Designed for high performance applications only

Most Helpful Reviews

5/5
Ford Racing 60lbs injectors

Ford Racing 60lbs injectors Are a must when adding a supercharger or aftermarket forced induction system. These allow for the max power of your non N/A set ups. Injectors are high quality and built in ...

Read More
Helpful (1)

5/5
Works Great

I recently installed a Procharger on my car and needed some bigger fuel injectors for the tuning. After these were installed the tuning was a breeze and they performed very well. Happy how these perform ...

Read More
Helpful (1)

Overall Rating 5 out of 5 stars
Read All 6 Reviews

Customer Photos (2) Submit Your Photo

View All 2 Photos

You Might Also Like

13 Questions / 7 Answers

Ask a Question

do i need anything else like a supercharger on my 2011 v6 to run these? i was told i might need a super charger to run these fuel injectors. i currently have basic bolt on modifications and am wondering if this is enough?

AUTOBOT

  • You do not ‘need’ a supercharger to run 60# injectors. You can run them on your current setup but it is overkill. If you were some how able to get your 3.7 v6 to push 400 flywheel horsepower naturally aspirated, you would still only need the ~42# injectors. The stock injectors are 29# (I think). If you do decide to run these injectors, you will need a tuner and tune to accompany them. Your best bet would be to wait until you buy a supercharger, and some of those kits come with larger injectors anyways or until you have installed: intake, throttlebody, plenum, heads, cams, headers, off road crossover, and axel backs (and even then wouldn’t be necessary until you did lower internal work to change compression).

    Jcon

Show 1 more answer Helpful (2)

Hello, My pony is 4.0- V6, w/o supercharged. I upgraded CAI, shorty headers, Ford Performance dual exhausted, Bama Tune, Performance Distributors Screamin Demon Coil, IR spark plug. When I speed up quickly at 45mph, the pony is slow down suddenly 2~3 seconds then increase speed. I think it seems to be lack of fuel at that point. I wonder that Should i replace stock injectors with 60lb plus new BBK fuel pump. Any advices are appreciated. Thanks guys.

foolmankh

  • The Ford Performance EV6 High Flow Injectors - 60 lb would be too large for your setup, being able to support a V6 Mustang making over 700HP. The issue does not sound like it is related to fueling, I would recommend consulting a local shop to determine the issue.

    Rob D

Helpful (1)

Easy straight forward question. Are these injectors e85 compatible?

CrazylarryCTM1

  • The Ford Performance EV6 High Flow Injectors would be E85 compatible with an appropriate tune.

    Rob D

Helpful (0)

I have a 2012 5.0 track pack I do plan on going with the stage 3 cams, cobra jet intake, also I do plan on staying N/a and getting some new heads down the road and also doing a little bit of Road racing later this year will these be an overkill or not? The goal is to reach 600whp N/A will these or at least get close to that number will these help or not?

Reece

  • Assuming that you're using pump gas, the 60lb Ford Performance EV6 High Flow Injectors would be a little too much. I'd recommend going with the next step down which would be 47lb injectors: http://www.americanmuscle.com/mustang-ev6-47-injectors.html

    pserafi

Helpful (0)

Hi I am wondering if these injectors will support my build 306ci with boost pistons afr 185 heads 10.5 to 1 compression ratio edelbrock performer intake 75 mm throttle body 90 mm mass air meter complete upgraded fuel system supercharged with 10 lbs of boost should make 550 rwhp thanks

Ace

  • Assuming that you're using regular pump gas, I'd recommend 50-65lb injectors. So you should be fine to use the 60lb Ford Performance EV6 High Flow Injectors.

    pserafi

Helpful (0)

I'm looking to purchase new hardware to convert to e85. What will I need before I get the new e85 protune? Listed below are the relevant components of the current build that may need modification. How much horsepower is safe with stock internals running corn juice? Currently at 365whp/390wtorq on 91 octane with no issues. Car: 2004 40th Ann Mustang GT 91 Octane Protune: DB Performance (Rogers MN) Forced Induction: Procharger p1sc Supercharger, 2-core intercooler Fuel delivery: 42lb injectors, AEM 320 lph Fuel Pump Ignition: NGK TR6 Spark Plugs Air intake: K N Fipk Cold air intake Exhaust: Flowmaster catless, with catless H pipe Gearing: 3.73 Thanks for the info.

ALagger

  • For Running E85, we recommend discussing with your tuner what would be needed specific for your build and how they will tune it. We recommend at least a 47Lb/hr injector when running E85, however for your setup, due to supercharged applications having a higher brake specific fuel consumption, larger may be required. E85 should not effect the power handling of the engine internals as long as it is tuned correctly.

    Rob D

Helpful (0)

More Products You Might Like

Customer Reviews (6) Write a Review

Overall Rating 5.0

out of 5 stars

Installation Time:Less than 1 Hour

  • Performance Gain 4.6 4.6
  • Fit 5 5



  • 5/5

    Installation Time: Afternoon

    January 12, 2017

    Ford Racing 60lbs injectors

    Ford Racing 60lbs injectors Are a must when adding a supercharger or aftermarket forced induction system. These allow for the max power of your non N/A set ups. Injectors are high quality and built in the USA what's not to love highly recommend these.

    Tom

    Year: 1996 Submodel: Cobra

    Helpful (1)

  • 5/5

    August 05, 2016

    Works Great

    I recently installed a Procharger on my car and needed some bigger fuel injectors for the tuning. After these were installed the tuning was a breeze and they performed very well. Happy how these perform especially if your planning on upgrading your power level.

    scottstang

    Year: 1997 Submodel: Cobra

    Helpful (1)

  • 5/5

    Installation Time: Afternoon

    May 04, 2016

    Good Injectors

    Bought them to support a 2.3 whipple install, and they work great!

    99Cobra

    Year: 2004 Submodel: Cobra

    Helpful (1)

  • 5/5

    Installation Time: Less than 1 Hour

    August 27, 2015

    Good

    Good works like should havnt got tuning complete so don't know what gain will me.

    Willie

    inola, OK

    Helpful (0)

  • 5/5

    Installation Time: Less than 1 Hour

    July 17, 2014

    Fantastic Upgrade!

    Simple installation, Great for when your upgrading the Blower.

    AMCoalK

    Year: 2004 Submodel: Cobra Hatboro, PA, USA

    Helpful (0)

  • 5/5

    Installation Time: Less than 1 Hour

    January 06, 2013

    Ford Racing EV6 High Flow Injectors - 60 lb (87-13 All)

    excellent addition, has been called an overkill for the na engine, looking to have them installed the day of the dyno tune to see that everything comes togheter.

    Miltons

    Year: 2010 Submodel: GT Germany

    Helpful (5)
