RAM HDX Clutch (05-10 GT)

RAM HDX Clutch (05-10 GT)

About RAM Clutches

RAM Clutches and Flywheels
Since the advent of the fox bodied Mustang in the early 80’s, RAM Clutches has been at the forefront of Ford clutch technology.  With systems ...... READ MORE

YOU MIGHT ALSO LIKE:

CLEARANCE PRICE$244.95
Market Price $299.99You Save 18% ($55.04)
Item # 34003
Ships the same business day

Product Features

  • Stage 2 upgrade for Street/ Strip
  • Organic Material
  • Good for up to 450 HP
  • SFI Approved
  • Fits 2005-2010 GT with the TR-3650 Transmission
Street or Strip. The RAM HDX Clutch kit is designed for stock Mustangs with bolt-on mods and mild power enhancements this clutch is great for the street or strip. And if you are replacing your clutch it is also a good idea to replace or resurface your flywheel at the same time to prolong the life of your new Clutch.

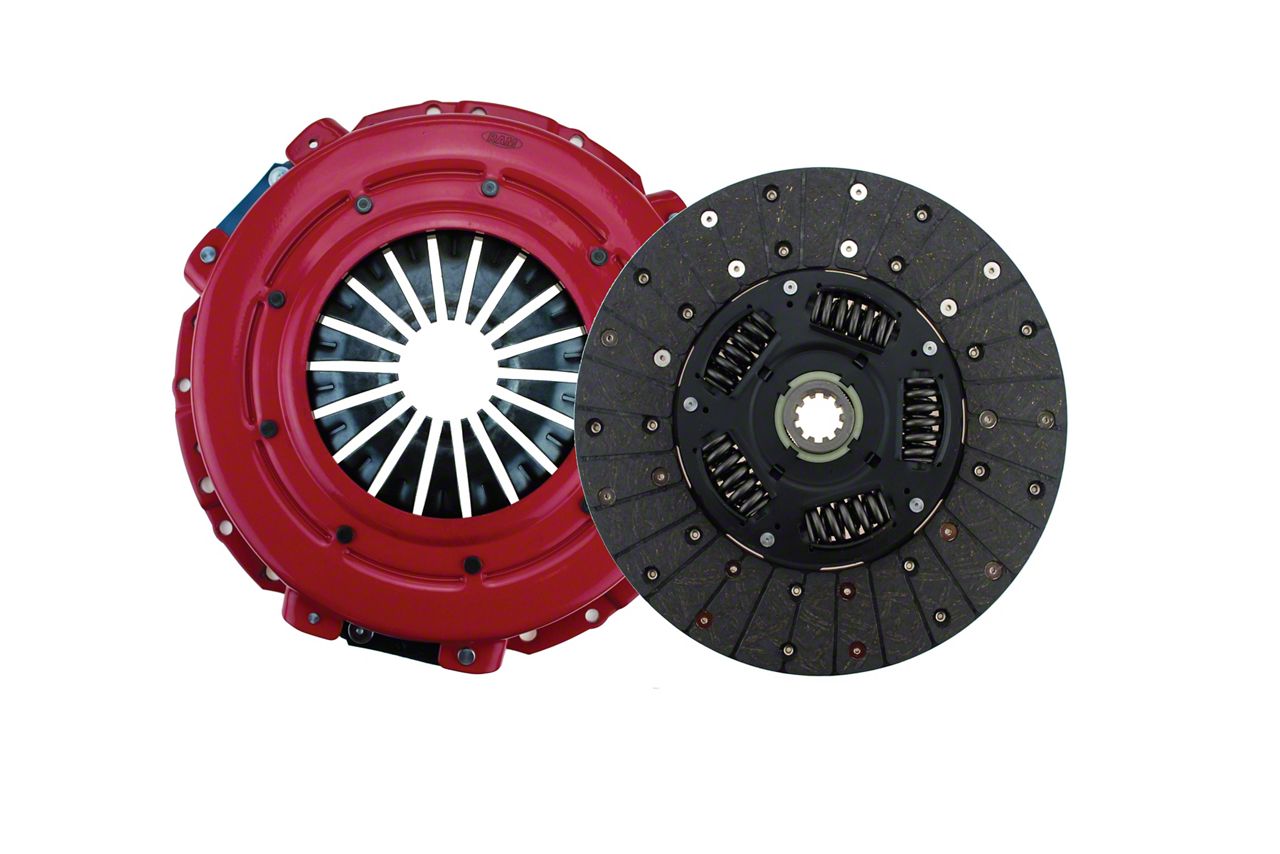

Superior Design. The RAM HDX pressure plate features increased clamp loads and 200 Series organic clutch disc. The 200 series consists of heavy duty organic facing material that greatly increases rotational strength, and an eight spring center hub for excellent shock absorption.

Application. The RAM HDX Clutch kits are the performance upgrade for your daily driven Mustang. The HDX Mustang Clutch is designed for the 2005-2010 GT, with the TR-3650 transmission.

Specifications:
  • Fits: 2005-2010 GT with a TR-3650
  • Disc Dimensions: 11" X 10T X 1-1/16"
  • 8-spring Hub Assembly
  • Horse Power Rating: 450

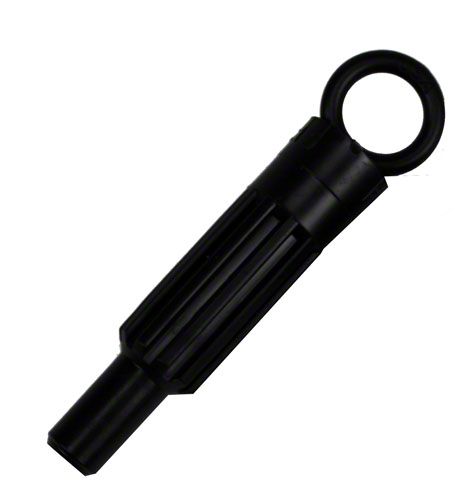

  • Includes: Pressure plate, clutch disc, and alignment tool

Technical Note. The 2005+ Mustang uses a concentric slave cylinder instead of a conventional throwout bearing. Therefore this clutch kit will not include a throwout bearing. It is recommended to install a new flywheel with this replacement clutch for the 2005+ Mustang GT's. Please view our flywheel page for 2005-2009 steel and aluminum flywheel replacements. Wondering what kind of transmission you have? Click Here to find out!

Clutch Kit Specifications
Year/Model: 05-10 GT HP/Torque Rating @ Flywheel: 450 HP
Manufacturer: RAM Clutches Disc Dimensions:

11" x 10” x 1-1/16"

Transmission Type: TR-3650 SFI Approved: Yes
Material: Organic Hardware Included:

Pressure Plate, Clutch Disc, Alignment Key


Installation Time:

(approx) 4 Hours

Difficulty Level:

Mechanical expertise or professional installation required.

What's in the box?

Hardware included:
  • Pressure plate
  • Clutch disc
  • Alignment tool

Customer Submitted Installation Guides:

RAM HDX Clutch - Installation Instructions

What's in the box?

Hardware included:
  • Pressure plate
  • Clutch disc
  • Alignment tool
checkmark
Fitment:
  • GT 05, 06, 07, 08, 09, 10
  • Bullitt 08, 09
checkmark
Known Exceptions:
Fits Manual GT and Bullitt Mustangs with a TR-3650 transmission.

Customer Reviews

4.33
  • 4/5
    Ram hdx clutch
    April 27, 2011
    Rob
    2007GTDaily Driver
    Had to replace my clutch in my 07 gt got the ram hdx and steel flywheel. This clutch is made very good vs stock one I'm happy with it was grabing a little hard on slow take off but after 500 miles or so it smooth right out I got about 1500 miles on it now working very well .the kit comes with a shim that has to be placed behind the slave cylinder So you will have a full pedal .And thanks American muscle for great parts and fast shipping
    1 of 1 voted this as helpful.Yes, I recommend this product.
  • 5/5
    great replacement
    June 7, 2011
    ruben lara
    2005GTShow
    clutch is great perfect fit car chirps in 1st to 3rd gear easy install great upgrade from stock
    1 of 1 voted this as helpful.Yes, I recommend this product.
