How to Install a Borla Stinger S-Type Axle-Back Exhaust on your 2005-2009 Mustang GT

This Mustang Parts Installation Guide Works For

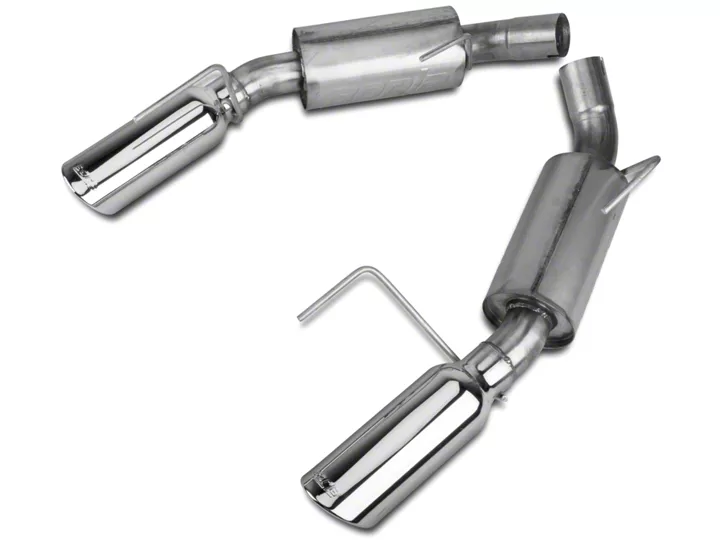

Borla Stinger S-Type Axle-Back Exhaust (05-09 GT, 07-09 GT500)DOWNLOAD PDF

Tools Required

  • 1 3/8” Drive Ratchet
  • 2 3/8” Drive Extension 3”
  • 3 15mm Deep Well Socket
  • 5 Pry Bar
  • 1 Spray Lubricant

Installation

How to Install a Borla Stinger S-Type Axle-Back Exhaust on your 2005-2009 Mustang GT 01

Original Exhaust System Removal

Note: With a used vehicle, we suggest a penetrating spray lubricant to be applied liberally to all exhaust fasteners and allowing a significant period of time for the chemical to lubricate the threads before attempting to disassemble.

1. Loosen the clamps located just in front of each muffler. (See Fig.1)

How to Install a Borla Stinger S-Type Axle-Back Exhaust on your 2005-2009 Mustang GT 02

2. Using a muffler stand or an additional person to hold the left muffler assembly up into position, using a 15mm socket, unbolt the hanger bracket assembly located just above the front portion of the muffler. Place the hardware to the side for use during the installation of your new exhaust system. (See Fig.2)

How to Install a Borla Stinger S-Type Axle-Back Exhaust on your 2005-2009 Mustang GT 03

3. Continuing using a muffler stand or an additional person to hold the left muffler assembly up into position, using a 15mm socket, unbolt the hanger bracket assembly located just above the rear portion of the muffler. Place the hardware to the side for use during the installation of your new exhaust system. (See Fig.3)

How to Install a Borla Stinger S-Type Axle-Back Exhaust on your 2005-2009 Mustang GT 04

4. Repeat steps 1 thru 4 for the removal of the right side muffler assembly.

How to Install a Borla Stinger S-Type Axle-Back Exhaust on your 2005-2009 Mustang GT 05

Warning: Use extreme caution during installation. Torque all fasteners according to manufacturer’s torque values and tightening sequence.DONOTuse air impact tools to tighten fasteners on Borla Performance Exhaust Systems. Use of such tools may result in bent flanges or gasket contact areas leading to exhaust leaks.

Borla Performance Rear Section Exhaust System Installation

1. Remove the hanger bracket assemblies from the original left muffler assembly and install them onto your new left muffler assembly. (See Fig.5)

How to Install a Borla Stinger S-Type Axle-Back Exhaust on your 2005-2009 Mustang GT 06

2. Place a clamp over the expanded end of the left muffler assembly and using a muffler stand or an additional person to hold it up in place, set it into position and using the original hardware, secure the hanger bracket assemblies to the vehicle.Do Nottighten clamp.

3. Repeat steps 1 and 2 for the installation of the right side muffler assembly. (See Fig.6)

How to Install a Borla Stinger S-Type Axle-Back Exhaust on your 2005-2009 Mustang GT 07

4. Check your exhaust system for proper clearance under the vehicle and also for tip alignment. Once position has been determined to be correct, tighten the Accuseal™ clamps to 32-35 ft. lbs. (See Fig.6)

6. Before starting your vehicle, make sure to check all wires, hoses, brake lines, body parts and tires for safe clearance from the exhaust system.

7. Start vehicle and check for any leaks. If any leaks are found, determine cause (such as loose or incorrectly positioned clamp) and repair as necessary.

Congratulations!!!You have completed the installation of the world famous Borla Performance Stainless Steel Exhaust System.

Note: When you first start your vehicle after the installation of your new Borla Performance Exhaust System, there may be some smoke and fumes coming from the system. This is a protective oil based coating used in the manufacturing of mandrel bent performance exhaust tubing. This is not a problem and will disappear within a very short period of time after the exhaust has reached normal operating temperatures.
