This Mustang Parts Installation Guide Works For
Installation Time: 15 Minutes

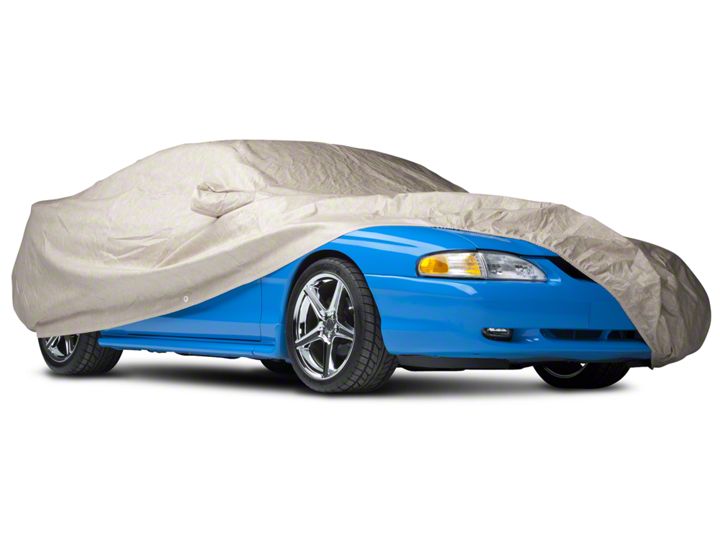

Your new custom cover is made with Block-It® 380 Series fabric from KimberlyClark. This is a 3-layer non-woven ultrasonically laminated composite. A film barrier is used for the middle layer to help provide a high degree of dust protection while remaining breathable and providing good UV protection and water resistance for your vehicle when used outdoors.
If your vehicle has an outside radio antenna which will not retract flush with the vehicle body, you will have to provide an opening in the cover. We have included a non-corrosive plastic grommet set for the antenna opening.
Recheck the overall positioning of the cover to make sure it has not moved on the vehicle. Make sure the cover lies flat over the hood and roof areas of the vehicle. Mark the cover with the location of the antenna base and make a hole with a sharp pencil. Use sharp scissors to make the hole opening 3/4 inch in diameter and install the grommet as shown in the diagram to the right. The outside grommet ring fit is very tight. Place the cover on a CLEAN hard surface, position the the inside grommet through the opening you made and then secure the outside grommet snap-ring in place using a rubber mallet. Do NOT use excessive force or the ring can be damaged. Do NOT install the grommet with the cover on the Gover vehicle.
IMPORTANT - When installing the cover, remember to place it over the antenna before putting the mirror pockets over the mirrors.
