How To Install a Edelbrock Pro-Flo Universal Replacement Air Filter - 10in on Your 1987-2014 Mustang

Installation Time

30 minutes

Tools Required
  • Slotted Screwdriver
  • Clean Rag
American Muscle
Shop Parts in this Guide

INSTALLATION


1. Before you start, this is what you should see under your hood. It is assumed that you already have a cold air intake and you’re simply replacing the filter. The picture shows a blue filter, yours may be different. Process is the same for them all. Use a slotted screwdriver and remove the clamp holding the filter on.


2. Once the clamp is loosened, then carefully remove the filter. You may need to move it around a bit to get it off.


3. And this is what you should see. Take this opportunity to remove and debris or dirt that has settled in this compartment.


4. Also take this opportunity to check inside the air intake. Check for dirt, debris, etc. If there is anything, clean out the air intake thoroughly. You may also wish to remove your entire cold air intake (if its dirty) and clean it as this is the air that is going in to your engine.

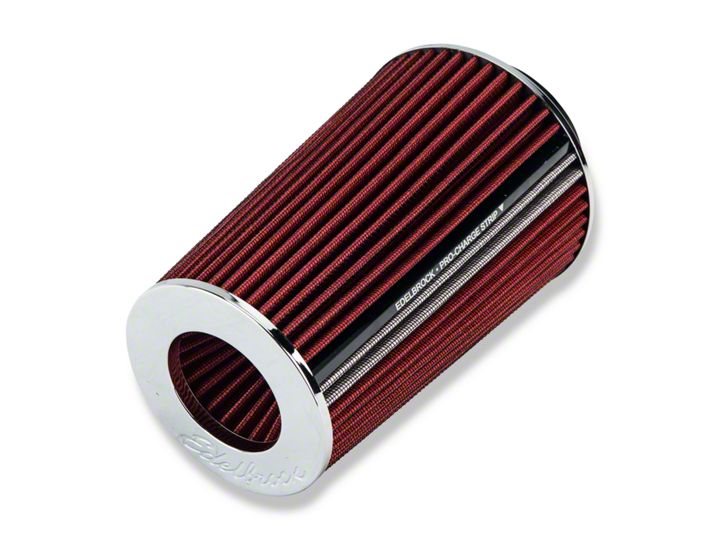

5. Get your new filter ready.


6. The Edelbrock filter comes with several sizing rings.



7. Measure your existing filter opening and then select the appropriate ring size for your intake.


8. Carefully slide the new filter on to the air intake (make sure you place the clamp loosely over the filter first). Using a slotted screwdriver, tighten the clamp to secure the filter to the air intake.


9. The filter has a “recharge indicator strip” on it that you may wish to rotate out of sight.


10. So you should now be all done and you should see something like the picture below. All that’s left to do is fire it up!


Installation Instructions Written By AmericanMuscle Customer Michael Touw 12.21.2013

This guide applies to Mustang years: 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014 and Submodels: Foxbody, Cobra, GT, V6, Bullitt, Mach 1, GT500, Boss 302
