How To Install Splash Guards - Front Pair on your 2010 - 2014 Mustang

Installation Time

30 minutes

Tools Required
  • Flathead screw driver
  • Clip remover tool (optional)
American Muscle
Shop Parts in this Guide

Note:

I recommending using the clip remover tool to help prevent damage to the clip.


Step 1:

Clean surface of installation area.


Step 2:

Using a flat head screw driver, loosen the middle pin in the two retaining clips from rocker panel.


Step 3:

Using the clip remover tool pry both of the pin and retainer clips out.


Step 4:

Align the back grove on the Splash Guard with the back of the rocker panel and then align the top with the fender overlap.


Step 5:

Make sure the holes align with the holes in the rocker panel. Insert the pin/clip into each hole and press it in until it is completely flush.

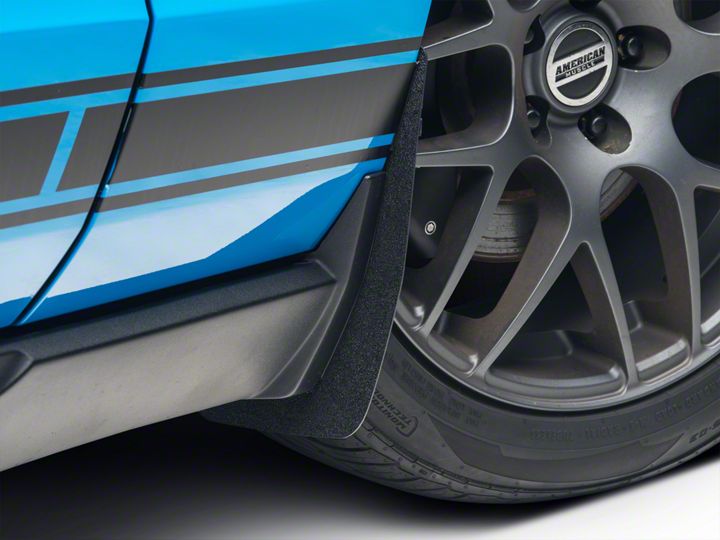

Final Product Installed.


Installation Instructions written by AmericanMuscle customer Joey Campbell 12.25.13

This guide applies to Mustang years: 2010, 2011, 2012, 2013, 2014 and Submodels: Boss 302, V6, GT, GT500
