How to Install a Chin Spoiler on you 2005-2009 Mustang V6

This Mustang Parts Installation Guide Works For

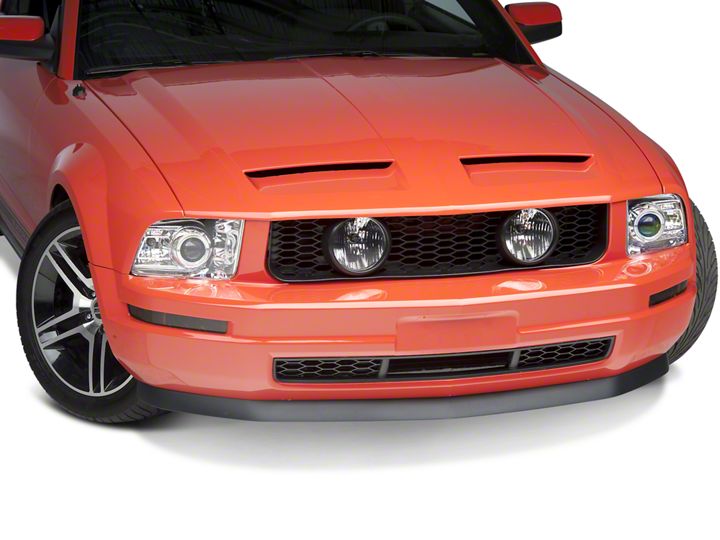

CDC Chin Spoiler - Unpainted (05-09 V6)DOWNLOAD PDF

Tools Required

  • Phillips Screwdriver
  • Drill with 1/4in drill bit
  • Floor jack and stands
  • Push clip remover
Installation Time: 1 Hour

Installation

Before:

2005-2009 CDC V6 CHIN SPOILER Install 1 2005-2009 CDC V6 CHIN SPOILER Install 2

  1. Using a floor jack, jack up the front end of your stang and secure it with jack stands. Turn your steering wheel all the way in one direction to allow easier access to the screws inside the wheel well.



  2. Locate the two screws that secure the inside of the wheel well to the lower bumper cover. Remove them with your phillips screwdriver. It should now look like this:

    2005-2009 CDC V6 CHIN SPOILER Install 3

  3. Next line up the end of your chin spoiler to these two holes and attach the chin spoiler to the car.

    2005-2009 CDC V6 CHIN SPOILER Install 4

  4. Now the instructions from CDC said to tape the chin spoiler on to the bumper with painters tape to hold it secure while drilling the holes for the spoiler. I found it easier to just ask somebody to firmly hold the spoiler in place while I drilled holes into the bumper.



  5. With your partner firmly holding the spoiler in place, line up the chin spoiler to the front of your car to see where you will be drilling the holes into your bumper.



  6. Take your drill with a 1/4in drill bit and drill the holes, angle the drill facing the rear of the vehicle to prevent you from drilling out the front of the bumper. To insure proper fitment make sure the hole is clear and free of any debris left from the bumper.

    2005-2009 CDC V6 CHIN SPOILER Install 5

  7. Once the hole is drilled place the supplied plastic fasteners in the hole to secure the chin spoiler to the car.



  8. Repeat steps six and seven for all ten holes.



  9. Step back and enjoy the new front end of your stang.

    2005-2009 CDC V6 CHIN SPOILER Install 6

After:

2005-2009 CDC V6 CHIN SPOILER Install 7 2005-2009 CDC V6 CHIN SPOILER Install 8

Installation instructions & photos provided by AmericanMuscle Customer Vincent Hardalo 10.15.2012
