Find Intercoolers for your Charger

2.50-Inch Tube and Fin Intercooler with Turbo Piping Kit (Universal; Some Adaptation May Be Required)

Item CR37629
$0.00
Want $10? Write one of the first 5 reviews
Our Price

$389.99 kit

Military, Medical & First Responders Earn $19.50 in AM Cash Rewards. Get Verified

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

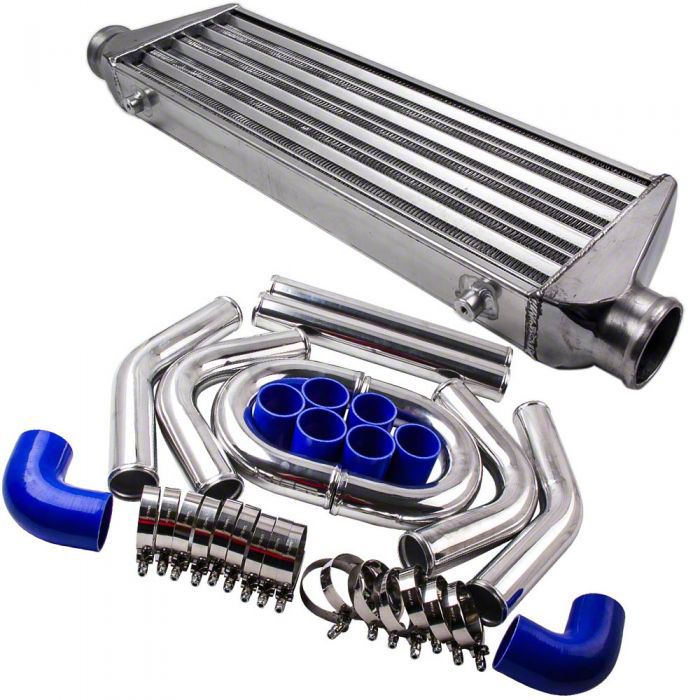

      • 2.50-Inch Tube and Fin Intercooler with Turbo Piping Kit
      • Tube and Fin Core Design for Efficient Heat Dissipation
      • Lightweight Aluminum Construction
      • Inlet/Outlet Size: 2.5 Inches
      • Intercooler Dimensions: 27 Inches (L) × 7 Inches (H) × 2.5 Inches (W)
      • Core Size: 21 Inches × 7 Inches × 2.25 Inches
      • Supports up to 500 Horsepower
      • Pressure Drop: 0.2 to 0.5 PSI at 15 PSI Boost
      • Max Pressure: 30 PSI
      • One-Piece Cast Aluminum End Tanks
      • Designed to Increase 10 to 20 Horsepower
      • Includes 2.5 Inch Diameter Aluminum Pipes (Straight, 90°, 135°, U-Shaped)
      • Pipe Thickness: 1.8 Millimeters
      • Polished 6061 Lightweight Aluminum Tubing with Rolled and Beaded Ends
      • Includes Eight Braided Blue Silicone Hoses (6 Straight, 2 90°)
      • Sixteen Stainless Steel T-Bolt Clamps for Secure Connections
      • Designed to Increase Airflow by up to 65 Percent
      • Compatible with All Turbo DIY Projects Across Various Vehicle Architectures
      • Moderately Difficult Installation
      • Universal Fitment; Some Adaptation May Be Required

      Description

      High-Flow Turbo Cooling System. The 2.50-Inch Tube and Fin Intercooler with Turbo Piping Kit is engineered to optimize air intake temperatures and boost system efficiency in turbocharged applications. Featuring a lightweight aluminum construction with a tube and fin core, this intercooler efficiently dissipates heat while maintaining low pressure drop for improved throttle response. Capable of supporting up to 500 horsepower, it delivers an increase of 10 to 20 horsepower through improved airflow and charge cooling. Ideal for custom turbo setups, this complete kit provides superior performance and versatility for both street and track builds.

      Construction and Appearance. The intercooler is constructed from durable, corrosion-resistant aluminum with one-piece cast end tanks for maximum strength and reliability under boost. The polished 6061 aluminum piping features 2.5-inch diameter tubing with a 1.8mm wall thickness, rolled and beaded ends for secure hose retention, and a bright polished finish for a clean, professional look. The kit includes eight high-temperature braided blue silicone couplers and sixteen stainless steel T-bolt clamps to ensure airtight connections. Designed for efficiency, the system increases airflow by up to 65 percent while maintaining consistent boost pressure and reducing heat soak.

      Installation. Installation is moderately difficult and may require trimming, welding, or fabrication depending on the vehicle's configuration. The universal design allows it to fit a wide variety of turbocharged or supercharged vehicles. The kit includes all major components—intercooler, piping, couplers, and clamps—for a comprehensive setup. Professional installation is recommended to ensure proper fitment, alignment, and optimal performance.

      Application. This 2.50-Inch Tube and Fin Intercooler with Turbo Piping Kit fits universal turbocharged vehicle configurations; some adaptation may be required.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Intercooler to 27 × 7 × 2.5 Inches
      • (2) 90 Degree Aluminum Pipes to 2.5 Inch
      • (2) Straight Aluminum Pipes to 2.5 Inch
      • (2) 135 Degree Aluminum Pipes to 2.5 Inch
      • (2) U-Shaped Aluminum Pipes to 2.5 Inch
      • (6) Straight Silicone Hoses to 2.5 Inch (Blue)
      • (2) 90 Degree Silicone Hoses to 2.5 Inch (Blue)
      • (16) T-Bolt Clamps to 2.5 Inch

      Questions & Answers

      No questions about this product yet. Ask the First Question
