AEM Electronics Digital Wideband UEGO AFR Gauge (Universal; Some Adaptation May Be Required)

Item CR21373
Product Image
7 Reviews
Our Price

$204.95 each

Military, Medical & First Responders $10.25 Available in AM Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Air / Fuel Ratio Gauge
        • _x000D_
      • Wideband Gauge Kit
        • _x000D_
      • 52mm Body Diameter
        • _x000D_
      • Universal Fit; Some Adaptation May Be Required
        • _x000D_
      • 0-5v Analog Output (10-20 AFR Range Only)
        • _x000D_
      • Interchangeable Black and White Faceplates Included for Customizing Gauge Appearance
        • _x000D_
      • Interchangeable Black and Silver Bezels Included
        • _x000D_

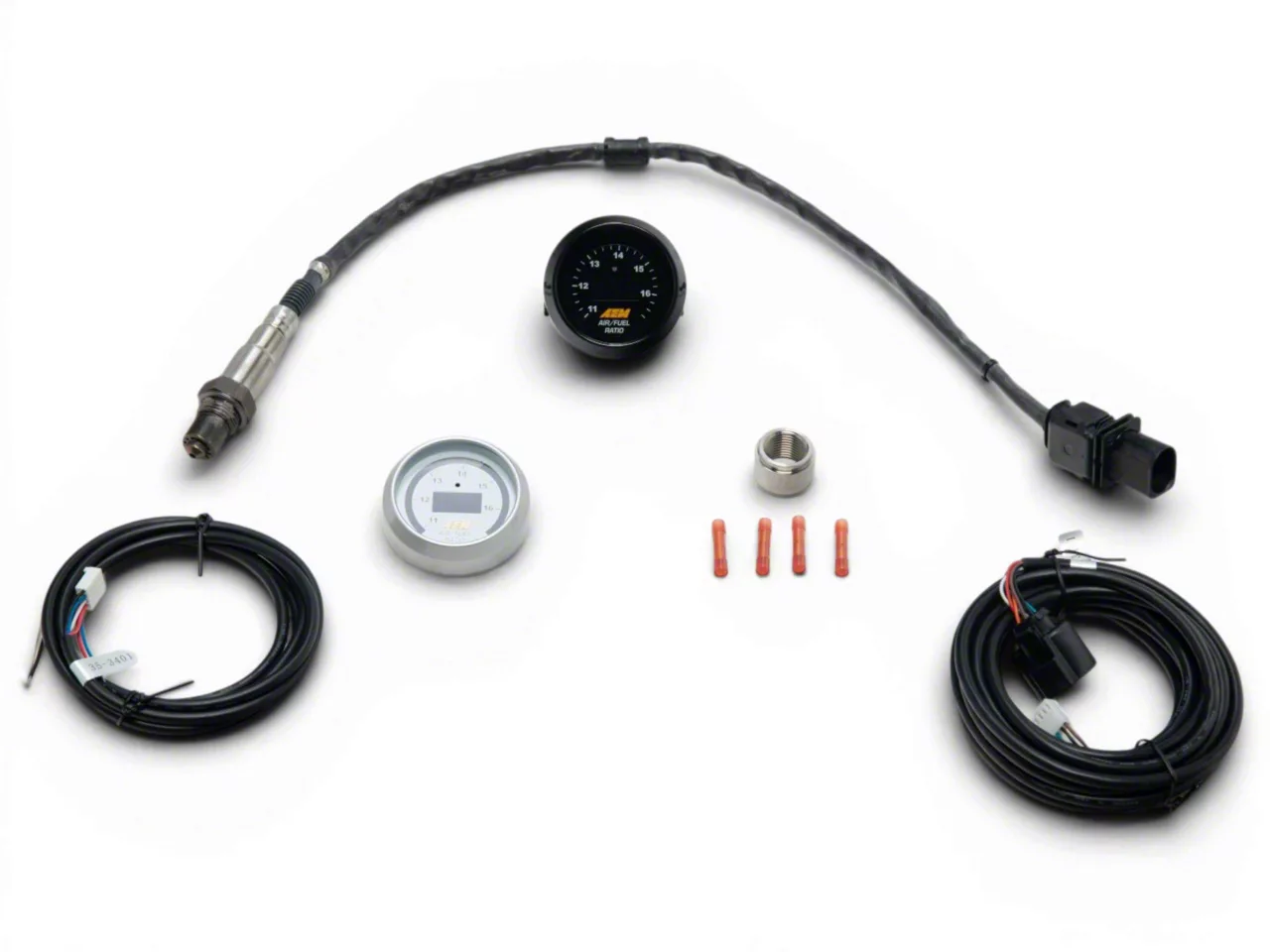

      • 4.9 LSU Wideband Sensor and Weld-In Bung Included
        • _x000D_
      • No Free Air Sensor Calibration Required
        • _x000D_
      • 22 Gauge Wire Measurement
        • _x000D_
      • 96-inch Wiring Harness Length
        • _x000D_
      • Mounting Hardware Included
        • _x000D_
      • Performance Grade Type
        • _x000D_
      • Instrument Panel Subcategory
        • _x000D_
      • Non-Illuminated
        • _x000D_

      Description

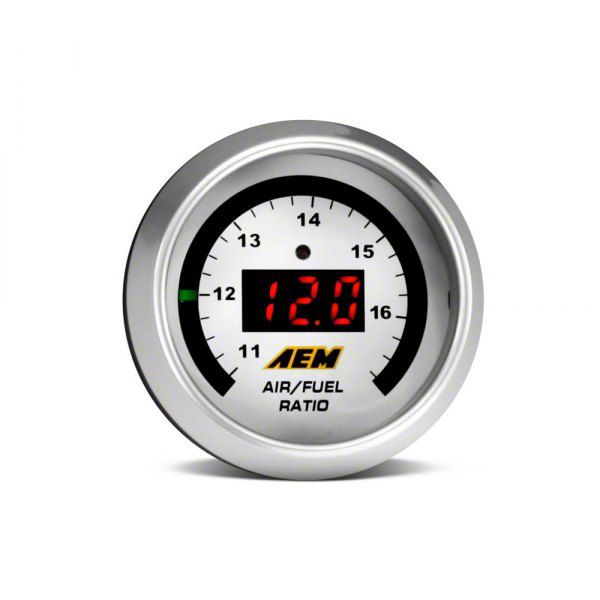

      Wideband AFR Gauge. The AEM Electronics Digital Wideband UEGO AFR Gauge is a precision air/fuel ratio monitoring tool designed for performance tuning and engine safety. It provides accurate real-time data displaying the air/fuel mixture to optimize engine power and prevent damage caused by running too lean or rich. This gauge is essential for anyone looking to maximize engine performance and protect their investment.

      _x000D__x000D_

      Construction and Appearance. The gauge features a durable 52mm round housing with interchangeable black and white faceplates and black and silver bezels for customizable aesthetics. It is equipped with a high-precision 4.9 LSU sensor, known for fast light-off time and low current draw. The display uses a digital LED readout combined with a sweeping LED needle that changes color according to AFR level for easy monitoring.

      _x000D__x000D_

      Installation. Installation is straightforward with included mounting hardware and a weld-in bung for the sensor. Basic mechanical skills are needed, and no free air calibration is required, simplifying setup without drilling beyond the sensor bung installation.

      _x000D__x000D_

      Warranty. This product comes with a 12-month warranty excluding the Bosch O2 sensor.

      _x000D__x000D_

      Application. Designed to fit universally, this wideband gauge kit may require some adaptation depending on the vehicle and mounting location.

      AEM Electronics 30-4110

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 3 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) AFR gauge
