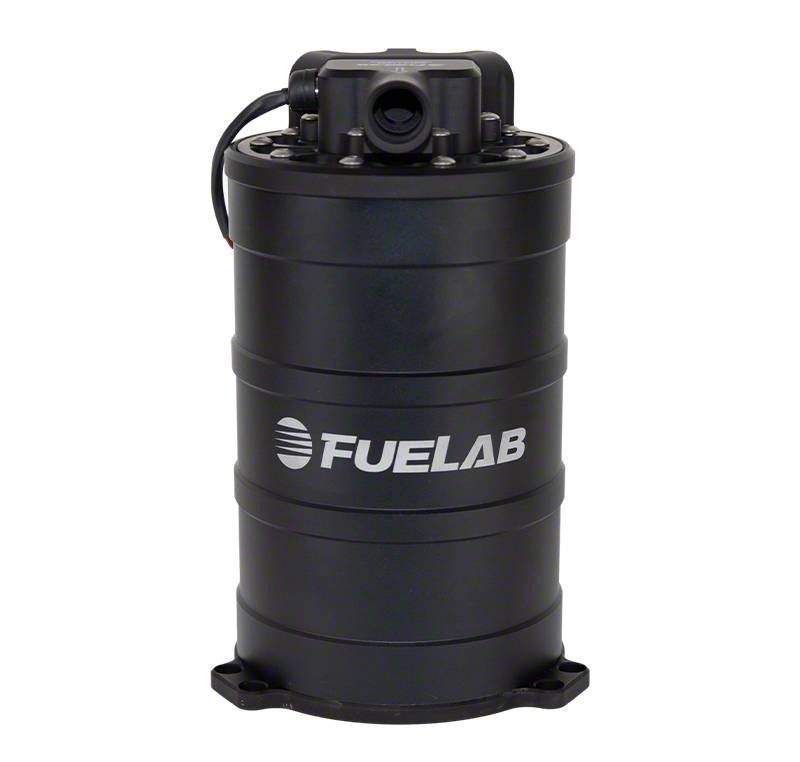

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1250 HP; 235mm Tall (Universal; Some Adaptation May Be Required)
Item CR37506
Our Price
$1,721.00
Military, Medical & First Responders
$86.05 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- H/E Series 235mm Tall Fuel Surge Tank System with 1250 HP SAE Plate Mount Brushless Twin Screw Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 2.1L Fuel Surge Tank System with Speed Controllable, Twin Screw DC Brushless Fuel Pump, 550LPH _x000D_
- Allows High Fuel Flow Output with Minimal or No Modifications to the OE Fuel Tank and Module _x000D_
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel _x000D_
- 235mm Tall _x000D_
- Fuel Surge Tank (FST) Rated Volume: 2.1 L _x000D_
- Single Twin Screw DC Brushless Fuel Pump Included _x000D_
- Rated to Flow 550LPH at 45PSI, with a Maximum Pressure of 125PSI _x000D_
- Integrated Controller with PWM Speed Control _x000D_
- Billet Aluminum Construction with O-Ring Seals and -8AN Fuel Ports _x000D_
- Compatible with Pump Gasoline, Racing Gasoline, and E85 _x000D_
- Return Line Required to Return Excess Fuel Back to the Vehicle Fuel Tank _x000D_
- Optional FST Upgrade Accessory Kits Sold Separately _x000D_
- Pulse Width Modulation Compatibility from 100Hz to 5000Hz _x000D_
- Compatible with Most Aftermarket ECUs Providing PWM Output _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Surge System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1250 HP; 235mm Tall is engineered to deliver consistent, high fuel flow, supporting applications up to 1250 horsepower. This system maintains fuel stability by preventing fuel slosh and ensuring a ready supply of fuel for high-demand engines, making it ideal for racing and high-performance environments.
_x000D__x000D_Construction and Appearance. Constructed from billet aluminum with O-ring sealed -8AN fuel ports, this surge tank system offers durability and reliability. The unit features a precision-machined, corrosion-resistant finish, compatible with pump gasoline, racing gasoline, and E85 fuel types.
_x000D__x000D_Installation. Installation generally requires minimal modifications to the original equipment fuel tank or module. The system mounts via a SAE plate and includes integrated wiring for PWM speed control, which is compatible with most aftermarket ECUs.
_x000D__x000D_Warranty. This fuel surge tank system is backed by a limited lifetime warranty, ensuring confidence in its quality and longevity.
_x000D__x000D_Application. Designed for universal fitment; some adaptation may be necessary to accommodate specific vehicle configurations or systems.
Fuelab 61703
