Installation Time
(approx) 6 Hours
Difficulty Level:
Mechanical expertise or professional installation required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

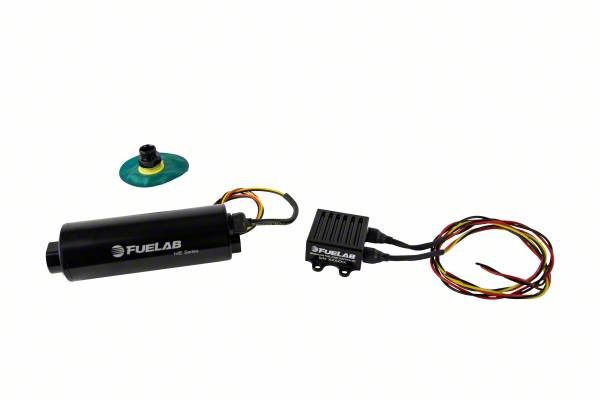

Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 400 LPH (Universal; Some Adaptation May Be Required)
Item CR37464
Our Price
$1,206.00 kit
Military, Medical & First Responders
$60.30 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- In-Tank Fuel Pump Kit Contains 400LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter _x000D_
- Compatible With Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125PSI Max Operating Pressure _x000D_
- Supports Up to 850HP at Continuous Speed Using Naturally Aspirated Pump Gas _x000D_
- Higher Efficiency Results in Lower Current Draw and Reduced Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance to Cavitation and Vapor Lock _x000D_
- Lightweight Super-Efficient DC Brushless Motor Minimizes Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes to Wear Out or Corrode; Low-Sulfur Diesel Compatible _x000D_
- Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out _x000D_
- Compatible With 12 to 16 Volt Vehicle Electrical Systems _x000D_
- Includes Model 72004 Pump Controller for Full Speed PWM or 0-5V Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact and Lightweight Design, Weighing Less Than 3 lbs _x000D_
- Billet Aluminum Construction With Anodized Finish per MIL-A-8625 Type II _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard or Port Style -8AN Fittings _x000D_
- Compatible With Most Aftermarket ECUs With PWM Output Frequency _x000D_
- Compatible From 100Hz to 5000Hz PWM Frequency _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
Advanced Fuel Delivery. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 400 LPH is engineered to provide reliable high-flow fuel delivery across a variety of fuel types including gasoline, diesel, methanol, and ethanol. Featuring a twin screw rotor mechanism, it is capable of supporting up to 850 horsepower at continuous speeds, ensuring efficient and consistent performance for high-demand applications.
_x000D__x000D_Construction and Appearance. Constructed from billet aluminum with an anodized finish that meets MIL-A-8625 Type II standards, this pump kit offers durability and corrosion resistance. Its compact, lightweight design weighs less than 3 pounds and includes long-life fluorosilicone seals compatible with multiple fuel types. The brushless motor uses powerful neodymium rare earth magnets for high efficiency while minimizing electrical draw.
_x000D__x000D_Installation. Installation is straightforward with a design meant to fit within the fuel tank requiring no drilling. The kit includes a remote mount PWM controller compatible with most aftermarket ECUs for seamless integration.
_x000D__x000D_Warranty. This fuel pump kit is backed by a limited lifetime warranty, providing confidence in its quality and durability.
_x000D__x000D_Application. Designed to fit universal applications, though some adaptation may be necessary to accommodate specific tank or vehicle configurations.
Fuelab 20812
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Fuel Pump Kit
