Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)
Item CR37465
Our Price
$1,259.00
Military, Medical & First Responders
$62.95 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_

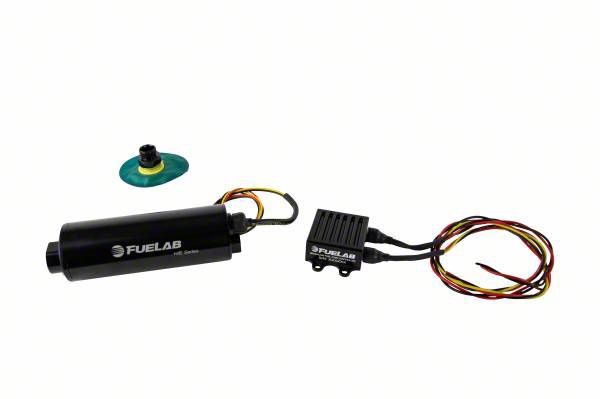

- In-Tank Fuel Pump Kit Contains 550LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, And 65 Micron Straining Filter _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125PSI Max Operating Pressure _x000D_
- Supports 1250HP Power At Continuous Speed Pump Gas Naturally Aspirated _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation And Vapor Lock _x000D_
- Lightweight Super-Efficient DC Brushless Motor _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Includes Model 72004 Pump Controller For Full Speed PWM Or 0-5V Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design Weighing Less Than 3lbs _x000D_
- Billet Aluminum Construction Anodized Per MIL-A-8625 Type II _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- PWM Compatible With Most Aftermarket ECU’s 100Hz To 5000Hz _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
HIGH-PERFORMANCE FUEL DELIVERY. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 550 LPH delivers efficient and reliable fuel flow for high-output engines. It provides up to 1250 horsepower support at continuous speed using a robust twin screw rotor pump, making it suitable for various fuels including gasoline, diesel, methanol, and ethanol. This pump kit ensures optimal fuel supply while reducing the risk of cavitation and vapor lock during operation.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Constructed from billet aluminum with a MIL-A-8625 Type II anodized finish, the pump kit offers a durable, lightweight design weighing less than 3 pounds. It features long-lasting fluorosilicone static seals compatible with multiple fuel types and a brushless motor design that incorporates high flux density neodymium rare earth magnets for increased efficiency and longevity.
_x000D__x000D_INSTALLATION. Installation of this pump kit is straightforward and designed for in-tank mounting without the need for complex modifications or drilling, allowing for a clean and professional setup.
_x000D__x000D_WARRANTY. This fuel pump kit is backed by a limited lifetime warranty.
_x000D__x000D_APPLICATION. Fits universal applications; some adaptation may be required to achieve proper installation.
Fuelab 20813
