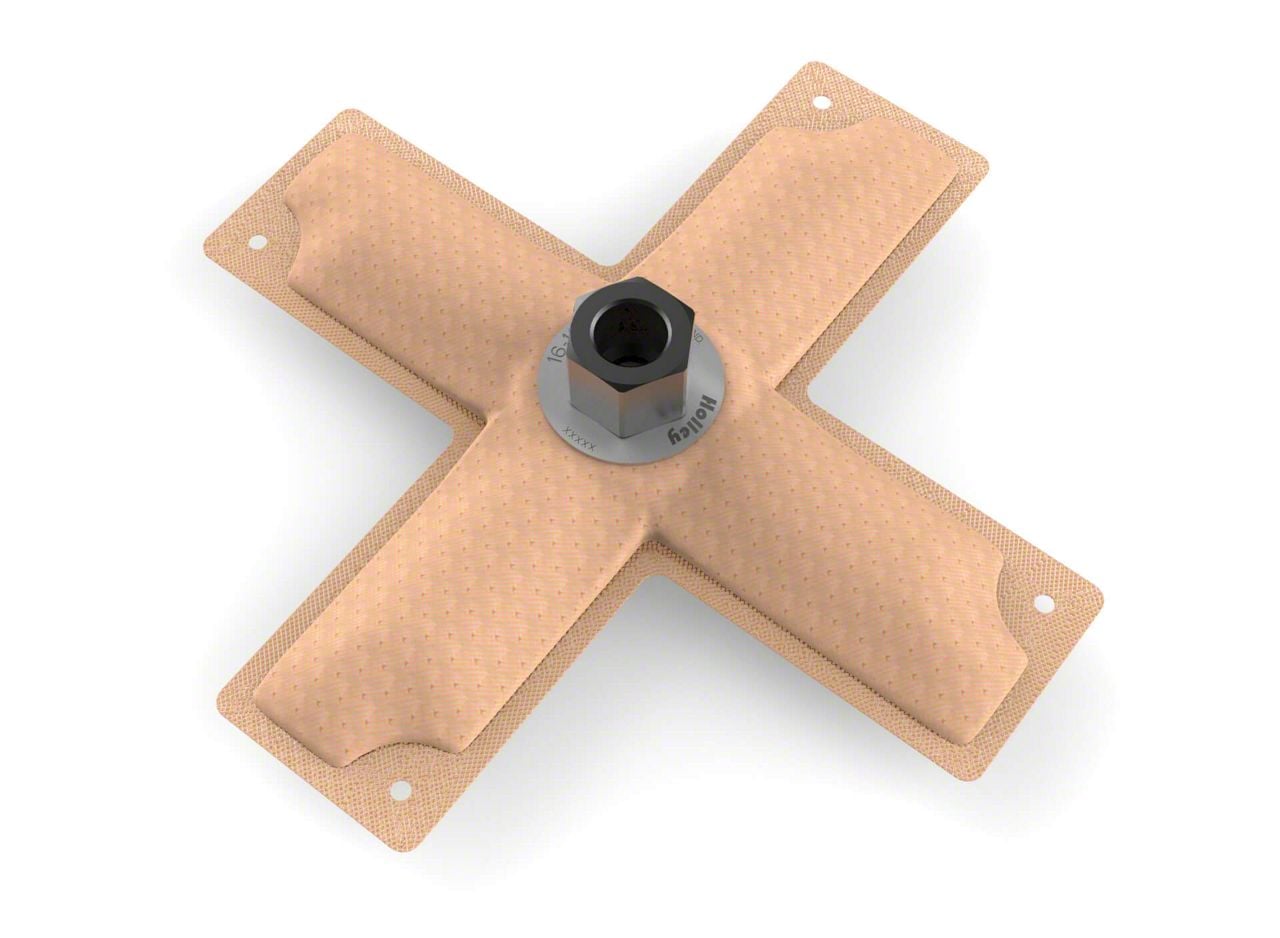

Holley Fuel Tank Pickup; HYDRAMAT (8X8 CROSS) CENTER OUT - 3/8 IN
Item CR4122
Sale
On Sale
-13% $285.26 Was $328.95
Military, Medical & First Responders
$14.26 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- Center Outlet Pick-Up With 3/8" NPT Fitting
- Fitting Location Designed For Universal Use
- Patent Pending Design That Solves Problems Associated With Traditional Fuel Pick-Ups In Stock Fuel Tanks And Racing Fuel Cells
- Reduces Potential For Air To Enter Fuel System Resulting In Improved Engine Performance And Reduced Stalling
- Effective During Hard Cornering, Acceleration, Stopping, Inclines, And Low Fuel Conditions
- Utilizes Surface Tension And Fluid Wicking To Draw Fuel From Almost Any Contacting Area
- Tiny Pores Seal Off When Uncovered, Channeling Fuel To Areas Still Submerged
- Large Coverage Area Allows Fuel Draw From Virtually Any Part Of Tank Or Cell
- Unique Internal Reservoir Maintains Fuel Availability Under Extreme Slosh Conditions
- Eliminates Need For Specialty Reservoirs, Sumps, And Pick-Up Pumps
- Acts As A 15 Micron Pre-Filter For Fuel Pump Protection
- Flexible Construction Allows Folding And Compression For Easy Installation
- Compatible With Alcohol, Ethanol, Methanol, And E-85 Fuels
- Works With Two-Cycle Oil Blends Up To 20:1 Ratio
- Not Suitable For Use With Most Oils Or Diesel Fuels
- Fits Flat Bottom Rectangular Style Fuel Cells With Minimum Dimensions Of 8 Inches Long And 8 Inches Wide Cross. For Best Performance, Return Fuel Should Be Discharged Near Pick-Up At Minimum 1 Inch Above Mat.
Description
Innovative Fuel Pickup. The Holley Fuel Tank Pickup; HYDRAMAT (8X8 CROSS) CENTER OUT - 3/8 IN is engineered to prevent fuel starvation by maintaining consistent fuel flow under dynamic driving conditions such as hard cornering, acceleration, and low fuel levels. Its unique design draws fuel from virtually any fuel contact area within the tank or cell, significantly reducing the risk of engine performance issues or stalling caused by air entering the fuel system.
Construction and Appearance. This product features a flexible fuel-wicking media with a beige finish, designed to be folded and compressed for straightforward installation through various fuel cell openings. Its internal reservoir and 15-micron filtration capability provide durability and protection for the fuel pump, ensuring reliable operation in high-performance environments.
Installation. Installation is moderately straightforward, requiring no specialty sealing paste or tape for the female NPT thread fitting, which simplifies the mounting process. For fixed stud mounting inside tanks, specialized stud kits are recommended but not mandatory for all applications.
Warranty. This product includes a manufacturer’s limited 90-day warranty.
Application. Designed specifically to fit flat bottom rectangular style fuel cells with minimum dimensions of 8 inches by 8 inches cross. For optimal performance, it is important that return fuel is discharged near the HydraMat pick-up at least 1 inch above the mat surface to maintain fuel supply consistency.
