(approx) 20 Minutes
Simple installation for anyone.
- Customer Submitted:
- How to Install Raxiom Headlight LED Conversion Bulb Kit - 9007 on your Mustang

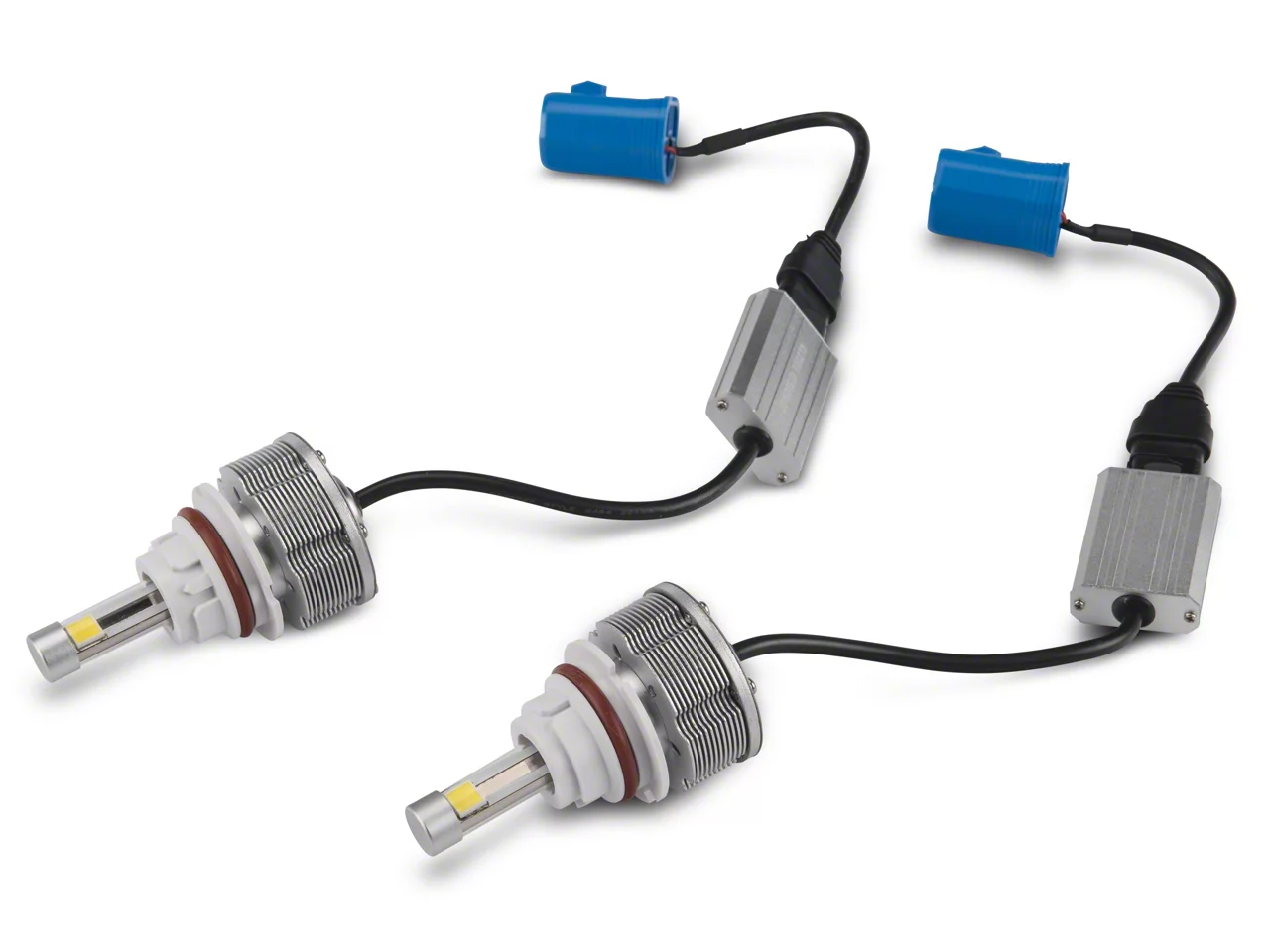

Hey guys. Today we're gonna be taking a look at and installing the Vividline Headlight LED bulb conversion kit for 1994 to 2004 Mustangs. This kit will fit all '94 to '04 Mustangs and it'll take your standard headlight bulbs and switch you over to an LED setup. The nice thing about this kit is it's a direct plug-in replacement. There's no wiring involved. Your ballasts [SP] are already pre-wired and you'll just plug the connection into your factory harness. This kit is inexpensive. It costs about 100 bucks and it's very easy to install, thanks to the plug-and-play design of it. I'll call it a one out of three wrenches on the difficulty meter, and I'll show you how to get these on your car now. So the install here is really pretty easy. We're gonna start by popping our hood and we're gonna leave the headlight and everything in place. We can get access to the bulb from right behind the headlight. So you don't even really need any tools. All right. So once your collar is rotated and free, it'll slide back just like this, then you'll be able to wiggle your headlight out of the back of the housing. Once that's done, you're going to pull it out and up. Okay. So from here we're going to disconnect the bulb from our factory housing which is right here. If you guys can see, you have a blue clip right here. So I'm just going to pull up on the corners of the clip. Disconnect the bulb. And our black plastic piece will come with us. So it's gonna be the same thing on the other side. We're gonna grab our black plastic collar here. We are going to rotate that to the left, push that back. Once that's pushed back, we'll be able to wiggle the bulb out of the back of the housing. Okay. Once it pops free, just pull it up and away from the headlight. Then at this point, you guys can see the blue clip right here. This is your factory harness. So we are going to disconnect the bulb from the factory harness. I'm going to pull up on the edges of the clip and disconnect the bulb. Then your black plastic piece will off. So these are your new LED headlights compared to your factory headlights. You can see there's a little bit more going on with the LED setup here. But the nice thing about this is that these are a direct plug-and-play replacement. So you have your LED bulb which is then gonna plug into your ballast. The ballasts are really nice because they're already wired. So you don't have to do any wiring. You're literally gonna plug in your LED bulb into your ballast and then your ballast into your factory harness. That's a great thing about these headlights. So a lot of people go to LED lighting because it's brighter than your factory setup. It's brighter, it lasts longer, these are rated for 100,000 hours of continuous use, and it takes less power to run. Before we move over to the car, we're actually going to connect our LED bulb to the ballast. So in the LED bulb connection, you guys can see there's a little notch right here. We're gonna line that notch up with the key that's in the ballast. So you're just gonna go ahead, make sure they're lined up. Press them together. Guys, you'll see you'll have this. You're gonna slide this down and over and just thread it into place. All right. So we're gonna do the same thing with the other side. You'll see on the LED bulb there is a little notch right here in your connection. You're gonna line that notch up with the key that's on the ballast side. So you can see you have a little key right in there. Okay. So we'll make the connection, then we'll take our threaded collar, slide it down, and thread it into place. So at this point we're going to take our new LED harness. We'll plug the blue connection into our factory housing right here. Okay. It'll clip into place. And I will say that as far as your ballasts goes, you guys have a little bit of extra wiring here. You can mount your ballast if you want to. I'd recommend simply zip tying it into place. So you're gonna feed everything down back behind the headlight housing. All right. So now we are going to slide the bulb into the back of the housing. Just know that it is a little bit of a tight fit with the O-ring here. So you just have to wiggle it to get it into place. All right. And once it's seated into place, that's all it's gonna take. You can move on to the other side. All right. So just the same as the other side, we'll grab our factory harness. Take our new connection. Plug that into place. And we'll take our ballast and all of our harness. Put it down behind the housing. Feed our LED bulb into place, and just wiggle it into the back of the headlight housing. All right. Once it's lined up, it'll press it into place and the O-ring's gonna snugly hold it into the back of the headlight housing. All right, guys, that's gonna wrap up this review and install. Keep in mind you can always check out this LED conversion kit more right here at americanmuscle.com.
Subscribe to our YouTube Channel
Features, Description, Specs & Installation
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
(approx) 20 Minutes
Simple installation for anyone.
What's in the Box
10 More Questions
