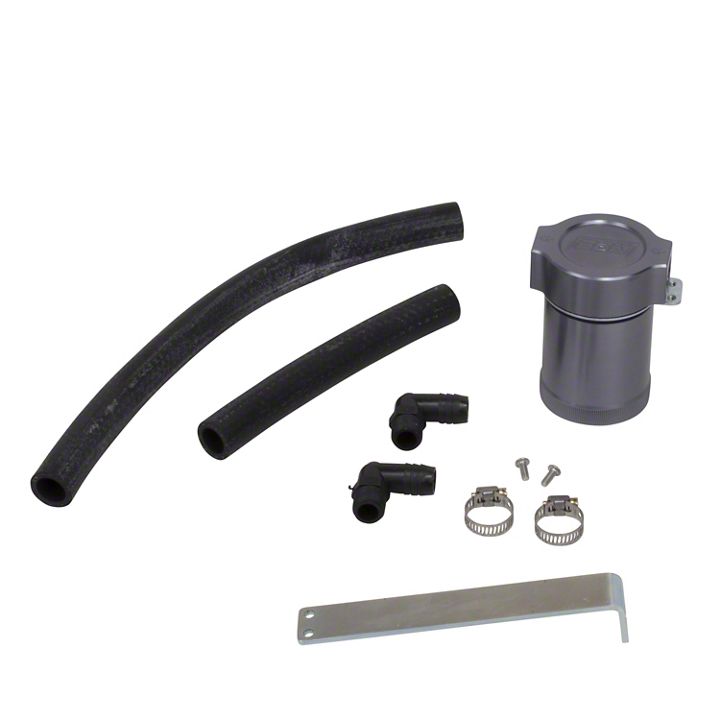

How to Install BBK Titanium Oil Separator - Passenger Side (11-17 V6) on your Ford Mustang

Installation Time

30 minutes

View PDF Guide
American Muscle
Shop Parts in this Guide

FOLLOW THESE INSTRUCTIONS CAREFULLY TO ENSURE CORRECT FITMENT AND OPERATION

PLEASE NOTE: THIS IS A PASSENGER SIDE OIL SEPARATOR

STEP 1: Remove the engine cover by firmly pulling it upwards to release it from its mount­ing points.

STEP 2


Release the (2) quick connect fitting on the intake manifold and valve cover and remove the vacuum hose from the vehicle.

STEP 3


Install the (2) vacuum hoses supplied in the kit onto the BBK oil separator can­ister.

NOTE: When installing the hoses be sure that the BBK logo on the oil sep­arator is facing towards you and install the big curved hose on the right side and the straight bent hose on the left side.

STEP 4


Once the oil separator is in place press the quick connect fittings back onto the barb fitting on the intake and valve cover.

STEP 5


Re-install the engine cover.

MAINTENANCE

UNSCREW THE BOTTOM PORTION OF THE BBK OIL SEPARATOR FROM THE LID DISPOSE OF OIL PROPERLY.

REMOVE ROUND FILTER SCREEN FROM THE LID AND CLEAN WITH DEGREASER OR SOLVENT AND LET IT AIR DRY.

ONCE DRY RE-INSTALL THE ROUND FILTER SCREEN INTO THE LID AND SCREW THE BOTTOM PORTION BACK ONTO THE LID.

(CLEAN EVERY 10,000 MILES OR EVERY OTHER OIL CHANGE)
