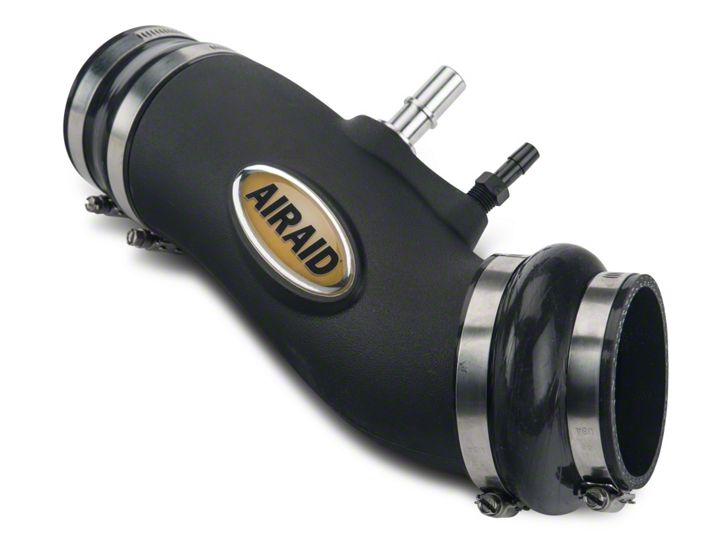

How to Install Airaid Modular Intake Tube on your Mustang

Installation Time

1 hours

American Muscle
Shop Parts in this Guide

Full color instructions can be viewed on our web site at Airaid.com. If you need any assistance please call 1-800-858-3333 to speak with a representative in our Customer Service Center before returning the product.


1. Disconnect the negative battery terminal


2. Carefully depress the connector lock tabs, and disconnect the crank case breather line and the brake aspirator line if equipped, (AT models only).


3. Loosen the hose clamps on the factory intake tube and remove it.


4. Install the Grommet and Fittings into the Modular Intake Tube as shown. A) All models will require the use of the 5/8” Fitting and the 5/8”Grommet. B) Automatic transmission equipped vehicles will also use the Barbed Fitting. Apply the Airaid Decal as shown.


5. Manual transmission vehicles will not need the Barbed Fitting and will use the Threaded Plug.


6. Slide the Hump Hose, one #48 Clamp, and one #52 Clamp onto the Intake Tube as shown. Do not tighten the Clamps at this time.


7. Slide the Reducer, one #48 Clamp, and one #52 Clamp onto the other side of the Intake Tube as shown. Do not tighten the Clamps at this time.


8. Unclip the factory air box lid and slide it off of the tabs in front. If you are installing an Airaid Jr. kit, install the Airaid Premium filter at this time. Leave the air box lid unattached for now.


9. Slide the Tube assembly onto the throttle body.


10. Slide the air box outlet into the Coupler. Connect the breather lines from step 2 to the Airaid Intake Tube. Rotate the tube if necessary to clear the Hood and valve cover and tighten all Clamps.


11. Reattach the air box lid.

Double check your work. Make sure there is no foreign material in the intake path. Make sure all clamps, hoses, bolts, and screws are tight. Reconnect the negative battery terminal.

Thank you for purchasing the Airaid Intake System. Contact Airaid @ (800) 498-6951 8:00 AM - 5:00 PM MST weekdays for questions regarding fit or instructions that are not clear to you. Your Airaid Intake System was carefully inspected and packaged. Check that no parts are missing, or were damaged during shipping. If any parts are missing, contact Airaid. The air filter element is protected from direct exposure to water and debris; care should be taken not to drive through deep water. WATER INGESTION IS THE DRIVERS RESPONSIBILITY! The air filter is reusable and should be cleaned periodically.
