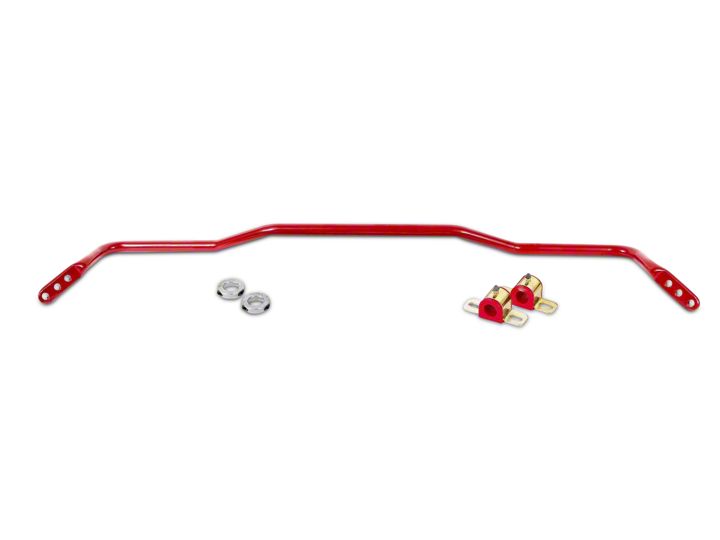

How To Install a BMR Adjustable Sway Bar - Red - Rear - on your 2015-2016 Mustang

Installation Time

2 hours

Tools Required
  • Hydraulic jack and jack stands
  • Wrenches and Sockets – 10mm, 13mm, 18mm
  • Allen wrench – 6mm, 3/16”
American Muscle
Shop Parts in this Guide

SB045 INSTALLATION INSTRUCTIONS


INSTALLATION:

  1. Lift the rear of the vehicle and safely support with jack stands under the cradle.

  2. Using a 10mm wrench or socket, remove the brake hose bolts out on the sway bar end link brackets as shown in IMAGE 1


3. Using the 6mm Allen wrench to hold the center of the end link, remove the nut using an 18mm wrench as shown in IMAGE 2. Duplicate for the other side.


4. Using a 13mm socket, remove the (4) bolts that retain the sway bar bushings to the sub-frame. Remove the sway bar.

5. Assemble the BMR supplied polyurethane bushings and saddles onto the new sway bar and install the sway bar using the factory mounting hardware. Assemble the 2-piece aluminum thrust washers over the bar on the inside of the bushings as shown in IMAGE 3. Tighten with a 3/16Allen wrench.


6. Torque mounting bolts to 24 ft/lbs.

7. Position the supplied 2-piece clamps over the sway bar on the inside of the mounting bushings. Slide them up against the bushing as shown in IMAGE 4 and tighten using a 3/16” Allen wrench.


8. To re-use the brake hose brackets on
your BMR sway bar, rotate the
bracket as shown and mount as
illustrated in
IMAGE 5. Tighten the
end link nut using the 6mm Allen wrench and 18mm wrench. Tighten the 10mm brake hose bolt.

9. Using a grease gun, lube the polyurethane bushings with synthetic grease. Lower vehicle.

10. Lower vehicle.


WWW.BMRSUSPENSION.COM

This product is an aftermarket accessory and not designed by the vehicles manufacturer for use on this vehicle. As such, Buyer assumes all risk of any damage caused to the vehicle or person during installation or use of this product.
