How to Install a C&L Throttle Body Spacer on Your 2011-2016 GT Mustang

Installation Time

1 hours

Tools Required
  • Pliers
  • 8mm Socket
  • Ratchet
  • Socket Set
American Muscle
Shop Parts in this Guide

Step 1:

Remove the engine cover, firmly  pull on the corners to dislodge the cover from its rubber mount. Loosen the hose clamp that holds the intake tube to the air box.


Step 2:

Loosen the hose clamp that holds the intake tube to the throttle body. Then remove the 3 vacuum hoses from the factory intake tube. Using plyers remove the sound tube from the factory intake tube.


Step 3:

Unclip the electrical connection on the throttle body. Then loosen the (4) 8mm bolts holding the throttle body to the intake manifold.


Step 4:

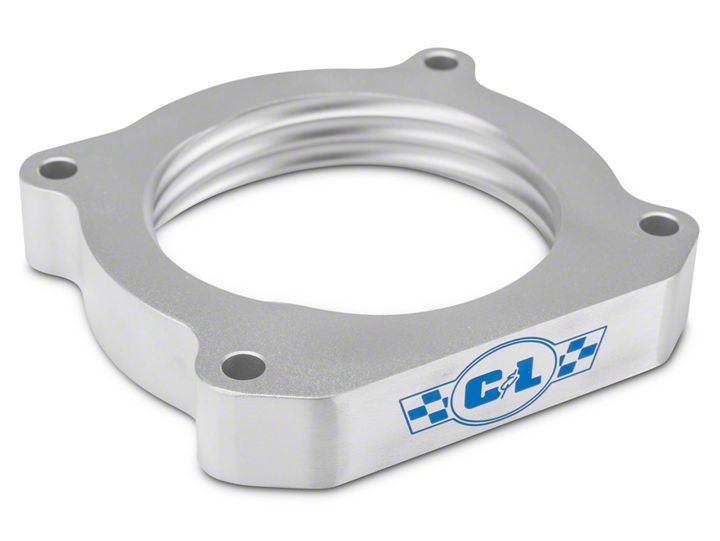

Install the throttle body spacer followed by the throttle body. Tighten everything with the provided bolts.


**Note: If unused, plug the 1/8NPT holes with the provided plugs.
