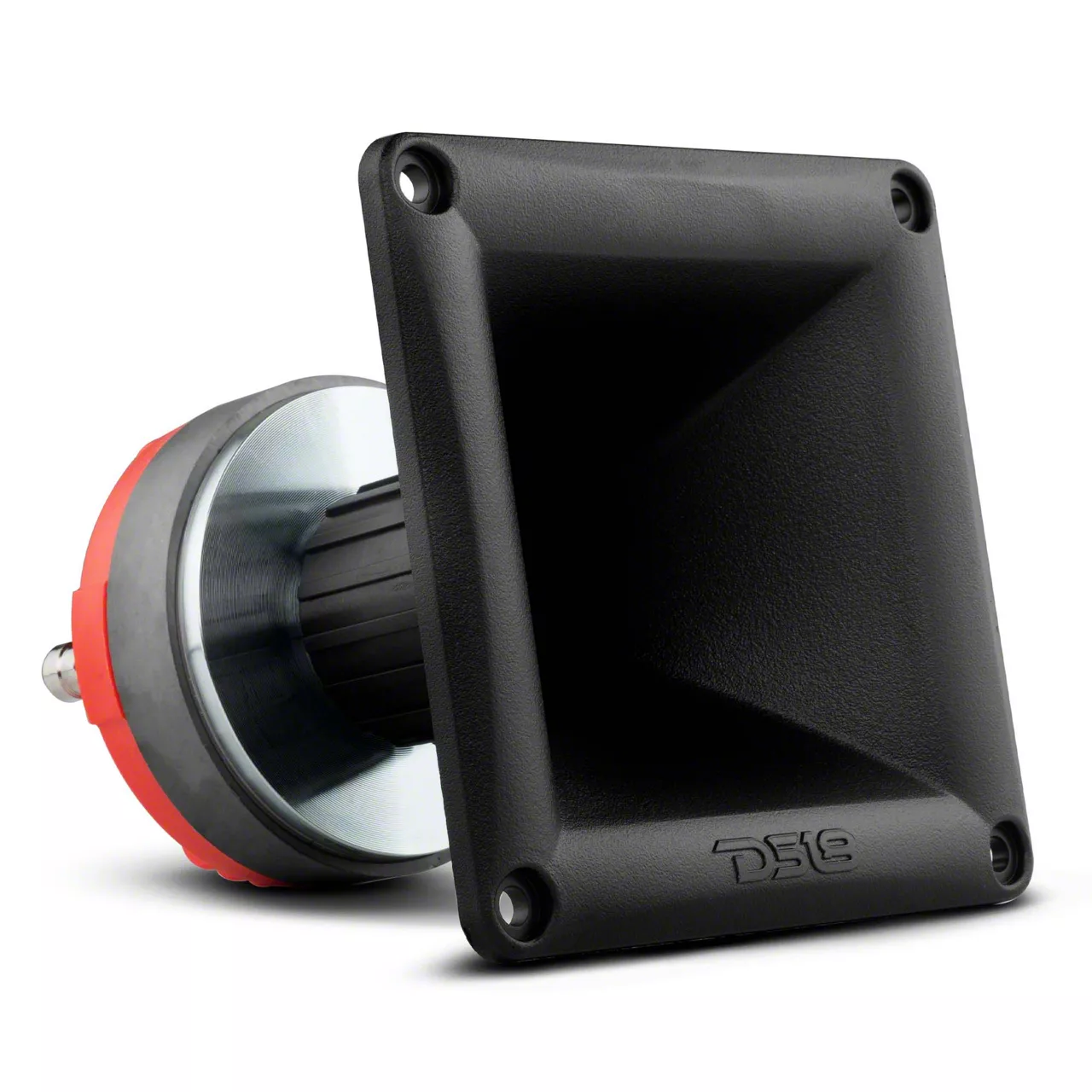

DS18 1-Inch Driver Horn Kit; 120 Watts; Black (Universal; Some Adaptation May Be Required)

Item U60570-AM
Product Image
Our Price

$33.95

Military, Medical & First Responders $1.70 Available in AM Cash Rewards.
Confirm Eligibility
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

      • Compression Driver With Horn
      • 1 X PRO-DR1P
      • 1 X PRO-H44/BK
      • RMS Power: 120 Watts (240 Watts Peak)
      • Impedance: 8 Ohm ~ 107.3dB
      • Ferrite Magnet
      • Nominal Impedance 8 Ohm
      • AES Power Handling 60W
      • Program Power Handling 120W
      • Peak Power Handling 240W
      • Sensitivity (1w/1m) With Horn 107.3dB
      • Frequency Response 800Hz - 20kHz
      • Recommended Hi Pass Crossover 1kHz
      • Voice Coil Diameter 1 Inch / 25.4mm
      • Voice Coil Former Material Kapton
      • Winding Material CCA
      • Diaphragm Material Phenolic
      • Magnet Material Ferrite
      • Magnet Weight 0.38 Oz / 11g
      • Body Material Aluminum + ABS
      • Nominal Diameter 4.5 Inch / 115mm
      • Throat Diameter 1 Inch / 25.4mm
      • Sound Coverage 45 X 45 (Square)
      • Body Material ABS/PC Injected
      • Color/Finish Black
      • Overall Diameter 4.52 Inch / 115mm
      • Overall Depth 4.88 Inch / 124mm
      • Mounting Depth 4.5 Inch / 116mm
      • Mounting Hole Diameter 3.26 X 3.26 Inch / 83 X 83mm
      • Bolt Pattern (Horn) 4 X 5.5mm / 100.5mm
      • Gross Single Unit Weight 2 Lbs
      • Single Unit Box Dimensions W X L X H 4.75 X 4.75 X 5.75 Inches
      • Quantity Of Units In Master Carton 12
      • Gross Master Carton Weight 25.5 Lbs
      • Master Carton Dimensions W X L X H 15 X 10 X 12 Inches
      • Fits Universal; Some Adaptation May Be Required

      Description

      High Performance Driver. The DS18 1-Inch Driver Horn Kit, rated at 120 Watts RMS (240 Watts peak), is designed to reproduce frequencies from 800 Hz to 20 kHz with 107.3 dB sensitivity (with horn), making it suitable for improving mid to high-frequency audio clarity.

      Construction and Appearance. It features a phenolic diaphragm, 1-inch Kapton voice coil former with copper-clad aluminum winding, and ferrite magnet housed in an aluminum and ABS body. The horn is constructed from ABS/PC injected plastic with a black finish, combining durability with lightweight design.

      Installation. Installation is facilitated by mounting holes and bolt patterns suitable for various audio configurations. Some adaptation may be necessary depending on the setup, but standard mounting procedures apply.

      Application. Fits universally with some adaptation; suitable for a variety of car audio setups aiming to enhance mid to high-frequency sound reproduction.

      DS18 PRO-DR1PK44
