How to install a Raxiom Modified Turn Signal Flasher on your 1996-2004 Mustang

Installation Time

15 minutes

Tools Required
  • A good flashlight or other light source
American Muscle
Shop Parts in this Guide

Installation Instructions:
1. The turn signal flasher is located above the OBD II port on the driver’s side, underneath the dash and closer to the center console. The photo below shows what the OEM flasher unit looks like: yellow box on top of the red and black connector.

2. Pull the yellow relay unit down towards the OBD II port and out of the bracket holding it in place.

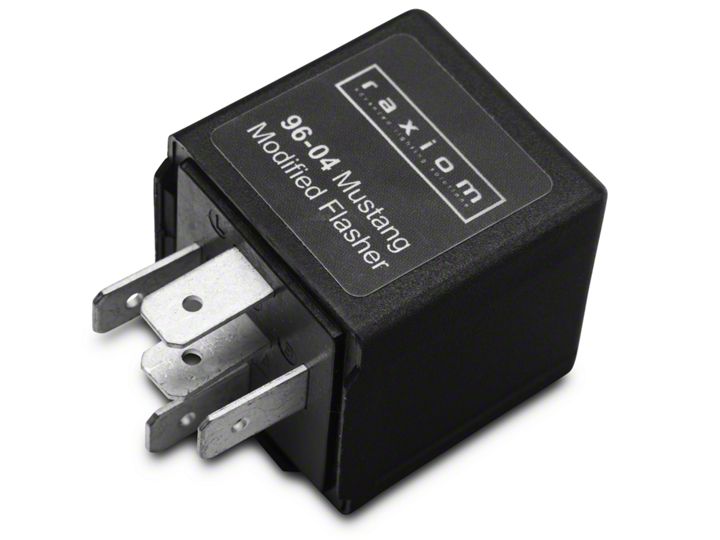

3. Unclip the yellow OEM flasher unit and replace it with the Raxiom Modified Turn Signal Flasher. Be sure to line up the blade connectors in the same manner as the OEM unit.

4. Reattach the modified flasher unit to the bracket underneath the dash.

This guide applies to Vehicle years: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004 and Submodels: Bullitt, Mach 1, V6, Cobra, GT
