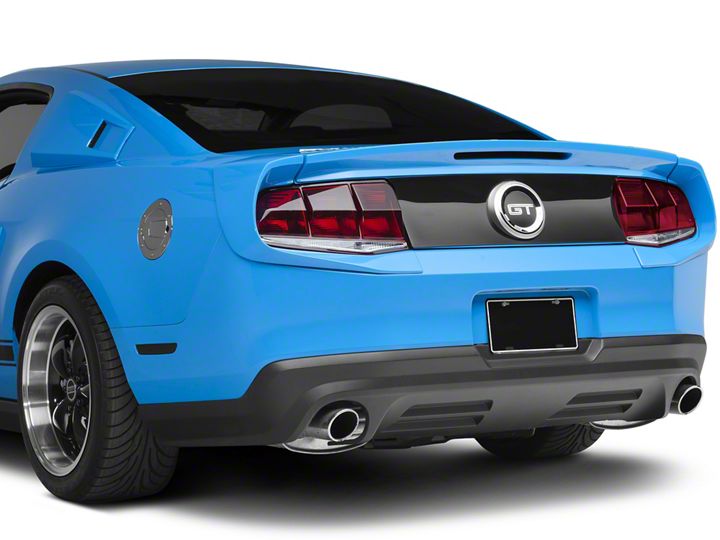

Mustang Rear Blackout Panel (2010-2011) - Installation Instructions

Installation Time

30 minutes

Tools Required
  • Basic Hand Tools Required
American Muscle
Shop Parts in this Guide


Snap-On Mounting:

1. Trial Fit - Hold back panel in place to verify the normal good fit.

2. First clean the mounting area with a mild soap & water solution. Rinse and dry the area.

3. Next, wipe the mounting area with the provided alcohol Wipes where the tape will contact the body. NOTE: Solvents or cleaners not formulated for acrylic plastic may scratch, craze, or fog the panels. A non-abrasive automotive wax may be used for protection.

4. Peel and fold approximately one inch of the red lining from the mounting adhesive tape at each corner. Line up the panel with locating marks as described in step 1 and press into place. Peel away the remaining red lining and press firmly along the entire mounting area where the tape contacts the body.

5. Allow the adhesive to "Cure" at least 24 Hrs before washing the vehicle.

Installation instructions provided by GTS-Xenon.

This guide applies to Vehicle years: 2010, 2011, 2012 and Submodels: Boss 302, V6, GT, GT500
