(approx) 4 Hours
Mechanical expertise or professional installation required.
- Customer Submitted:
- Ford Racing Mustang K-Springs (05-10 GT) - Installation Instructions
Hey, guys, Stephanie with americanmuscle.com, here with the Eibach Sportline lowering springs for the 2005 to 2010 GT Mustangs. We're gonna be talking about a few different things with these springs, but mostly we'll talk about what you can expect from these springs in both the performance and looks categories, and we're also gonna talk about the install as well. I'll talk more about the install later, but you're looking at a two out of three wrenches in the difficulty meter. The Eibach Sportline lowering springs are gonna be a good option for the GT owners out there who are looking for a spring that'll give an aggressive drop and more aggressive handling. This spring is perfect for those owners out there that are willing to sacrifice some of the nicer amenities of a soft ride quality in order to gain one of the biggest drops from a lowering spring. Lowering springs have a big impact on these cars. They can completely change the looks of the car without having to change a lot, and the Sportlines offer one of the largest drops for these cars. The Sportlines are gonna drop the GT about 1.6 inches in the front and 2 inches in the rear. Like I said, it doesn't get much lower than this for the S197 from a spring, and this is an aggressive drop. The drop will change slightly depending on if your car is a coupe or a convertible, due to the weight differences between the models. Depending on your wheel and tire setup, this drop is going to eliminate nearly all of the wheel gap that the GT has from the factory and it's gonna leave the car sitting just above the wheels and tires. Now, a one-inch drop is pretty standard across the board for the S197, and I'd say that one inch lower is pretty significant for these cars. I mean significant in both looks and performance changes. So that means that the over one-and-a-half inch to two-inch drop that the Sportlines offer is one of the greater drops that you're gonna be able to find. This drop will lower the car's center of gravity enough to create more track-like handling capabilities. These springs are really gonna reduce squat during acceleration and reduce wheel hop as well. You're also looking at much less body roll during cornering and less nosedive during braking. Lowering the center of gravity this much means that these springs are really gonna change and tighten up the handling of these cars. Now, if you think that this is too much drop or if you really want to hang on to some of those softer ride quality characteristics, Eibach also makes a Pro-Kit lowering spring. Those springs drop the car a touch over one inch all the way around and they will ride differently than the Sportline kit, a little bit more comfortably. To really lay this out, I would say that the Sportline springs are more aggressive and better suited for some track use or those that are really looking for high performance and forceful looks. They're an all the way around more aggressive spring. The Pro-Kit springs, on the other hand, are a great option for those that would like to lower the car and reduce wheel gap but that want to keep the ride quality and streetability in the forefront of their mind as well. This doesn't mean that the Sportline kit won't work on a daily driven car. It'll work just fine. It really all comes down to your personal preference and what you want out of the springs. The Sportline springs, like the Pro-Kit springs, are still a progressive spring. Progressive springs concentrate on providing balance at all times in order to improve handling. Like I said earlier, these springs do provide an aggressive drop but they are still gonna work with both the factory wheels and the preconfigured wheel and tire kits that are on the site. These springs aren't gonna make the car difficult to drive places but you will need to be a little bit more careful. They are gonna be stiffer than the factory springs as well, so you will notice some more road noise. But, I wouldn't say that these give a bad ride quality at all, it's just not as soft as factory. I do want to say that a lot of times when you're shopping for lowering springs, you're also shopping for things like adjustable caster camber plates and a new set of both shocks and struts. In this case, I wouldn't say that caster camber plates are necessarily required, but I will say that a one-and-a-half inch drop is about the limit of where you would need a set of adjustable CC plates in order to get the alignment within spec. It is going to be close, so a set wouldn't be a bad idea at all. At the end of the day it never hurts to have caster camber plates, so if you've got the extra cash, I'd say go ahead. As far as shocks and struts, this goes back to the drop too. I'd say that you can get away with the factory shocks and struts in this case, for at least a little while anyway, but it is gonna come back to how many miles that you have on these components. If your shocks and struts have a ton of miles on them, I would replace them, but if they don't, you can always consider picking up a new set anyways. When it comes to price, these springs are gonna be one of the middle of the road options. They're not the most expensive but they aren't the least expensive either. They cost just under $200, which is slightly less expensive than the Pro-Kit springs. If you're just looking to get your car lower and you aren't concerned with ride quality, there are some other options on the site that cost a little less and will get you where you need to be. On the other hand, if you are concerned with keeping a nicer ride quality and getting as low as possible, then you're shopping in the right place.So the install here is going to take about four hours. I'm gonna call it a two out of three wrenches on the scale. You will need some knowledge to complete this install, so I'd recommend having a knowledgeable helping hand or taking this to a shop for the install, especially since it's always a good idea to get an alignment after the install anyways. This install can be done on jack stands if you don't have access to a lift, but as usual, a lift would be your best bet here. You're gonna need a few tools, including a spring compressor, so make sure you have that before you start the install. You're gonna need to get down to the spring and strut assembly, so everything like the wheels, brakes, and ABS lines will need to be moved out of the way so you can pull the assemblies out of the car. The spring compressor will help you remove the spring from the strut and install the new front springs, which are compressed and installed the same way. The strut assemblies go back in the same way they came out, and the install is the same for both sides. The rear is nearly the same. You will need to disassemble some items to get to the springs, but ultimately you'll be able to lower the rear axle enough to the point where the springs will be free. Just like the front, the rear springs install the same way that they were uninstalled. You install your rubber insulators and your new bump stops are installed, and after the new springs are in, you can begin reinstalling the shocks and everything else that you uninstalled. That's about all it's gonna take. Like I mentioned earlier, a fresh alignment after the install isn't a bad idea.Wrapping things up here, the Eibach Sportline lowering springs offer a spring with an aggressive drop and improvements in handling to make for a car that feels track ready. They drop the car about 1.6 inches in the front and 2 inches in the rear and will leave the car sitting just above the wheels and tires. The springs are not difficult to install, they're in the middle of the pack as far as pricing goes, and you can check them out more online right here at americanmuscle.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Fitment: 2005 2006 2007 2008 2009 2010
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
May 22, 2020
I just received these springs with much anticipation. They appear to be made of very good construction and will do all that Eibach claims. I look forward to testing them on a racetrack track as soon as possible. They did come with some minor scratches that exposes the metal but some touch up paint should remedy that.Helpful (0)
March 30, 2020
Great Handling and Stance
I bought these because my suspension was worn out. I installed with KONI shocks and struts. After installing, the rear axle shifted right about 1 1/2 inches. My adjustable panhard brought it back in line. The handling is really fun and stays flat during acceleration, curves, and braking. I can hear some driveshaft whine on the highway so my adjustable upper control arm was adjusted to correct pinion angle again. The stance turns heads everywhere I go. It looks so aggressive and serious. It sits low. I’m 6’4 and 275#. If I cross a bridge on the interstate doing 70, it will bottom out on my side. Speed bumps at school? I gotta hit them crossways and still scrape. Elevated entrances and exits? Scrape and scrape. But this is a given with any lowered vehicle. The handling and looks far out weigh the inconveniences. If you buy these, get aftermarket shocks and struts, an adjustable panhard bar, and an adjustable upper control arm. The front really needs adjustable end links to get zero preload. The factory end links are short and puts tension in the front sway bar. It sounds like a can of worms but I bought a piece at a time over a year and did it all at once with the exception of front end links. The main thing is when I look at that stance and when I drive it down the road I am smiling.Helpful (3)
June 16, 2019
Did the trick
Lowered the car to a perfect height, wheel gap gone, top of tire is just under fender lip, looks awesome and got rid of the factory marshmallow ride on my convertible GT combined this with a panhard bar and on ramps are a lot more confidence inspiring, not that I hit them above the speed limits ;)Helpful (3)
June 10, 2019
NOT FOR CONVERTIBLES
Not something they tell you, but these, or any lowering springs will not be easy to install for convertibles. Not impossible, but a pain for sure. The front springs follow the usual installation process laid forth in the usual videos/manuals for lowering spring installs The rear, however, is a different story. For convertibles, there are two metal support braces that run from the rear of the car to the sides to provide additional frame support. These make it impoosible to lower the rear axel enough to remove the stock springs. YOU WILL HAVE TO RENT SHOCK COMPRESSORS to remove the stock springs once you lower the rear axel as far as it will go.Helpful (4)
May 27, 2019
Eibach Sportline Lowering Springs
they are great my car looks so much better and my car handles like a race car so they are well worth the moneyHelpful (2)
May 03, 2019
Eibach Lowering Springs
I absolutely loved these springs! The install was easy and the car rides so smooth and doesn’t bounce!Helpful (2)
February 20, 2019
First after market springs, no regrets
Exactly was I was looking for. An aggressive stance that makes the car look totally different, first day had them installed I got compliments left and right, awesome set of springsHelpful (6)
February 20, 2019
It's like it's 2006 all over again!
I've fallen in love with my car all over again! The 2005-2009 model years look like they should be at this height from the factory. Other than having to be a little cautious with speed bumps and how and where you exit places - I have no complaints about the springs. It's a minuscule price to pay for amazing improvement of the car's driving dynamics. Whether cruising down the highway, or owning the curves.. can't enough of driving my car!Helpful (7)
February 16, 2019
Looks good everything bolted right up. Very happy with the purchase and the looks. Handling is even better.Helpful (5)
January 18, 2019
Sportlines are the answer!
If you’re looking to lower your mustang these are the springs to use. Simple install and great results. Install takes about 2 hours with jack and stands. A little over an hour on front and 20 minutes for the rear. Install videos are everywhere. I wouldn’t take to a shop unless you live in a cave and don’t have access to tools.Helpful (7)
Will these work with stock struts and springs, or will the stock parts bottom out?
You can use factory struts and shocks, however they will decrease in ride comfort and quality, as well as wear quicker.
Has anyone who installed these springs run into any driveline vibration issues? Should I plan to purchase an adjustable upper control arm when I have these springs installed on my 2008 GT? How important is it to get the proper pinion angle??
While driveline vibration issues are not common, it is not a bad idea to correct pinion angle with an upper control arm to prevent unnecessary wear, as well as to prevent the possibility of driveline vibrations.
I have a 2008 GT with 19" tires (255 front and 275 rear). If I go with the new caster camber plates, will I need upper or lower control arms to dial in the pinion??
You should not need new control arms. Though, depending on if the bushings or arms in general are worn, it would be a good idea to eventually replace them.
Is there anyway that I could fit my 315s on my 20x11 wheel in the back with these springs on?
Would I need to get a alinement after the installation?
Yes, we recommend an alignment after installation.
You would have the same drop on your Shelby GT
Yes, these will work with convertibles, and it would be recommended to get camber bolts or caster camber plates yes.
You may experience some rubbing issues in the rear with that tire size.
It would be recommended to get camber bolts or caster camber plates yes.
These will work without rubbing yes.
You may see some rubbing with the 295/55/15 tires with the 2" drop in the rear.
It would honestly depend on the size tires used with the 20 inch wheels. A 1.6"/2.0" drop is fairly steep and may cause rubbing issues. We recommend measuring the gap between the fender and tire to determine clearance.
Generally speaking, an adjustable panhard bar is recommended when installing lowering springs.
(approx) 4 Hours
Mechanical expertise or professional installation required.

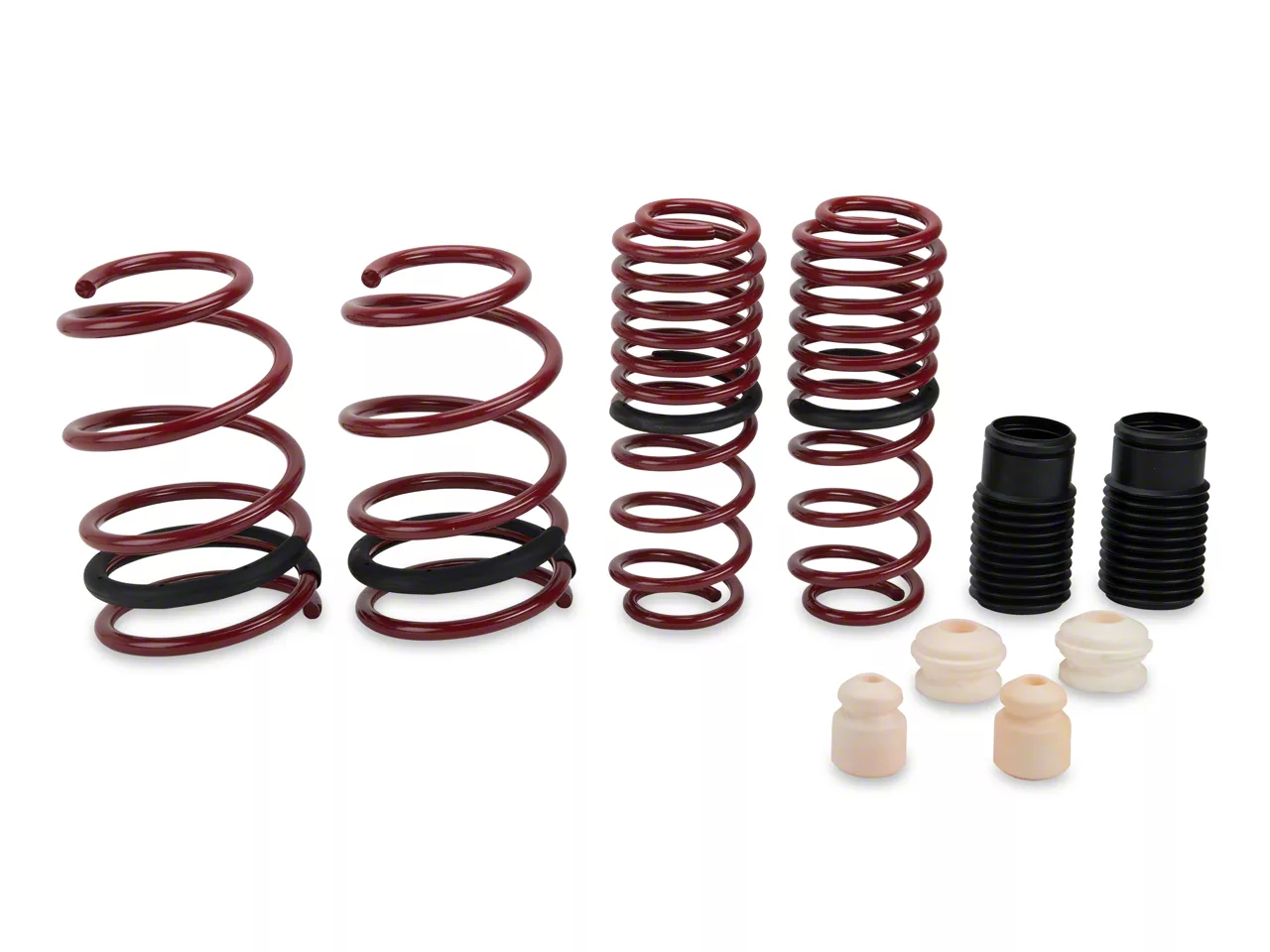

What's in the Box
|Spring Rate:||Front: 126-274 lb/in. |
Rear: 86-240 lb/in.
|Year:||2005-2010 GT||Model:||Coupe |
|Progressive or Standard:||Progressive||Estimated Drop:||1.6"F / 2.0" R |
1.6"F / 2.3" R
