Review & Install Video
Hey, guys, Stephanie with americanmuscle.com, here with a review of these MBRP Long Tube Catted Headers, available for 2015 and up, S550 GT Mustangs. In this video, we're gonna be looking at a few different things in regards to these headers. We're gonna be talking about the materials of construction of the headers themselves, and the install too. We'll talk more about this later, but I can tell you right now, the Long Tube Headers make for a difficult install. So, I'm gonna call this one a three out of three wrenches in the difficulty meter. The MBRP Catted Long Tube Headers are gonna be a good option for someone looking for a natural finish long tube, that's gonna maintain the use of cats [SP], and make way for a three-inch aftermarket catback.
The connection pipes that come with these headers are three-inch catted pipes, which means that you'll need a three-inch catback. Long tube headers are gonna offer both performance and sound gains, but the end result of your headers will depend on the rest of your set up. The runners on these particular headers are one and seven-eighth inch, which is slightly different than the one and three-quarter inch offering. Traditionally, you see forced induction cars running the larger runners, and then [inaudible 00:01:03] cars running the smaller runner, but I wouldn't really say that that's a hard and fast rule, especially with the new Coyotes.
So, you don't have to have a blower to run the larger diameter like these headers here, you just need to keep in mind your current mods and the goals you have for your car when you're looking around, as well as what going with this size runner will do to your power band with the mods that you have. If you have some bolt-ons and you're there still NA, you might see a hit on your low end torque, but once you spin the coyote motor up, the larger diameter is gonna help keep things moving. So, what you're gonna see are top endings. Getting into the specifics here, these are a 304 stainless steel header that have a natural or raw finish, which is gonna be different than a chrome or ceramic coated header.
It obviously doesn't have the polished appearance that a chrome header would have, and while these don't have a ceramic coating either, they are made from that 304 stainless steel tubing, so you won't have to worry about corrosion. Not to mention you get to see the beautiful welds since it's had that raw finish. And this is mandrel bent tubing, which is gonna help with smoother air delivery. The primary tubes then merge down to a three-inch collector, and MBRP has these header flanges up there that are laser cut and they do that to prevent leaks and create a good fit.
Then you have your connection pipes here. Like I said earlier, they're three-inch and they are catted. These are high fluid race cats and require a three-inch catback to be bolted up to them. And if you didn't know already, when you change your header set up to a long tube set up, you also need to change your mid-pipe to a shorty mid-pipe, in order to work with the long tubes. So just keep that three-inch requirement in mind when you're trying to pick out your catback, or at least your mid-pipe. If we move on to price, as we all pretty much know, or you know if you've been shopping for long tubes, they're pretty much gonna be a solid investment. They're pricey and they're difficult to install. The option from MBRP, since they are a higher quality item that's more at the top of the food chain, are gonna be on the more expensive side.
The one and seven-eighths inch option that we have here, is gonna be slightly more expensive which isn't unusual to see. You do tend to see the larger runner costing more than the smaller runners, but not usually by very much at all. Either way, you're looking at spending between $1,300 and $1,400 for a set of these. But do keep in mind that you still need a shorty mid-pipe in order to install these, so you can figure on purchasing that as well. And that's why I called long tube headers an investment earlier. But you do have to keep in mind all the benefits and power that you'll be getting from this set up, and to put things in perspective, it's not just MBRP that's gonna be expensive. You're gonna be looking at headers costing over a grand anyways no matter what brand you go with.
As for the install on this one, long tubes are always gonna be a difficult install. I don't say this often, but if you don't have a helping hand or you don't have much experience, it might be better just to take the car to a shop for the install. If you do tackle this yourself, it's gonna be a full three out of three wrenches on the scale, and a day in the garage, especially considering that you'll be installing a catback with these headers. You can do it on a jack and jack stands, but a lift would make it easier, for sure.
You're gonna need your toolbox for this one, [inaudible 00:03:54] different sockets, wrenches and extensions. You're looking at things like disconnecting the steering shaft, dropping the starter, and removing a motor mount. A lot of this install obviously requires working in some pretty tight areas, so while everything is straightforward, getting access and maneuverability in these areas is actually tricky, which is why you need to pull the motor mount on one side, so you can raise the motor slightly with a jack to give you a little bit more room.
And having a helping hand in this case is really gonna benefit you. But a day of wrestling and some pretty penny spent on this mod is totally worth it, in my opinion. So, wrapping things up with the MBRP Long Tube Catted Headers, these are 304 stainless steel headers with high floor race cats. They have one and seven-eighths inch runners, and a three-inch collector that runs down into three-inch collection pipes. Need a three-inch catback to pair with these headers, and as usual, you can check them out more online for yourself right here, at americanmuscle.com.
Power and Performance.

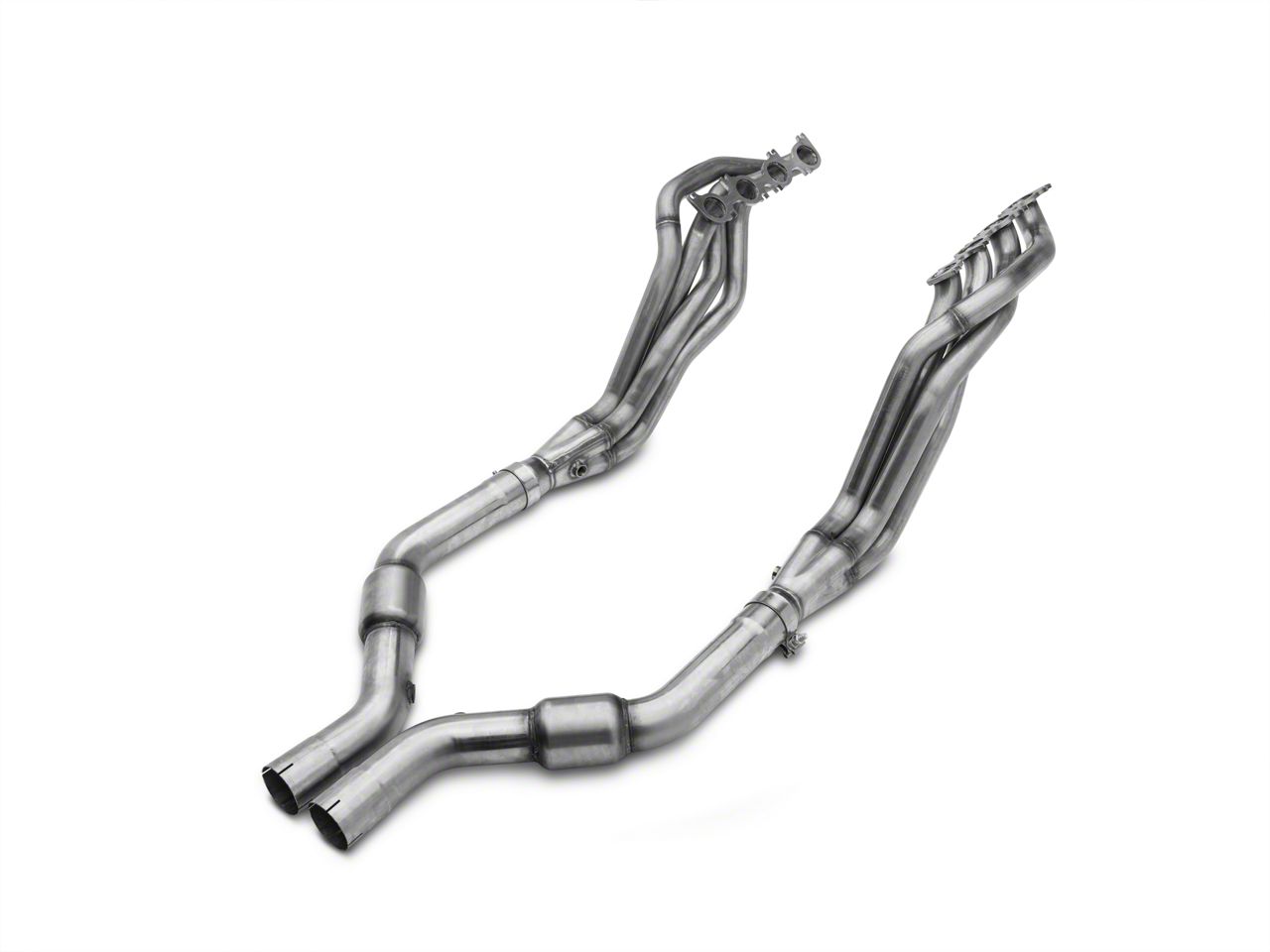

Improve the power and performance of your 2015-2019 GT Mustang by upgrading to a set of MBRP 1-7/8" Long Tube Catted Headers. These MBRP Headers feature free flowing mandrel bent tubing with high flow catalytic converters to eliminate power robbing restrictions. MBRP designed their Long Tube Headers with the use of a Mustang 1100 AWD-SE Chassis Dynomometer to achieve maximum performance. Significant increases in rear wheel horsepower and torque have been seen when installed in conjunction with a custom tune.
MBRP manufactures their Long Tube Headers from T304 stainless steel for superior strength and excellent corrosion resistance. Featuring CNC mandrel-bent 1-7/8" primary tubes for superior airflow these headers merge at a 3" collector. Laser cut steel header flanges ensure leak-free performance and an OEM fit. MBRP leaves their Long Tube Headers in a natural steel finish for aggressive good looks.
Installation of these MBRP Long Tube Headers will require the use of a Handheld Tuner
to reprogram the vehicles computer (ECU) for operation. By reprogramming your Mustangs ECU you will be able to realize the full power potential that these Long Tube Headers have to offer.
These MBRP Long Tube Catted Headers are specifically designed to fit the 2015 to 2019 GT Mustangs equipped with the DOHC Coyote 5.0L V8 engine. These Headers with connection pipes are intended to be installed with MBRP's 3" Street or Race Cat-Back Exhaust System. These Headers are intended for left hand drive applications only.
Not legal for use on pollution controlled motor vehicles; intended for off road use only.
For 2019 Ford Mustang GT models ONLY, a Ford Front Driver Side Oxygen Sensor will be needed to complete installation. This sensor is of longer length, you can easily use that sensor as a substitution for the shorter OE passenger side oxygen sensor during installation.
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- What's in the Box
- (1) Driver Side Long Tube Header
- (1) Passenger Side Long Tube Header
- (1) Driver Side Catted Connection Pipe
- (1) Passenger Side Catted Connection Pipe
- (4) O2 Extensions
- Mounting Hardware
- Installation Info
Installation Time: (approx) a Day
Difficulty Level:Mechanical expertise or professional installation required.
- Tech Specs
||Type Mid Pipe Required:
||"Yes" - For off-road use only
||2015-2017 GT Mustangs|
- Will it fit my Mustang?
- Bullitt - 19
- GT - 15, 16, 17, 18, 19
These Headers are intended for left hand drive applications only.
