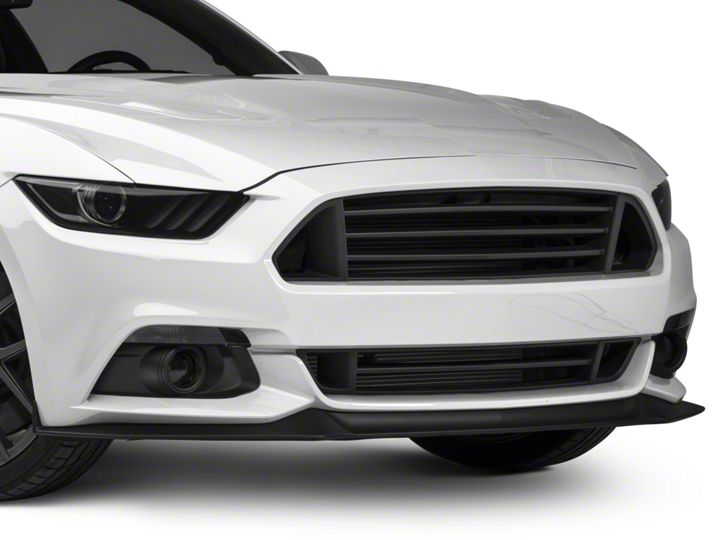

How To Install an MMD V Series Grille on your 2015-2016 Mustang

Installation Time

2 hours

Tools Required
  • Adhesion Promoter
  • Alcohol Wipes
  • 1/4” Metric Socket set
  • Ratchet
American Muscle
Shop Parts in this Guide

Step 1

Jack the vehicle up and support the front end with jack stands.

Step 2

Remove the 8 clips securing the plastic radiator cover to the support and remove it from the vehicle.


Step 3

Remove the 8 bolts securing the bumper cover to the rad support.


Step 4

Support the front of the car so you can access the bumper splash shield. **Note there are two versions of the splash shield. Both are attached to similar locations.


Step 5

On each side of the bumper, remove the plastic clips holding the fender liner to the bumper.


Step 6

Fold back the fender liner so that you can access the one 8mm bolt that holds the bumper to the fender. **Note: This bolt is tricky, it may help to remove the wheel for better access.


Step 7

With the splash shield removed, you can access the back plugs for the turn signals and fog lights.


Step 8

Once the bumper cover is ready to remove, using firm pressure pull the edge of the bumper to pop it from the clips. Have a helper support one side so that you don't scratch the paint. Slowly remove the bumper and support it on a soft non-abrasive surface.


Step 9

Begin by removing the plastic bumper brace. Gently bend tabs as needed to remove support.


Step 10

Next you will remove the factory grille by manipulating the tabs so that you can pull the grille away from the bumper cover. *Note this can be a little tricky, take your time.


Step 11

Remove the lower grille the same way you removed the upper. **Note the lower grille can be tricky, take your time.

Step 12

Install the MMD grille in the reverse order.
