Review & Install Video
Hey, everybody. I'm Justin with AmericanMuscle.com, and this is my detailed review of the Schroth QuickFit Pro Harness, available in your choice of either black or red, fitting all 2005 and newer Mustangs. You should be checking out the Schroth QuickFit Pro Harness if you're serious about the safety in your daily driven or weekend warrior Mustang and subject it to a good amount of track duty. When I say "track duty" in this case, guys, I'm more talking about the road course stuff or SCCA-type racing, as opposed to all out drag racing.
Now, those drag racers might want to entertain the idea of a five or six-point harness, depending on the rules in your respective class. Taking safety even further here, guys, the Schroth QuickFit Pro is actually the first four-point harness of its kind that can be used with a HANS device along with the factory seats. If you aren't aware, HANS stands for head and neck support device, and it's something used in a wide variety of motor sports just to prevent any head or neck injuries in the event of a crash.
So again, if you really push the car hard on the track, this is a great option for you guys if you want to make safety a top priority. Now, Schroth has been one of the leaders in aftermarket restraints and harnesses ever since the early '90s. And besides the work they do in the automotive field, also supply stuff for airplanes and helicopters, along with ballistics, seating, and restraints for the military. So essentially, these guys know what they're doing and they're trusted by a lot of people.
All right, guys. So the QuickFit Pro is the next generation of Schroth's very popular QuickFit series. This design is very popular, because it's going to integrate into your existing Mustang safety features without the need for anything else. So you don't need an additional harness bar. You don't need a roll cage to use this thing. Basically, it just plugs in or utilizes the factory mounting points of your Mustang seat belt. And again, I think that's what's going to make this very popular to a lot of you guys at home.
Here's my one and only nitpick with this mounting system. Now, ideally, you'd like to have the shoulder harness between 0 and 20 degrees downward of the shoulder on a horizontal plane. Usually, using a harness bar, or a lateral bar of a roll cage would be the best way to help you achieve this. Using Schroth's method for the shoulder harness, you're actually approaching the angle of 45 degrees, which is acceptable but not necessarily ideal in my eyes.
Again, you never really just want to mount the shoulder harness directly behind the seat to the floor, because that can cause an injury in the event of a crash. Shoulder mounting aside, I really do enjoy how the Schroth integrates into the factory seat belt and restraint system, and here's why. For starters, it's going to silence that seat belt warning chime that you might otherwise hear if you left the seat belt unplugged, for instance, or maybe if you went with a different harness option instead.
The Schroth is also going to utilize the factory pre-tensioner system for the lap belt portion, which is pretty cool. Because in the factory system, there's actually a little pyrotechnic device that will ignite in the event of an accident, and that's what tightens up your lap belt in a hurry. The fact that the Schroth is going to reuse that is actually very cool.
Sticking with the lap belt portion, guys, the Schroth harness actually incorporates what they call ASM Technology, or Anti-Submarining Technology. That's basically going to help prevent you from sliding or submarining underneath the lap belt portion here in the event of a collision. Now, this might be a concern for some of you guys out there going with a four-point over a five or six-point harness that typically has a belt or belts that come up between the legs, preventing the submarining motion from even occurring.
All right, guys. Let's get into the harness here, because there are a few things to talk about. First and foremost, Schroth does offer the QuickFit Pro in both red or black. You can see we have the red here on the table. It does feature two-inch wide polyester webbing, and that's going to be a little bit better than the nylon material when it comes to converting the energy of a crash, or soaking up the energy itself. The Schroth also features a monofilament that's woven laterally into the harness itself, and they say that's going to help better spread the load of the impact over the entire harness.
At the mid-$300 price point, the Schroth QuickFit Pro is definitely going to be one of your more premium harness options available here at AmericanMuscle.com. It's going to cost you about $100 more than the standard QuickFit. But keep in mind, guys, this is the only four-point option currently available that can be used with that HANS device, along with your factory seating, and you're also getting the convenient mounting locations. As I just mentioned, guys, one of the benefits going with the Schroth QuickFit Pro here is that you don't need any extras when getting it installed into your Mustang.
No harness bar, no roll cage, no race seats, no modification, and best of all no drilling. Instead, this thing does mount fully into your ride using the existing factory seat belt locations. You will need some basic hand tools to remove some of the factory seat belt stuff, replace it with the Schroth stuff here. But overall, a very simple install, one out of three wrenches on my Overall Difficulty Meter. We call it an hour on the site, but I wouldn't be surprised if it takes you less than that.
I feel like the Schroth QuickFit Pro will be a solid option for many Mustang owners out there for the simple reasons that it's easy to install, you don't need anything extra to get it installed, and best of all it's going to provide some extra safety in your street driven or track Mustang, more so if you take advantage of the HANS support. Now, it's tough to put a price on safety. Some people might have a slight issue with the $300 to $400 price tag. But overall, you're getting a solid, well-engineered product that's going to offer you some things other options will not. So be sure to check out a Schroth option for your ride, right here at AmericanMuscle.com.
Four Point Removable Harness.
If your Mustang pulls double duty on the street and at the track you need a Schroth Quick Fit Pro Four Point Removable Harness. The Quick Fit Pro will keep you securely behind the wheel of your Pony while you're carving corners at the track. Then it can be easily removed giving you full access to your Mustangs interior for people or cargo when back on the street.HANS Device Compatible
Schroth's Quick Fit Pro is the world's first 4 point harness that was designed to be used in conjunction with a HANS (Head and Neck Support) Device and your factory seats. Traditional 4 point restraints do not join at a center point, they are sewn to the lap belt leaving almost a 6" to 8" separation between them. The Quick Fit Pro is designed in such a way that both shoulder belts angle in towards the Cam Lock easily facilitating the use a HANS Device. ASM Technology.
The Schroth Quick Fit Pro features Anti-Submarining (ASM) Technology that positions the lap belt low across the pelvis. This keeps your hips and back side firmly planted in the seat preventing you from sliding under the lap belt in the event of a collision.Works with Factory Safety Restraint System.
The Schroth Quick Fit Pro works with your Mustangs existing factory seats and safety restraint system allowing for easily installation and removal. The Quick Fit Pro clicks into the car's female seat belt receptacles and anchors to the factory points which are load tested to withstand a 3,000-pound force for 6 seconds. By using the stock seat belt receptacles the vehicle is aware that a person is seated and restrained, silencing the warning chime as well as taking full advantage of the factory seat belt pre-tensioner.Polyester Webbing.
Schroth's Harness Belts are made from 2" wide polyester webbing. Engineered with “memory effect” Schroth's polyester webbing features special mono filaments laterally woven in, that perform like small leaf springs to keep the webbing flat. This results in better load spreading over the full width of the webbing. Polyester webbing also has a better force/elongation ratio, when compared to standard Polyamide (NYLON®) webbing, so it can convert more energy during an accident.Application.

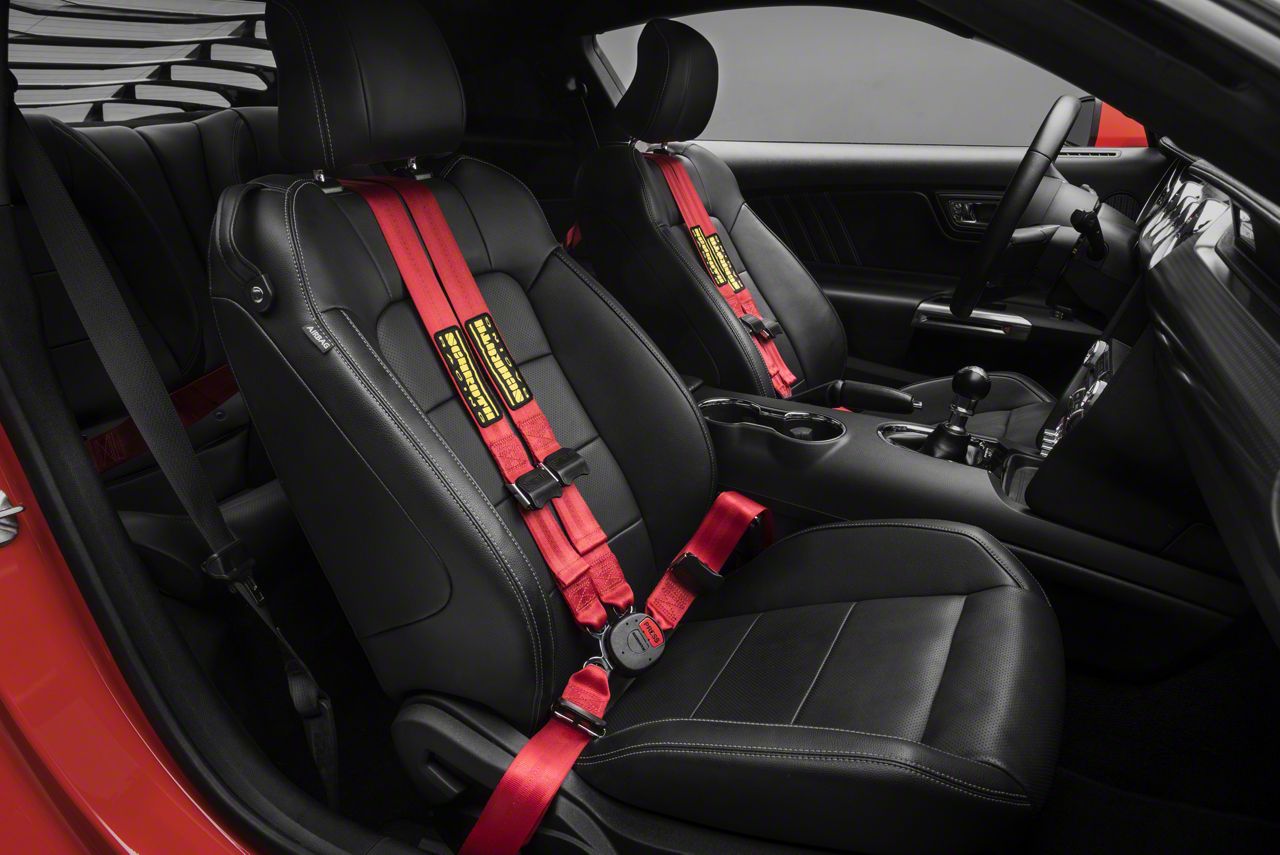

This Schroth QuickFit Pro 4-Point Red Harness is designed to fit all 2005 to 2017 Mustangs with the factory seats and safety restraint system. Including the V6, EcoBoost, GT, Bullitt, BOSS, Shelby GT500 and Shelby GT350 models. Available individually or as a set of two. Please select from the options listed above.
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- What's in the Box
Driver Side Harness
Passenger Side Harness
- (1) Left Belt
- (1) Left Side Lap Belt Connector
- (1) Left Side Tail Strap Connector
- (2) Reduction Collar
- (1) SCHROTH ASM Sticker
- (1) SCHROTH Racing Sticker
- (1) Right Belt
- (1) Right Side Lap Belt Connector
- (1) Right Side Tail Strap Connector
- (2) Reduction Collar
- (1) SCHROTH ASM Sticker
- (1) SCHROTH Racing Sticker
- Installation Info
(approx) 1 Hour
Simple installation for anyone
