Aeroforce Dual Interceptor Gauge (96-04 All)

AmericanMuscle no longer carries the Aeroforce Dual Interceptor Gauge (96-04 All). Please check out Ford Mustang Gauges & Gauge Pods for an updated selection.
This item currently can not be added to your cart. Please try again later.

Local Install Shops

Quoted installation from $125

View 3 Shops

near 19355 (change)

Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.

Features & Details

  • Monitor Critical Systems
  • Measure 1/4 Mile, 1/8 Mile and 0-60 Times & Speeds
  • Reads and Clears Trouble Codes
  • Plug-N-Play Installation
  • Standard 2-1/16" (52.4mm) Size
  • Made in the U.S.A.
  • Includes Two Gauges
  • Fits All 1996-2004 Mustangs
Monitor Critical Systems. A set of AeroForce Interceptor Gauges will allow you to monitor the critical systems of your Mustang. A single Interceptor scan gauge is capable of displaying over 100 parameters, two at a time or up to 8 using cyclic scan.

Virtual Drag Strip. The AeroForce Interceptor can also be used to accurately measure quarter mile, 1/8 mile or 0-60 times and speeds.

Diagnostics. The AeroForce Interceptor Gauges not only monitor your vital systems, but it also allows you to read and clear DTC's (Diagnostic Trouble Codes) via the menu options. Those that have modified their vehicle will find this very handy when a sensor, vacuum line, etc. has been inadvertently left disconnected, or something was just not put back together properly.

Precision Monitoring. This multifunctional gauge is capable of precisely monitoring your Air/Fuel Ratio as well as your Fuel or Oil Pressure. In order to properly monitor these parameters, your 96-04 Mustang would require the use of the Air/Fuel Ratio Sensor Kit and/or the use of the Fuel/Air Pressure Sensor Kit dependent upon your preferences. Please refer to drop-down options above.

Plug-n-play Installation. Installation of the AeroForce Dual Interceptor Gauges is accomplished by simply plugging the supplied special proprietary connector into the OBD2 port below the steering wheel. Literally a plug-and-play install.

Application. This pair of AeroForce Interceptor Gauges are specifically designed for use on 1996-2004 Mustangs equipped with an OBD2 port, including the V6, GT, Bullitt, Mach 1 and SVT Cobra models. Gauge includes (2) black face plate, (2) white face plate, and (2) black bezels.

Other Sample parameters - Not all are supported by every vehicle:
  • RPM
  • MPH
  • Intake Air Temperature (post Intercooler)
  • Ambient Air Temperature (pre Intercooler)
  • Engine Coolant Temperature
  • Throttle Position Sensor Raw Volts
  • Transmission Temp. (auto trans)
  • Throttle Position Percentage
  • Fuel Temperature
  • Battery Voltage
  • Battery Temp
  • Injector Pulse Width in msec.
  • Injector Duty Cycle (%)
  • Air Flow Rate into engine
  • Long Term Fuel Trim
  • Short Term Fuel Trim
  • O2 Sensor Voltage
  • Barometric Pressure
  • Ignition Advance
  • Base Spark
  • PCM Spark Adjust
  • Fuel Status (open/closed loop)
  • Wastegate Solenoid Duty Cycle (%)
  • Manifold Pressure (vacuum/boost) displayed in PSI
  • Knock Retard
  • Knock Sensor Raw Voltage
  • Exhaust Gas Temperature (PCM Calculated)
  • Calculated Net Horsepower
  • Engine Load
  • Transmission Slip
  • Current Transmission Gear
  • Torque Delivered to Transmission
  • Torque Converter lockup status
  • Brake pressure
  • Brake Booster Travel
  • Steering Angle
  • Non-driven Wheel Speed
  • Lateral G's
  • Fuel economy (instantaneous and average)
  • P-ratio - pressure ratio MAP/Barometer
  • Yaw

Tech Note. Not all Interceptor parameters are supported by every vehicle. If the vehicle is broadcasting the parameter signal, the Interceptor will recognize this and make it available for display.

Fitment: 1996 1997 1998 1999 2000 2001 2002 2003 2004 Details

CA Residents: Warning: California's Proposition 65

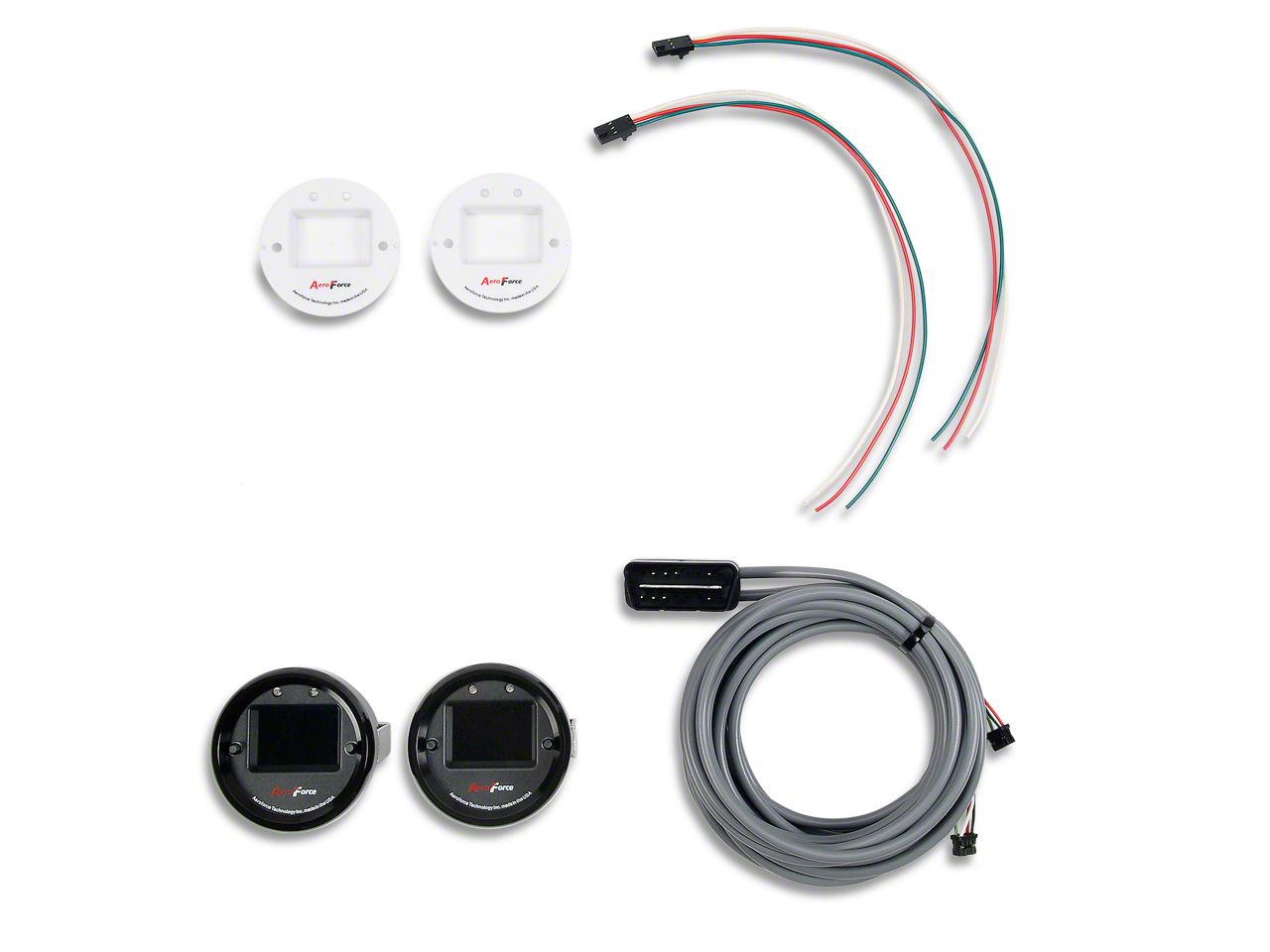

What's in the Box
  • (2) Interceptor Gauges
  • OBDII Connector
  • (2) Black Face Plates
  • (2) White Face Plates
  • (2) Black Bezels
Installation Info
Tech Specs
Will it fit my Mustang?

You Might Also Like

Customer Photos (6) Submit Your Photo

View All 6 Photos

Questions & Answers (12)

5 Top Rated Questions

willl this work on a 2001 ford f150 lightning

  • Unfortunately, this part will only work on 96-04 Mustangs.

Helpful (0)

I have an 06 will this work thing is labled up to 04 and is there a way to have three for a three gauge pod

  • The Aeroforce Dual Interceptor Gauge will only work with mustang in the year range 96'-04'. We cannot guarantee fitment for any year outside of those ranges.

Helpful (0)

says up to 04 will this work in my 06 and is there a way to have three for my three gauge pod?

  • These Aeroforce Dual Interceptor Gauges will not fit in your 2006 Stang, although we do have two other pairs of Aeroforce gauges that will work. Unfortunately they are not sold in sets of three only pairs and singles so you can purchase a third gauge when ever you please.

Helpful (0)

I have an 03 Mach 1, I was seeing online some people were using 3 interceptor gauges... Is this possible for my car ? If so do you have any info on how to do it ? Thanks !

  • At this time, the highest number of gauges listed by Aeroforce for Ford applications are the Aeroforce Dual Interceptor Gauge set.

Helpful (0)

It says that not all cars will display the speed? Will this display speed for a 1999 GT?

  • Some vehicles do not broadcast the parameters that the Gauge can pick up on. As long as your 99 GT broadcasts it, the Gauge will be able to display it.

Helpful (0)
Post Your Question
7 More Questions
Do I need any of the sensors for this gauge to work properly 1 answer
Can you change the color display on these gauges or will it only light up blue? I would like mine to have a white display with black back ground to match my mach 1 cluster. Is this possible with these gauges or is it something i have to order seperate? 1 answer
I was wondering all the customer photos have it shown attached to the steering wheel and wondering if it comes with that mount or something I would have to buy if so where do I buy it thanks 1 answer
can you change the color of the face of this gauge 2 answers
LED Colour Can the LED be changed to green to match my stock 02 GT cluster? 1 answer
Would I need any extra connectors to be able to read AFR? Or is it really plug and play to the OBD2? 1 answer
Does this gauge read boost? 2 answers

Customer Reviews (26) Write a Review

Overall Rating 4.6

out of 5 stars

Installation Time:Less than 1 Hour

  • Fit 4.94 4.9
  • Appearance 4.8775 4.9
  • Bang For Your Buck 4.5925 4.6



  • 4/5

    Installation Time: Less than 1 Hour

    June 07, 2018

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    Great Guage

    Plugs into the OBD2, just what I was looking for. Displays live battery voltage and many other parameters I never knew I needed.

    EstevanG

    Year: 2003 Submodel: Cobra

    Helpful (3)

  • 5/5

    Installation Time: Less than 1 Hour

    March 12, 2018

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    nice gauge

    this is a very nice gauge all my stang owners friends like it a lot,easy plug and play installation,i will recommended to all stang owners.

    maoc

    Year: 2001 Submodel: Cobra

    Helpful (4)

  • 5/5

    Installation Time: Less than 1 Hour

    February 20, 2018

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    Awesome

    This gauge is exactly what I wanted... three plus gauges rolled in one... thanks AM!!!!

    03VENUM

    Year: 2003 Submodel: Cobra

    Helpful (3)

  • 5/5

    Installation Time: Afternoon

    January 12, 2018

    Awesome gauges!

    These gauges are very high quality! So many options can be displayed, including a startup logo! Easy, clean, and fast install with them being obd2 gauges. Very very satisfied!

    KrisC

    Year: 2003 Submodel: Mach 1

    Helpful (2)

  • 3/5

    September 16, 2017

    gauges

    The instructions are very vague. I have spent hours trying to figure out the settings on these.

    RichardH

    Year: 2003 Submodel: Mach 1

    Helpful (3)

  • 1/5

    Installation Time: Afternoon

    August 24, 2017

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    Aeroforce junk

    Bought a aeroforce gauge with wide band o2 sensors and oil pressure sensor and neither anolog inputs work sensors are just stuck on a #. Have been trying for over a month to contact aeroforce with no response. Very poor customer service so now I had to replace my aeroforce with a ngauge and totally happy now. I'll never use aeroforce gauges again

    JoshuaH

    Year: 2000 Submodel: GT

    Helpful (4)

  • 3/5

    Installation Time: Less than 1 Hour

    August 19, 2017

    Kinda cheaply made for the price

    Love the set up just gauges are plastic and kinda cheaply made.

    DizeNB

    Year: 2004 Submodel: GT

    Helpful (4)

  • 5/5

    Installation Time: Less than 1 Hour

    June 20, 2017

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    Great Gauge

    I purchased this gauge a couple years ago for my 98 Mustang. I experienced some problems with the gauge because I do not drive the car often. The gauge did stop working but I contacted Aeroforce and they took care of me and got the gauge back to working. If you do not drive your car often make sure to unplug it so it when not in use. Thanks American Muscle and Aeroforce.

    JRed98

    Year: 1998 Submodel: GT

    Helpful (3)

  • 5/5

    Installation Time: Afternoon

    June 11, 2017

    Multi task gauges!

    Love them!...have alot of features!...including quarter mile runs!...a must have for you Mustang!

    FrankS

    Year: 2003 Submodel: Cobra

    Helpful (2)

  • 5/5

    October 04, 2016

    Awesome setup

    These are great gauges if you want something simple to install that can do many things and not have to have a lot of different gauges. the install was pretty simple and took about an hour tops. i used a dual A-pillar dual pod setup for them and the look absolutely amazing. being able to check and clear check engine light codes is an added plus. the only negative sides to these is that when scanning the codes it only gives the number and not the description so you'll have to look it up. and you can not wear polarized sunglasses if you wanna see the gauges, it will make them look like they have water in them. but they are super bright and easy to see day or night.

    Cascade

    Year: 1999 Submodel: GT

    Helpful (4)

  • 5/5

    Installation Time: Less than 1 Hour

    January 25, 2014

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    This product delivers on all promisess

    Gauge does what its designed to do, plus quick easy install plug and play and very user friendly .easy to read and great display great for monitoring all sensors and perimeters, no complaints.

    als2000

    Year: 2000 Submodel: GT il

    Helpful (3)

  • 5/5

    Installation Time: Less than 1 Hour

    January 24, 2014

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    This is an excellent multifunctional gauge!

    I installed this along with an NGK AFX Wideband Air/Fuel Monitor system. The analog outputs on the AFX work perfectly with the Aeroforce analog inputs and its very easy to put the equation in to convert the voltage to A/F ratio. The OBDII connection is excellent, and provides a ton of information without having to constantly plug in your programmer and datalog. I also like that you can display any two parameters at once. I prefer to have my IATs and A/F ratio. Great product! The only thing I would suggest is that you carry the additional gauge face options. I was fortunately able to purchase the matching SVT Cobra gauge face directly from Aeroforce.

    ubercracker

    Year: 2004 Submodel: Cobra Palm City, FL, USA

    Helpful (5)

  • 5/5

    Installation Time: Less than 1 Hour

    January 06, 2014

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    Works like it should

    Nice gauge to have, does lots of things. Cool thing is you can pick the gauge start-up logo, cobra or pony. Mainly bought it for intake air temp and coolant, mph and rpm is good too. Wish it read oil temp and pressure but 1996 doesn't have factory sensors for this. Also has two led lights that can be used as warning or shift light. AM should offer the extra accessory's though, I bought a SVT logo white face and all black bezel from another website.

    96Cobra

    Year: 1996 Submodel: Cobra CA

    Helpful (6)

  • 5/5

    Installation Time: Less than 1 Hour

    November 23, 2013

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    Best gauge for the money!

    This gauge can basically do anything you want it to. It looked very good on the steering column of my 98. Very easy to use and set up too!

    PaulNC93

    Year: 1998 Submodel: Cobra Raleigh, NC, USA

    Helpful (4)

  • 4/5

    Installation Time: Less than 1 Hour

    August 26, 2013

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    AeroForce Single Interceptor Gage

    Was looking for something to make my mustang different from the others and I found that in the interceptor gage. Just pick a gage pod of your choice, mount it, and plug the wire harness into your obt test port. It really is that simple. The gage reads out what your cars computer is monitoring. Fuel pressure,RPM, throttle percentage,exhaust temp ETC.

    Evbo

    Year: 2003 Submodel: GT Dover Delaware

    Helpful (4)

  • 4/5

    Installation Time: Afternoon

    May 18, 2013

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    Fun gauge

    Great gauge it provides so much information. It was an easy install even for me. The only minus is that being digital it is hard to see the display in bright sunny conditions.

    lefty2

    Year: 2001 Submodel: GT Vancouver, WA, USA

    Helpful (4)

  • 5/5

    Installation Time: Full Day

    April 19, 2013

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    Amazing Gauge

    A must have if you want to keep an eye on vital engine readings.

    TBC0BRA

    Year: 2001 Submodel: Cobra Texas

    Helpful (4)

  • 5/5

    Installation Time: Afternoon

    April 01, 2013

    Aeroforce Gauges

    Gauges work great and look even better. I would recommend this product to everyone. tell you everything you need to know.

    Bullet281s

    Year: 1999 Submodel: Other

    Helpful (4)

  • 5/5

    Installation Time: Less than 1 Hour

    March 19, 2013

    AeroForce Interceptor Gauges

    These gauges are awesome. Work really well monitoring your engine's components and look really good. Couldn't be more happier. American Muscle is the best.

    tiger8254

    Year: 2004 Submodel: V6 Tennessee

    Helpful (4)

  • 5/5

    Installation Time: Less than 1 Hour

    December 04, 2012

    Review from Aeroforce Single Interceptor Gauge (96-04 All)

    Awesome!

    I was considering getting 2 or 3 gauges to monitor a few things but the price of those three, was the price of one of these plus you get TONS of info with this. I spent a hour just playing with it trying to decide which 8 (yes 8 on a single guage!) to display. Works awesome and appears to be as accurate as you can get. I still havent got around to using all the different things on this. It also has a logo picture that you can choose to pop up on start up. Great product.

    Tommyboy08

    Year: 1999 Submodel: Cobra

    Helpful (4)
