Aeroforce Single Interceptor Gauge (96-04 All)

AmericanMuscle no longer carries the Aeroforce Single Interceptor Gauge (96-04 All). Please check out Ford Mustang Gauges & Gauge Pods for an updated selection.
This item currently can not be added to your cart. Please try again later.

Features, Video & Details

  • Monitor Critical Systems
  • Measure 1/4 Mile, 1/8 Mile and 0-60 Times & Speeds
  • Reads and Clears Trouble Codes
  • Plug-N-Play Installation
  • Standard 2-1/16" (52.4mm) Size
  • Made in the U.S.A.
  • Includes One Gauge
  • Fits All 1996-2004 Mustangs

Review & Installation Video

Review & Install Video

Hey I’m Justin with and welcome to my detailed breakdown of the AeroForce single interceptor gauge available for all 96 and newer Mustangs. Ok, at first glance you can see the interceptor is a standard 52mm or 2 1/16 “ gauge that should fit into most aftermarket gauge pods without issue. As for the appearance side of things the interceptor does sport a black bezel, with a bluish LCD screen when the gauge is on of course, in addition to white or black interchangeable faces. It does also come with a power and ground harness in addition to the ODB2 cable, that is used to connect the actual gauge itself to your Mustang’s ODB2 port. In my opinion, this one of the most capable and versatile gauges available on the market today. AeroForce has managed to stuff in an ODB2 monitoring device, a virtual drag strip, shift and warning lights, and finally a diagnostic tool, all into one very attractive gauge which is very fairly priced considering the amount of stuff this gauge can do. So with that said let’s get started with the ODB2 monitoring capabilities. Because the interceptor does plug into your car’s computer it’s capable of reading over 100 of your different Mustang’s parameters. Of course common stuff like air/fuel ratio, RPM, coolant temperature, and voltage are all there, but you also have the ability to read some more obscure yet equally important info, such as your fuel temperature and trim, your transmission slippage, and even some knock sensor data in addition to many other features. Of course if you did want a complete breakdown of all the things this thing is capable of reading, in addition to some other useful info, and you’re not already watching this video on our site, go ahead and click the link below to head back to the product page over at Of course you can’t read over 100+ parameters at one time due to the obvious space limitations on the little gauge, what AeroForce has done about this is allowed two to be visible at one time, or you can have 8 different parameters cycle at an adjustable rate of speed. One of my favorite features with the interceptor has to be these two high intensity warning lights, that can be set up in a couple of different ways. Of course one of the most popular ways would be to set it up as a shift light, however you can set it up to flash if trans or coolant temps exceed a certain temperature, or if your air/fuel ratio exceeds a certain number, helping to prevent any lean condition or possible damage to your motor. As I mentioned earlier, this thing is way more capable than just displaying only your car’s parameters, it can also be used as your own personal virtual drag strip, where it will measure your 1/8 and ¼ mile times, your 0-60 time and of course your lateral G performance as well. Of course if you’ve seen the newer 2013 Mustangs equipped with the track app option, you know it’s a very cool feature that allows you to track your performance as different mods are added. Finally the interceptor can be used as a diagnostic tool allowing you to read and clear your check engine lights without the hassle of having to go somewhere to get the code read and cleared, or having to break out your tuner to clear the code yourself. Installation of the interceptor really couldn’t get much easier thanks to the simple plug and play design. Of course a big part of that install is to determine where you want the gauge to go. For our install we used a vent mounted gauge pod for a clean and stealthy install, but you can easily use more traditional methods such as the steering column or A pillar mounted gauge pods. Once you do determine where you want to gauge to go, all you need to do is simply run the wire down to the ODB2 port and plug it in. We’re going to call this install 30 minutes from start to finish but don’t be surprised if most of that time is spent hiding that wire. Of course if you should get jammed up, give us a call at 855-422-7439 or shoot us an email at So if you’re looking for one gauge that can pretty much do it all at a very fair price, then you have to check out an interceptor for your Mustang, over at, and if you haven’t already done so, subscribe to our YouTube channel, just click on the link below, or up on the AM logo there in the corner, this way you can check out all the latest Mustang videos, some of our badass project cars, and of course me breaking down all of your favorite Mustang parts.

Monitor Critical Systems. The AeroForce Single Interceptor Gauge will allow you to monitor the critical systems of your Mustang. The Interceptor scan gauge is capable of displaying over 100 parameters, two at a time or up to 8 using cyclic scan.

Virtual Drag Strip. The AeroForce Interceptor can also be used to accurately measure quarter mile, 1/8 mile or 0-60 times and speeds.

Diagnostics. The AeroForce Single Interceptor Gauge not only monitors your vital systems, but it also allows you to read and clear DTC's (Diagnostic Trouble Codes) via the menu options. Those that have modified their vehicle will find this very handy when a sensor, vacuum line, etc. has been inadvertently left disconnected, or something was just not put back together properly.

Precision Monitoring. This multifunctional gauge is capable of precisely monitoring your Air/Fuel Ratio as well as your Fuel or Oil Pressure. In order to properly monitor these parameters, your 96-04 Mustang would require the use of the Air/Fuel Ratio Sensor Kit and/or the use of the Fuel/Air Pressure Sensor Kit dependent upon your preferences. Please refer to drop-down options above.

Plug-n-play Installation. Installation of the AeroForce Single Interceptor Gauge is accomplished by simply plugging the supplied connector into the OBD2 port below the steering wheel. Literally a plug-and-play install.

Application. This AeroForce Single Interceptor Gauge is specifically designed for use on 1996-2004 Mustangs equipped with an OBD2 port, including the V6, GT, Bullitt, Mach 1 and SVT Cobra models. Gauge includes (1) black face plate, (1) white face plate, and (1) black bezel.

Other Sample parameters - Not all are supported by every vehicle:
  • RPM
  • MPH
  • Intake Air Temperature (post Intercooler)
  • Ambient Air Temperature (pre Intercooler)
  • Engine Coolant Temperature
  • Throttle Position Sensor Raw Volts
  • Transmission Temp. (auto trans)
  • Throttle Position Percentage
  • Fuel Temperature
  • Battery Voltage
  • Battery Temp
  • Injector Pulse Width in msec.
  • Injector Duty Cycle (%)
  • Air Flow Rate into engine
  • Long Term Fuel Trim
  • Short Term Fuel Trim
  • O2 Sensor Voltage
  • Barometric Pressure
  • Ignition Advance
  • Base Spark
  • PCM Spark Adjust
  • Fuel Status (open/closed loop)
  • Wastegate Solenoid Duty Cycle (%)
  • Manifold Pressure (vacuum/boost) displayed in PSI
  • Knock Retard
  • Knock Sensor Raw Voltage
  • Exhaust Gas Temperature (PCM Calculated)
  • Calculated Net Horsepower
  • Engine Load
  • Transmission Slip
  • Current Transmission Gear
  • Torque Delivered to Transmission
  • Torque Converter lockup status
  • Brake pressure
  • Brake Booster Travel
  • Steering Angle
  • Non-driven Wheel Speed
  • Lateral G's
  • Fuel economy (instantaneous and average)
  • P-ratio - pressure ratio MAP/Barometer
  • Yaw

Tech Note. Not all Interceptor parameters are supported by every vehicle. If the vehicle is broadcasting the parameter signal, the Interceptor will recognize this and make it available for display.

Fitment: 1996 1997 1998 1999 2000 2001 2002 2003 2004 Details

MPN# FD101

CA Residents: WARNING: Cancer and Reproductive Harm -

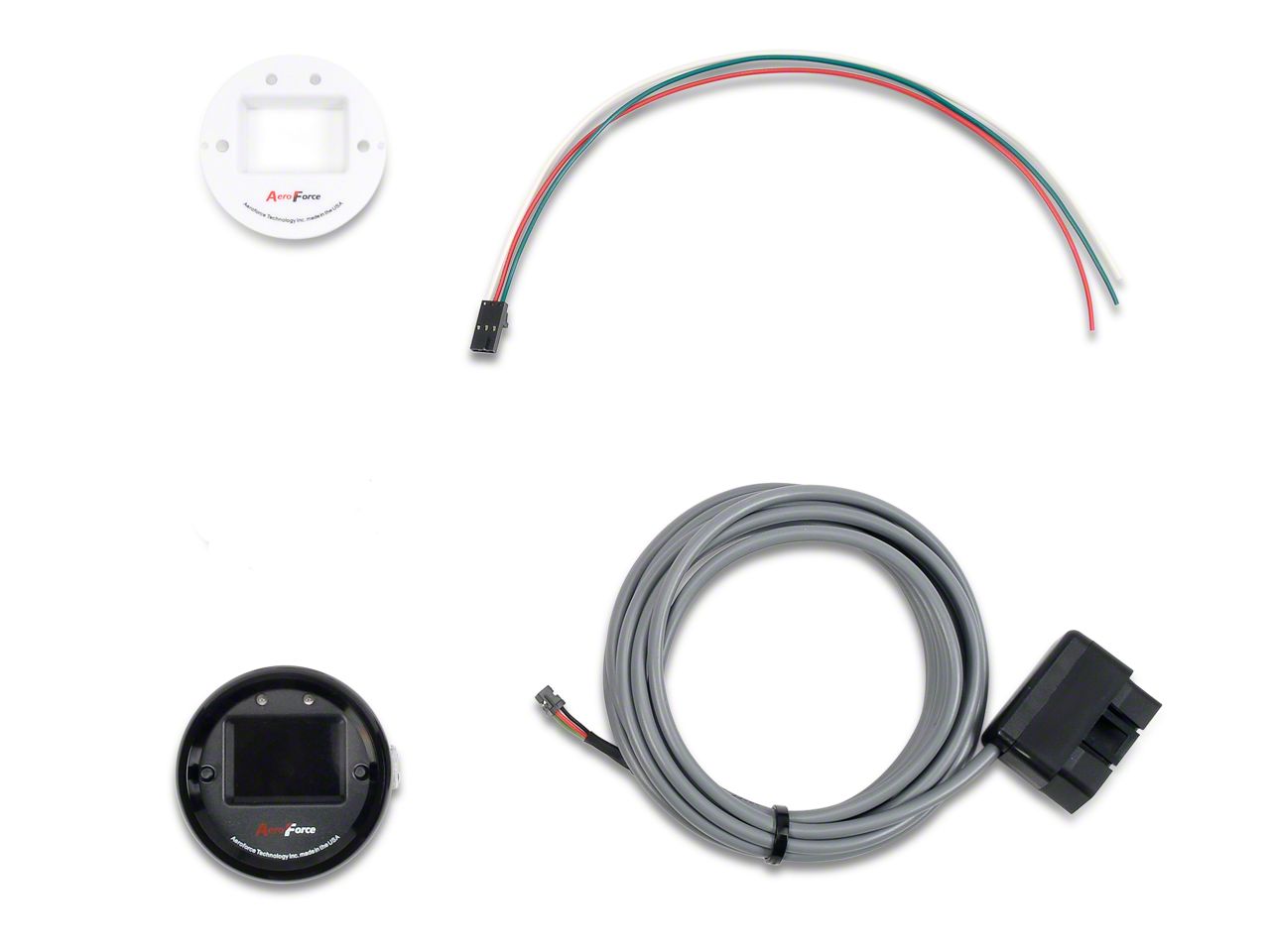

What's in the Box
  • (1) Interceptor Gauges
  • OBDII Connector
  • (1) Black Face Plate
  • (1) White Face Plate
  • (1) Black Bezel
Installation Info
Tech Specs
Will it fit my Mustang?
