(approx) 2 Hours
Light to Moderate mechanical skill required.
$799.99 (each)FREE Shipping
Hey guys. Justin with americanmuscle.com here with a stage three power pack bolt-on build-up for all 2010-2012 Shelby GT500s. The stage three power pack focuses on taking our lightly modded grabber blue Shelby behind me to the next level, and even further. To do so, we're going to make sure the car is ready to move some serious air by eliminating bottlenecks both on the intake and the exhaust side of things. We're also going to add a few more pounds of boost to the car, and see what kind of numbers are possible with that factory Eaton supercharger in place. Finally, we're going to take care of some preventative maintenance just to be on the safe side. Before we get started, a friendly reminder to go ahead and click on the link below to subscribe to our YouTube channel, especially if you're a big fan of boost. Blower cars, turbo cars, we've built them all, and you can check those out by going to our YouTube channel. Since we already have a 2.6" pulley installed on the car now, our options for adding more boost with the factory Eaton blower still in place are pretty limited. In fact, the only way to really do so besides going down to a 2.5" pulley, which we really didn't want to do is to add a lower overdrive balancer. We installed the Innovators West 10% overdrive balancer. This balancer along with a 2.6" pulley is actually a very popular combination with other GT500 owners out there for a couple of different reasons. For starters, Innovators West claims that their balancer actually weighs less than the factory balancer, so you're going to reduce some of that rotational mass, which is always a good thing. In addition, by enlarging the diameter 10%, our car should now be seeing additional 3 or so pounds of boost more bringing our grand total up to around the 15 or so pound mark, which should be enough to peg that factory boost gauge. This is pretty much the tried and true safe limit of efficiency with a stock blower here without porting it or adding additional forms of cooling like meth injection, or running E85 fuel. You start spinning these M122 blowers up any faster, heat becomes a serious problem, and at that point the efficiency goes down and those power numbers really start to drop. Once you start getting around 550 wheel horsepower in these cars, that factory twin 60mm throttle body just becomes a huge restriction, so it had to go. In its place now, I installed the Ford Racing twin 65mm cobra jet throttle body. Of course, the larger twin 65mm opening will let more air into the engine, which is what we're after, and since it is built by Ford Racing, the quality, the drive by wire electronics, all that stuff are completely dead on, as you might expect. Finally, the cherry on top, I guess you could say, that nice polished billet construction looks great under the hood especially along side that JLT carbon fiber intake. Now that we've opened things up with the intake, let's check out the exhaust. One of the biggest performance killers with any exhaust system are the factory cats. In their place now we installed the stainless steel off road X-Pipe. This should really help improve the exhaust flow here on our Shelby, and should give our tone a little more bite. Since we are getting rid of the factory cats, we wanted to pick an axle-back that would still give us a good sound without being overly raspy, but at the same time give us some performance benefits. After all, this is a power pack here. We selected a customer favorite the MagnaFlow Street Series Axle-back. Now, this axle-back paired with that off road X-pipe could still give us a very angry tone worthy of a GT 500, but at the same time it's not going to be obnoxiously loud. If fact, listen up for a quick sound clip. With this many mods and with us really pushing the limits of that factory roots blower, heat is inevitably going to be an issue. Even though these '11 and '12 Shelbys came with larger intercoolers from the factory, we want to make sure this thing was going to stay cool even on the hottest days. We installed the Afco Pro-series heat exchanger, which did include dual 10 inch electric fans to help keep things even cooler. In fact, if you guys want to click on the link below, you can read up more about the Afco back on our site, but regardless, just a solid upgrade when trying to deal with heat on these Shelbys. With all of our stage three modifications in place, time to get Mike J. and the Bama Performance team in here so we can get a tune for all our new mods. At the end of the stage two power pack our 2012 GT500 was making 532 horsepower and 523 pound feet of torque at the rear wheels. With all the stage three modifications installed, the power pack was now making 589 horsepower, and 600 pound feet of torque at the rear wheels giving us a peak gain of 57 horsepower over our stage two numbers, and gains of 65 horsepower and 83 pound feet of torque throughout the curve. To recap, our baseline run with our 2012 GT500 gave us 503 horsepower, and 475 pound feet of torque. With all three power packs installed the car is now making 589 horsepower, and 600 pound feet of torque resulting in a peak gain of 86 horsepower over those baseline numbers, and gains of 117 horsepower, and 135 pound feet of torque throughout the curve. That's going to do it for the third and final power pack here featuring the 2010-2012 Shelby GT500. Let's be honest, bone stock these Shelbys are no joke, but over the course of three different power packs, which featured more boost, some basic bolt-ons, and of course, a quality tune from the Bama team, this thing is now more ridiculous than ever. Guys don't forget to check out our other power packs, and remember for all things Mustang, keep it right here at AmericanMuscle.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Fitment: 2007 2008 2009 2010 2011 2012 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
August 02, 2019
I monitor IAT2 and ambient air temps on a Ngauge device. Temperatures are consistently lower after install. Only downsize is very expensive to purchase and install if done by a shop. Took about 3.5 hours taking my time to ensure everything was done correctly.Helpful (2)
July 24, 2019
Fairly easy install. Functions very well.took shop about 2 plus hrs.Helpful (3)
July 15, 2019
Car was constantly running extremely hot. This certainly keeps the temps down. Pretty noisy but does the job!Helpful (1)
June 25, 2019

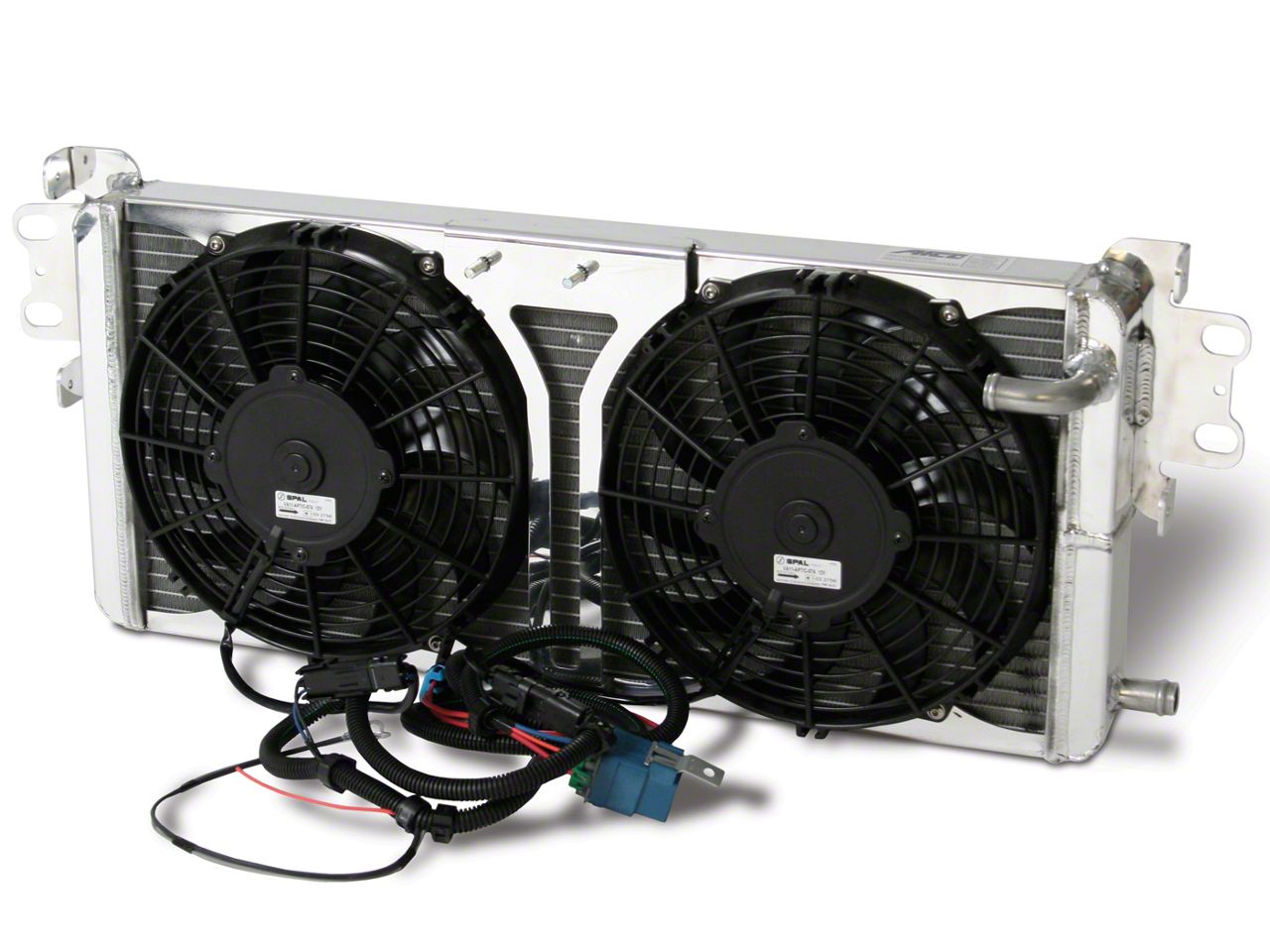

AFCO Pro-Series Heat Exchanger w/ Fans
made a big difference in the car has greatly improved the circulation of water and superchargerHelpful (2)
August 27, 2017
Product is very well made and thought out. I decided to do it myself. Seemed simple enough and I'm confident in my mechanical skills. Just follow the directions and the YouTube video. What could possibly go wrong? Video says it's a two hour install. First of all the directions said that it's for a 2007 to 2009 GT500, my car is a 2011. It's to many years old to be relevant anymore, make up new directions. This took up much more time than the two hours it was billed as taking. Lots of YouTube videos look at to find out THERE ARE NO BOLTS AND NUTS HOLDING THE BUMPER TO THE FENDERS, just 3 clips on each side that can be pulled apart with no tools involved. Wire colors don't match the directions, mounting places don't exist, as listed in the directions. I work carefully, I don't want to mess up my car. From start to finish took me 14 hours.Helpful (12)
June 30, 2017
A must have to keep your mustang cool. I would also recommend a lower thermostat to really take advantage of this fan. Before I installed just the fan my temps on my GT500 went over 200 degrees. With the stock 180 degree thermostat the fan was able to keep temps down to 186 degrees. Again, a solid product and a must have cooling mod. Just a heads up it takes about 3 hours not the 2 that are recommended.Helpful (8)
February 16, 2017
AFCO HEAT EXCHANGER
Not exactly easy to install, takes longer than their estimated 2 hours, but seems to do as advertised,Helpful (10)
December 10, 2016
This is a must have for blower applications! I have a 2012 GT and I installed this twin Fan Intercooler and I love it! It will require you to modify your GT bumper to make it work, but well worth the time as I installed this and WOW, I can feel the difference in a cooler blower which means more HP!! Buy this unit and I promise you that you will love it!!!Helpful (10)
February 28, 2016
Worth every penny!
06GT with a Roush m90. Fits perfectly in place of that puny weak stock roush HE. Its double the size and the fans are amazing. My car does not heat soak anymore. I drag race my car a lot and this has been the best investment towards better consistantcy. I custom installed a switch for the fans too. Like when loading a tune, I dont need those fans running, otherwise they are on all the time.Helpful (9)
November 19, 2015
Afco heat exchanger
Nice upgrade for reducing heat saok. Also fits great without being too noticeableHelpful (8)
GT does fit a mustang gt with supercharger ? and do i need a new tune it
I speak from Experience.... this Heat exchanger will fit a 2012 GT with a Supercharger, but, the bumper will have to be modified in order to be placed back on your car! With some minor trimming - it can be done! His intercooler is a fantastic upgrade to cooling your blower! Highly recommend, but be prepared to "cut" "trim" your bumper to make it work!!
Will I need to upgrade my alternator to accommodate the extra voltage being pulled?
Your stock alternator should be able to handle this heat exchanger without any problems!
I own a 2007 Mustang GT with a Roush front bumper cover and super charger will this fit?
Unfortunately this will not fit a 07 Mustang GT. Only the 07-12 GT500 models.
Will this Heat Exchanger fit a 2012 GT with a Supercharger? Looking for the right Unit for heat reduction. Please advise. Thanks!
The AFCO Pro-Series Heat Exchanger w/ Fans is designed to only be an upgrade for the 2007 to 2012 Ford GT500. We cannot guarantee fitment in any other applications.
Question Does this item fit gt500 5.8L 2013 ?
It does not look like they have come out with one yet for the 13 GT500, try VMP they my have one.
(approx) 2 Hours
Light to Moderate mechanical skill required.
What's in the Box
