How to Install BBK SSi/SSi-R Phenolic Intake Spacer Kit on your Mustang

Installation Time

3 hours

American Muscle
Shop Parts in this Guide

Follow these instructions carefully to ensure correct fitment and operation.

STEP 1: Disconnect the throttle duct hose from the throttle body.

STEP 2: Disconnect the throttle linkage from the throttle body and also the kick-down linkage if applicable.

STEP 3: Disconnect the wire connectors from the upper manifold and also the vacuum lines on the underside of the upper intake.

STEP 4: Remove the cover plate from the upper intake if equipped. Next remove the six bolts from the upper intake manifold.

STEP 5: Lift off the upper intake and discard the gasket, also making sure both surfaces are free from dirt and grease.

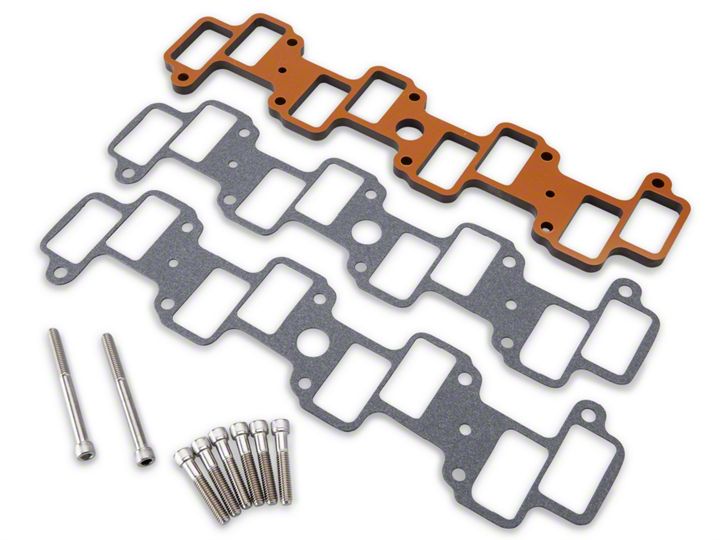

STEP 6: Next install the phenolic spacer by placing a new gasket on both sides of the spacer.

STEP 7: Use the new bolts provided and tighten in a criss-cross pattern beginning with the center bolts.

STEP 8: Next simply reverse the previous steps.‚Äč
