Double Adjustable Rear Coil-Over Shock (97-13 Corvette C5 & C6)Find parts that fit my vehicle
Item CV23492$0.00
Our Price
$499.99
Ship to: 43215
Please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Will this fit your Vehicle?
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Add Local Installation
$499.00
Product Information
Description, Q&A
Description
Description

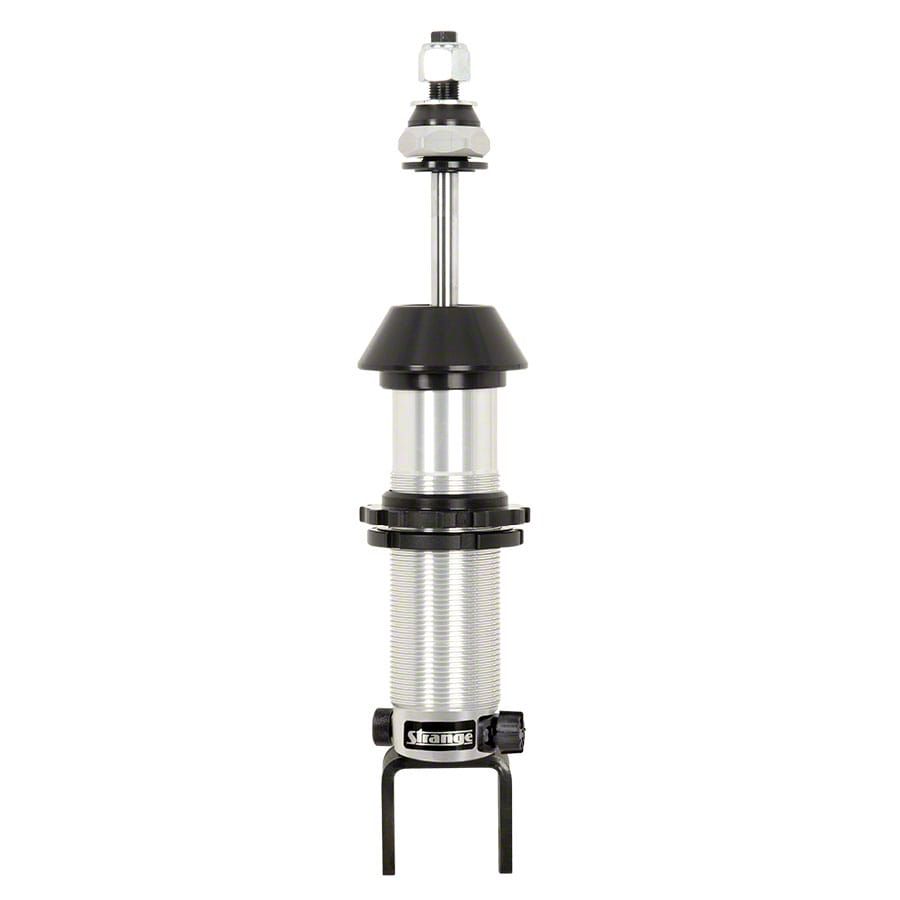

GM Double Adjustable Coil-Over Rear Shock (Spring sold separately)
Double Adjustable Rear Coil-Over Shock
1997-2013 C5 / C6 Corvette
Sold as Each
Features
• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible independent external adjustment knobs
• Allows quick changes for varying conditions
• Rotating knobs clockwise stiffens valving
• Coil-over design simplifies changes to ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved
• Accepts 10″ x 2.50″ I.D. spring
Upper Spherical Bearing
• Top stud allowed to pivot during shock travel
• Eliminates binding common with rubber bushings
• Ensures smooth and consistent operation
Includes
• Upper & lower spring seats
• Lower seat jam nut
• Upper stud with integral spherical bearing
• Mounting hardware
Dimension A
• 16.45″ extended
• 12.53″ compressed
Recommended Spring Rate
• 400 lbs
• Consult your chassis builder
Adjustments For Drag Racing
Softening extension allows more downward force on the rear tires
Stiffening compression delays the return to normal ride height
Adjustments For Performance Street & Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics
Related
Spring seat bearing kit – S1409
Spring seat adjuster wrench – S1413
Front coil-over shock – S5021
GM Double Adjustable Coil-Over Rear Shock (Spring sold separately)
Double Adjustable Rear Coil-Over Shock
1997-2013 C5 / C6 Corvette
Sold as Each
Features
• Lightweight aluminum body
• 10 extension & compression settings
• Provides a wide range of control
• Easily accessible independent external adjustment knobs
• Allows quick changes for varying conditions
• Rotating knobs clockwise stiffens valving
• Coil-over design simplifies changes to ride height
• Custom valving available upon request
• Ability to be rebuilt or revalved
• Accepts 10″ x 2.50″ I.D. spring
Upper Spherical Bearing
• Top stud allowed to pivot during shock travel
• Eliminates binding common with rubber bushings
• Ensures smooth and consistent operation
Includes
• Upper & lower spring seats
• Lower seat jam nut
• Upper stud with integral spherical bearing
• Mounting hardware
Dimension A
• 16.45″ extended
• 12.53″ compressed
Recommended Spring Rate
• 400 lbs
• Consult your chassis builder
Adjustments For Drag Racing
Softening extension allows more downward force on the rear tires
Stiffening compression delays the return to normal ride height
Adjustments For Performance Street & Road Racing
Stiffening extension & compression reduces body roll
Enhances handling & cornering characteristics
Related
Spring seat bearing kit – S1409
Spring seat adjuster wrench – S1413
Front coil-over shock – S5021
