How to Install a Eibach Pro-Kit Springs - Coupe & Convertible on your 2005-2009 Mustang V6

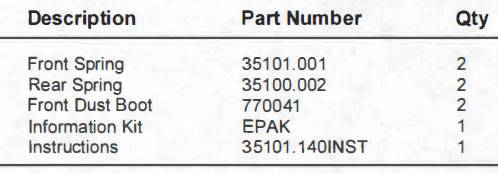

PRO-KIT - # 35100.140

2005 Ford Mustang 6Cyl. Coupe & Convertible

NOTES: Read All Instructions Before Beginning Installation

• Installation of a PRO-KIT Spring set should only be performed by a qualified mechanic experienced in the installation and removal of suspension springs.
• Use of a hoist is highly recommended and will substantially reduce installation time.
• Never work on or under a vehicle unless it is properly supported by safety stands and wheels are blocked.
• PRO-KIT Springs are marked with 01 and 02 (located at the end of the part number) designating front and rear spring respectively.
• PRO-KIT Springs should be installed with the Eibach Logo right side up. All original stock spring isolators, dampers and tubing should be retained from the stock springs and reused
• After installation, it is always important to inspect and adjust the following if necessary:
  • Wheel alignment such as camber, caster & toe.
  • Tire and/or wh-eel fender clearance.
  • Brake line clearance and attachments.
  • Brake anti-locking and anti-skid system sensors.
• Tire Rotation: To increase the life of your tires, it is recommended to rotate your tires every 3,000 miles.

Alignment:

After installation, it will be necessary to perform a full vehicle align ment using factory specifications. Eibach offers the following alignment kits for this vehicle.

Bumpstop Instructions:

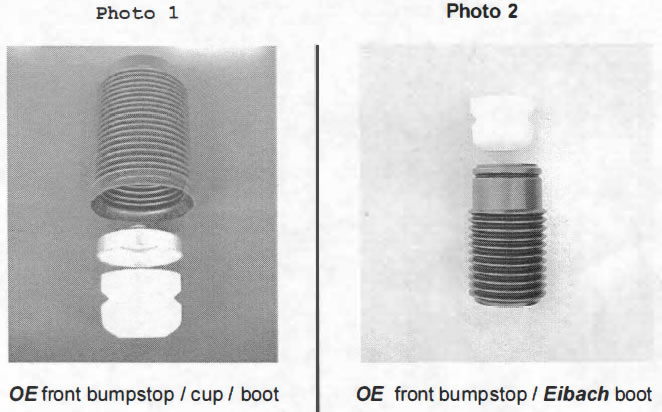

1. Remove and discard the OE front bumpstop dust boot and metal cup assembly when installing front springs. (See Photo 1)

2. Snap new Eibach boots onto OE bumpstops and reinstall. (See Photo 2)
