How to Install Ford Performance Center Instrument Performance Pack Boost Gauge Kit on your Mustang

Kit contains:

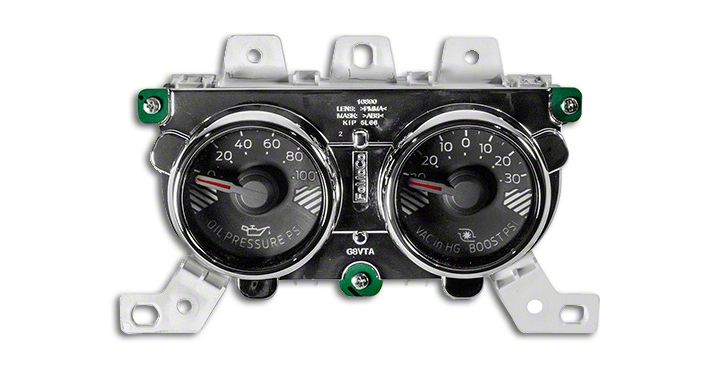

(1ea) Boost cluster
(2ea) Retention clips

Warning: this operation should be performed while vehicle interior is warm !

Release the clips and remove RH instrument panel trim panel.
Use the General Equipment: Interior Trim Remover​

Release the clips and remove the instrument panel center finish panel. Use the General Equipment: Interior Trim Remover

Disconnect electrical connector.

2. Remove the 4 screws and remove the ICM.

1. To install new ICM with boost gauge, reverse the removal procedure.
2. Install the two clips on ICM

1. To install, reverse the removal procedure. Verify that all retention clips are installed on panels.
2. Plug in electrical connector. Install panels.
