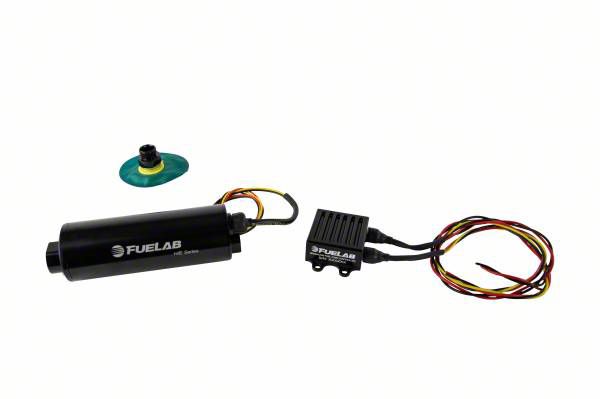

Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)
Item CV28796
Our Price
$1,259.00
Military, Medical & First Responders
$62.95 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- In-Tank Fuel Pump Kit Contains 550LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter _x000D_
- Compatible With Gasoline, Diesel, Methanol, and Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125 PSI Max Operating Pressure _x000D_
- Supports Up to 1250HP at Continuous Speed for Naturally Aspirated Pump Gas Engines _x000D_
- Higher Efficiency Means Less Current Draw and Reduced Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation and Vapor Lock _x000D_
- Lightweight, Super-Efficient DC Brushless Motor to Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes to Wear Out or Corrode; Low-Sulfur Diesel Compatible _x000D_
- Wet Motor Design with No Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 to 16 Volt Vehicle Electrical System Compatibility _x000D_
- Model 72004 Pump Controller Included for Full Speed PWM or 0-5V Input Speed Control _x000D_
- Continuous Duty Motor Speed Capability _x000D_
- Compact and Lightweight Design Weighing Less Than 3 lbs _x000D_
- Billet Aluminum Construction with Anodizing Per MIL-A-8625 Type II _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard or Port Style -8AN Fittings _x000D_
- Compatible with Most Aftermarket ECUs with PWM Output Frequency from 100Hz to 5000Hz _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
HIGH-PERFORMANCE FUEL DELIVERY. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 550 LPH is engineered to provide reliable, efficient high-volume fuel flow ideal for a variety of fuels such as gasoline, diesel, methanol, and ethanol. It ensures consistent fuel pressure and volume required for high horsepower applications, supporting up to 1250HP at continuous speed for naturally aspirated pump gas engines.
_x000D_CONSTRUCTION AND APPEARANCE. This kit features a compact and lightweight billet aluminum pump housing finished with MIL-A-8625 Type II anodizing for durability and corrosion resistance. The pump incorporates a twin screw rotor mechanism and a brushless DC motor equipped with neodymium magnets, ensuring long service life with minimal noise and electrical draw. Static seals are made from multi-fuel compatible fluorosilicone to prevent leaks and withstand harsh conditions.
_x000D_INSTALLATION. Installation requires moderate technical skill and is designed for in-tank mounting with compatibility for 12 to 16-volt vehicle electrical systems. The included remote-mount PWM controller allows seamless control of pump speed and operation without complex wiring modifications.
_x000D_WARRANTY. This product is backed by a limited lifetime warranty, ensuring long-term reliability and peace of mind.
_x000D_APPLICATION. Fits universal applications with some adaptation required to suit specific vehicle configurations and fuel system setups.
