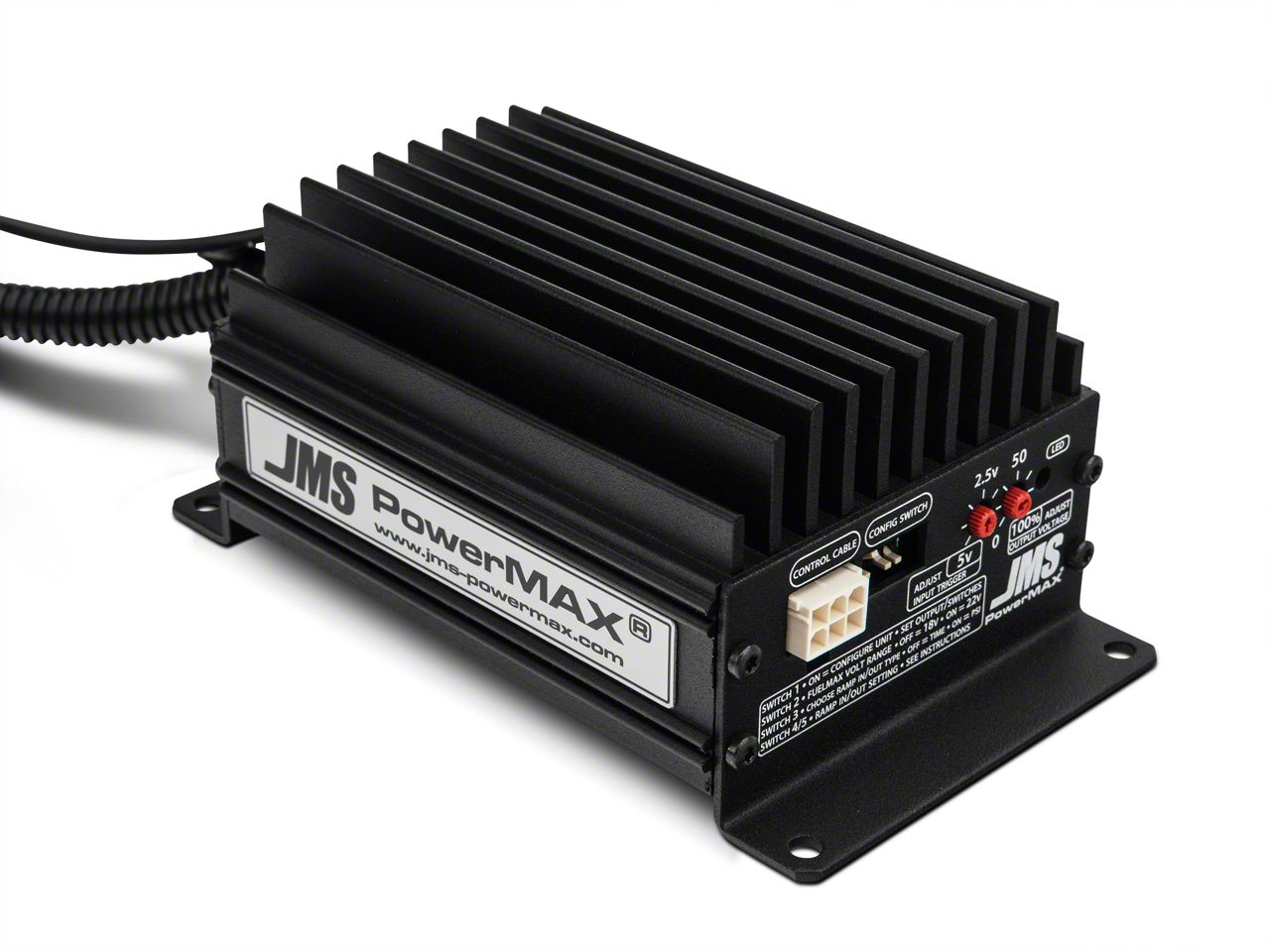

Hey guys. Today we're gonna be taking a look at and installing the JMS PowerMAX V2 fuel pump voltage booster for 2015 to 2017 Mustangs. This is gonna be perfect for someone who needs more fuel to support their build but that isn't quite ready to jump up to a return style system yet. Very basically speaking, the JMS is going to increase voltage to your stock fuel pump which is going to allow it to pump more fuel and ultimately support more horsepower. The JMS here is going to allow you to get the most out of your stock fuel pump before having to upgrade. So the JMS can increase the voltage output of the stock fuel pump by up to 85%. It does have adjustable voltage ramp in and out, and that's gonna help eliminate any fuel pressure spikes that you might otherwise see. It does work off a voltage or ground signal. And it works with both 12 volt and 16 volt battery systems. It comes with everything that you need for the install. And it is to be installed in either the cabin or the trunk away from extreme temperatures. Of course, it's gonna work for naturally aspirated builds, nitrous builds, and boosted applications too. It costs about $490. And the install will be a two out of three wrenches on the difficulty meter. So with all that being said, let's go ahead and get this installed in the car. All right, guys, so the first step is to actually locate the fuel pump driver module. And in this case with the 2015 Mustang, it's actually located right down here in this general area. So we are going to pull our back seat, just the bottom piece and get access to it. All right. Then we'll grab the fuel pump driver harness that JMS gives us, and this is basically gonna act as a jumper harness. So we're gonna disconnect the factory harness here. There is a pin on top, we would just push the pin, pull back, and remove the harness. So press down on the tab. Pull backwards and disconnect. So our JMS harness like I said is basically a jumper harness. We're gonna plug this end into our factory harness and then we'll plug this end into our driver. This end right here is actually gonna plug into the JMS unit. We are gonna snake this up into our trunk because that's where we're gonna mount it. So we're gonna go around the seat belt here into the trunk. All right guys, so, of course, you have a couple different places where you can actually mount this. We're gonna mount this now before we make any connections and we're gonna make our own ground. So you guys can either find a factory ground to connect to or you can make a ground for yourself. We are gonna mount this right here in the trunk. So it's gonna be easy to access. All you have to do is pull down the top of the rear seat and you'll be able to adjust here. Our wires we're gonna keep on the left side because they're gonna go directly to our other connections. So you get self-tapping screws and these are quarter inch. So I'm going to mount this right here in the trunk where it can easily vent and then take the self-tapping screws and just go ahead and get this in place. If you guys want to, you can drill some pilot holes. I know we're gonna drill pilot holes just to make this a little bit easier. All right. So at this point, I have one screw holding the JMS in place and that's actually gonna help me out a little bit so I can drill my other pilot holes on the other side. So before we make our connections and make our ground, we're actually gonna route some of the wires out of the way. So we're gonna take the connection that goes to the fuel pump driver. We're going to route it down back behind here. It's gonna come out on the side. So I'll reach through. Grab it. Pull it out from behind the liner and then we'll make that connection in a second. My ground, I'm just gonna create my own ground. I'm gonna put it up here. Gonna grind the paint off before I do that. My ground wire, I'm just gonna fish it back here for now. I'm only gonna need about this much of it showing so I can make my connection. All right. So we're just gonna grind away some of the paint here. All right. And we are gonna drill a pilot hole here too just because it makes it a little bit easier. All right. Now we're gonna take one of the self-tapping screws that JMS provides for us. All right. So we'll go ahead and make our connection here. You wanna make sure that the pins line up. So you may have to wiggle this side to side and then we'll tuck it down in here just to hide it. Next we're gonna install our control cable which is actually the majority of the cable that we got with the JMS kit. I am gonna hide this. We're actually gonna tuck it down the side of the car. It needs to run all the way up to the front to your gas pedal. So I'm gonna run this the same way that we ran our other wires. I'll run it up through here and then connect to the JMS. All right. So this is going to connect to our control cable spot right here on the JMS. I'm actually gonna run it up through here just so we avoid having a hard angle. So we'll clip it into place and tuck our wire. All right, guys, so a couple things we wanna be sure of is we wanna make sure we actually tuck this wire up. Wanna make sure that you run it behind your seatbelt. Then you go ahead, tuck it up underneath our plastics and work towards the front of the car. All right, guys, so now we're gonna connect our pedal position monitor to our harness that we just ran, then we're gonna go ahead and disconnect the plug up by the accelerator pedal and we'll plug this jumper harness in. All right. So there's a red tab on top of this clip. You'll slide the red tab up and then be able to disconnect to your connection. All right. So we'll plug these two together. Make sure we press down the red tab to lock it in place, then this end will plug right back into the top up here. We'll also push the red tab down again to make sure we lock this into place. And from here we're gonna zip tie everything up so it's out of the way. All right. So we're gonna loop up our loose hanging harness and we're gonna zip tie it up and out of the way. Wanna be careful that you're keeping it away from any moving parts. So at this point, what we're gonna do is we're gonna verify that the unit turns on. So we are going to hit the ignition button but not turn the car on. When we hit the ignition button, then the green LED should illuminate on. It's gonna stay solid. That's how you know that everything's functioning correctly. Another thing that you're gonna want to test is you're gonna wanna make sure the green LED will slowly blink, and that means that the unit is boosting the voltage. So a way to do this is to turn the ignition on and then press the accelerator all the way to the floor since the fuel pump voltage booster works off the accelerator pedal, and that's how it knows how much to boost. There are a couple more steps after this. You're gonna have to adjust the boost voltage and the range and then save the boost output voltage setting. So JMS does give you step-by-step instructions on how to do this. It is gonna be tailored to your specific car and your build and how much more voltage you're gonna need to accommodate your power. All right, guys, that's gonna wrap up this review and install. Keep in mind that you can always check this out more online. I'm Stephanie, and for all things Mustang, keep it right here at americanmuscle.com.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Fitment: 2015 2016 2017 2018 2019 2020 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
January 17, 2020
Easy install very easy of use
This was a very easy install and even easier to understand how it works with your pump. I recommend. Especially if overseas when fuel pumps cannot be shipped. Took an hour and a half to install.Helpful (0)
April 29, 2019
As long as you can contort yourself into the trunk easily, this install is a breeze. My tuners preferred choice of pump voltage booster.Helpful (1)
February 23, 2019
Made a big difference car run Better now it help my other support mods response betterHelpful (1)
October 25, 2018
It increased my fuel flow.
My car was running out of fuel at the top of 3 rd and 4th gear. I installed this booster and it fixed the problem. It took me about 2 hours to install. The installation video was most helpful. I know it fixed my problem but it would not be necessary on a stock or slightly modified car.Helpful (10)
August 03, 2018
Install was easy, didn’t take longer than 2 hours.Helpful (10)
April 25, 2018
instructions are a bit generic but still easy to instal, support was very helpfulHelpful (15)
August 25, 2017
This saddle pump is just what the doctor ordered when it comes time with your new supercharger to keep the fuel coming for those new Roush injectors. You need the constant fuel pressure ,leave it to American Muscle to match this JMS fuel pump to keep fuel on constant demandHelpful (16)
March 02, 2017
Easy as pie
Great product. Easy install. Plug and play. JMS rocksHelpful (13)
January 15, 2016
Works amazing with my hellion TwinTurbo kit
Love it and helps fuel flow. It only took four hours to put in and I have little technical experience so it really isn't that hard to install if you know what you're doing.Helpful (17)
I have a 2015 V6 3.7 Mustang with a Procharger installed. Two questions: Will this enhance the system I installed and give more power and do I need to re-tune my Mustang after install?
The JMS PowerMAX V2 FuelMAX Fuel Pump Voltage Booster would be an ideal option to run in conjunction with your new supercharger to increase the voltage of your fuel pump. More fuel equals more power. This item is plug and play.
Will this unit work in conjuction with the JMS pedalmax and what would be the best setting for my 3.6 pulleys paxton novi 2200sl setup?
The JMS FuelMAX can work in conjunction with the Pedalmax without any issues. We would not be able to recommend a setting as there are too many variables in setups. We would recommend starting at 2.5 for 1/2 throttle trigger on the first dial, and around 20% on the voltage increase on the right dial, and adjusting as needed. The percentage needed as well as the trigger point will vary based on your specific car and fuel requirements.
I just purchased this JMS FuelMax voltage booster. I previously installed an SEC10 Throttle Response Controller. Both items must be plugged into the electrical outlet above the gas pedal. Can both of these items be run in conjunction with each other and be plugged into the same port/spot? My car is a 2015 Mustang with a V6 and Procharger. Thanks.
This would require custom wiring in order to work with both options.
Will this work with a supercharged e85 setup?
The JMS PowerMAX V2 FuelMAX Fuel Pump Voltage Booster would be an ideal option to run in conjunction with a supercharger to increase the voltage of your fuel pump. More fuel equals more power.
I have the stage 2 whipple kit on my 15 mustang gt. I want to know can I use those injectors that came with the kit (72lb) along with the pump booster to run e85? Or do I also NEED 1000cc injectors?
You can use the 72lb injectors included with the Whipple supercharger stage 2 kit with the pump booster to run E85. The injectors in the kit would be compatible with that set up and you would not need to get 1000cc injectors.
Unfortuantly we are not familiar with the Proflex fuel commander system, and would not be able to determine if a fuel pump booster would work with this.
The JMS PowerMAX V2 FuelMAX Fuel Pump Voltage Booster is used to increase fuel flow from the OEM fuel pump, and would not provide any benefit on lightly modified vehicles, and will only benefit vehicles that have exceeded the limitations of their stock pump.
The JMS FuelMAX - Fuel Pump Voltage Booster V2 can be used with nitrous.
This JMS FuelMAX Fuel Pump Voltage Booster is adjustable. The stock fuel pump is sufficient to work with an intake on your vehicle, so this would not be a required upgrade for an intake.
The JMS FuelMAX Fuel Pump Voltage Booster would not allow E85, as it is the mechanically driven high pressure fuel pump that is unable to supply enough fuel. Several manufacturers are developing new pumps for this, but none have a release date yet.
This will work for the low and the high pressure pumps.
