Installation Time
(approx) 5 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details
Find Cylinder Heads & Valvetrain for your Mustang

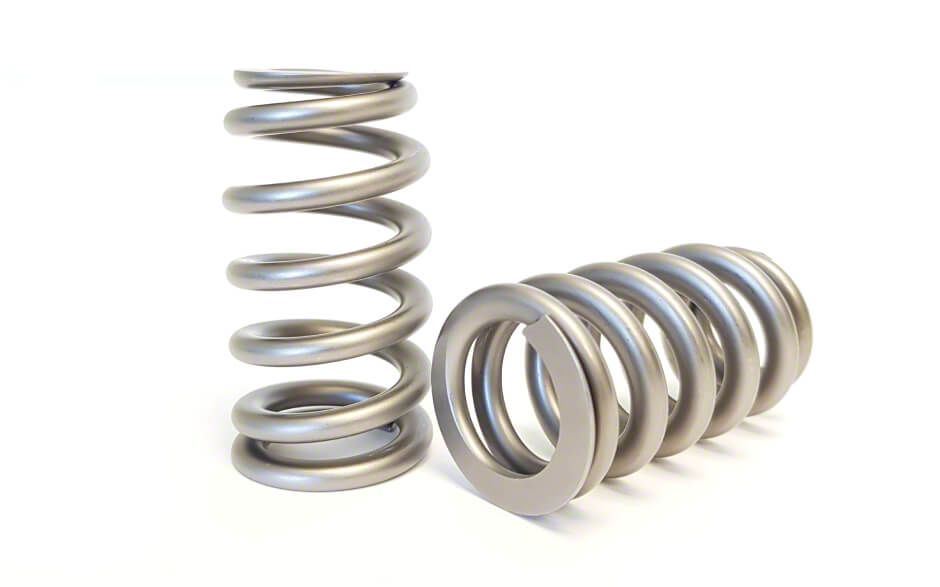

Kelford Cams ACALOY Beehive Valve Spring Kit (15-23 Mustang EcoBoost)Find parts that fit my vehicle
Item 433697
Our Price
$383.80 kit
Military, Medical & First Responders
$19.19 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- PACALOY Beehive Valve Spring Kit
- Engineered for High-Horsepower and High-RPM Applications
- Progressively Wound Beehive Design for Superior Fatigue Life
- Designed to Suit High-Boost Turbocharged Builds
- Provides Enhanced Control Over Valve Opening and Closing
- Significant Reduction in Valve Float and Harmonics
- Superior Strength Compared to Standard Chrome Silicon Springs
- Installs at 37.70mm (1.484") for Proper Tension
- Compatible with Aftermarket Performance Camshafts
- Made in New Zealand by Kelford Cams
- 76lb Seat Pressure @ 37.70mm Installed Height
- Coil Bind at 24.00mm
- Five-Hour Installation
- Fits 2015-2023 Mustang EcoBoost Models
Description
High-RPM Stability and Valvetrain Protection. The Kelford Cams ACALOY Beehive Valve Spring Kit for the 2015-2023 Mustang EcoBoost is engineered to overcome the limitations of the factory valvetrain when pushing for higher boost levels and increased engine speeds. By providing significantly higher seat pressure and better harmonic resistance than OEM springs, this kit prevents valve float, a dangerous condition where the valves fail to close quickly enough at high RPM. This ensures your 2.3L EcoBoost maintains peak volumetric efficiency and protects your engine from catastrophic piston-to-valve contact during aggressive track sessions or high-output tuning.
Advanced ACALOY Material Science. These springs are manufactured from Kelford’s proprietary ACALOY silicon chrome steel, a high-tensile material designed specifically for the extreme thermal and mechanical stresses of turbocharged applications. ACALOY undergoes a rigorous multi-stage heat treatment and shot-peening process to increase fatigue life and resist sacrificing (losing tension) over time. For the EcoBoost owner, this means a valvetrain that remains consistent and reliable even under the high cylinder pressures generated by upgraded turbochargers and E85 fuel blends.
Beehive Design for Reduced Valvetrain Mass. The Beehive shape of these springs features a unique ovate wire profile and a smaller top diameter. This design is naturally self-dampening, effectively breaking up the harmonic vibrations that can cause spring failure in traditional cylindrical springs. More importantly, the smaller top allows for the use of much smaller, lighter titanium retainers. By reducing the reciprocating mass of the valvetrain, the engine can rev more freely and respond faster to throttle inputs, making it an essential upgrade for any 2015-2023 Mustang EcoBoost equipped with aggressive aftermarket camshafts.
Installation. Putting this Kelford Cams ACALOY Beehive Valve Spring Kit on your Mustang EcoBoost takes 5 hours to install.
Application. The Kelford Cams ACALOY Beehive Valve Spring Kit fits 2015-2023 Mustang EcoBoost models.
Kelford Cams KVS250-X
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (16) PACALOY Beehive Valve Springs
- (16) Ultra-Lightweight Titanium Retainers (on -T models)
Questions & Answers
No questions about this product yet.
Ask the First Question
Will It Fit My Mustang
- EcoBoost - 15, 16, 17, 18, 19, 20, 21, 22, 23
