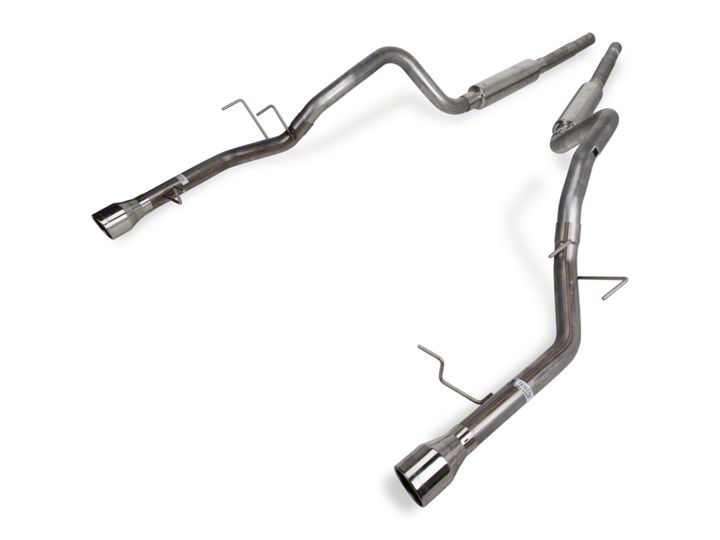

How to Install a Pypes Mid Muffler Catback Exhaust on your 2011-2014 Mustang V6

Installation Time

2 hours

American Muscle
Shop Parts in this Guide

PLEASE TRY INSTALLING OUR WAY FIRST!


1. Begin by placing the vehicle on a lift or four jack stands at maximum height. This will aid in an easier installation.
2. Unbolt the existing system from just behind the factory x-pipe using a 15mm wrench on the band clamps. Loosen the clamps at the factory axle-backs with a 15mm wrench. Now remove the factory mid-pipes. Last, unbolt the factory muffler hangers using a 13 mm wrench and drop the axle-backs from the vehicle.
3. You can now re-install the four axle back hangers on to the frame rails. Leave the bolts loose until the entire system is installed.
4. It's time to install your new Cat-back system. Begin by installing the two 16" slight bent pipes to the factory x-pipe (straight end towards the x-pipe and slight bend towards the mufflers) using the factory band clamps. Snug the bolts with a 15 mm socket but do not tighten all the way at this time.
5. Next install the new M-80 cylindrical mufflers onto the short pipe (slight bend towards the mufflers and the straight portion into the clamps at the h-pipe). The HVC21 band clamps will be used at both the inlet and outlet. These will appear to be very close o the drive shaft.
6. Next, install the over the axle portion on the mid-pipes, and slide the axle-back muffler delete tailpipe wire forms into the factory muffler hangers. SFM66M uses the "PypeBomb" axleback to finish the system. Use an HVC21 band clamp at the connection between the mid-pipes and the tailpipes.
7. Finally, slide the EVT52 tips on to the tailpipes, SFM66/69 only. Clamp the tip on using a.HVC21 band clamp.
8. Finish the system by making all your final adjustments to position the mid pipes, mufflers and tailpipes. Now tighten all the band clamps. The use of air tools is highly recommended for this step.
Note: When tightening the HVC21 clamp, make sure the I-block in the center of the clamp is against the head of the bolt. Failure to do so will result in the clamps not tightening all the way or the 1-blocks being damaged.
9. Check all clamped joints periodically as they may come loose.
Note: If you find the new tips are not aligned properly in the bumper cutouts, you may need to adjust your mid-pipes by loosening the two band clamps located where your factory x-pipe meets the mid-pipes. A slight rotation of the mid pipes will allow for the best fit.
Now it's time to fire up that muscle car and eniov vour new Pypes Performance Exhaust.

This guide applies to Vehicle years: 2011, 2012, 2013, 2014 and Submodels: V6
