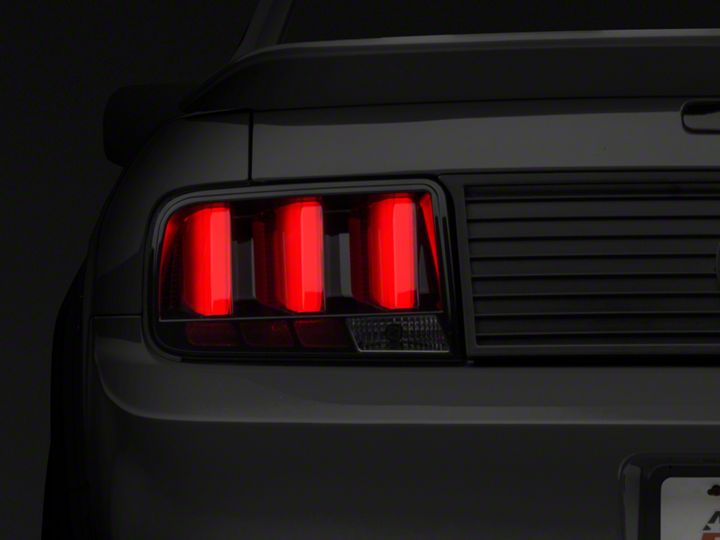

How to Install Raxiom Smoked Vector Tail Lights - Red Diffusers on your Mustang

Step 1 Using a panel removal tool or plyers, remove the (2) lower clips on the trunk trim panel. Then unscrew the upper fasteners.

Step 2 Remove the (3) tail lights bolts.

Step 3 Unplug the factory tail light harness, and remove.

Step 4 Connect A to B to get the lights to sequence with the turn signals. Connect A to C to bypass the sequential turn signal.

Step 5 Transfer the factory reverse bulb into the new tail light.

Install the new tail light in reverse order.
