How to Install Roush Coil Cover Kit - Red on your Mustang

Passenger Side

1. Remove the oil fi ll cap on the passenger side of the engine. Remove the PCV hoses on both sides of the engine by pushing on the small tabs and then pulling up on the elbows.

2. Pull up fi rmly on the OEM coil cover to remove it from the valve cover retaining studs.

Driver Side (with OEM intake)

On non-ROUSHcharged engines, access to the driver side coil cover is blocked by the induction resonance tube.

Remove the clamp that connects the induction resonance tube to the intake hose. The tube does not need to be fully disconnected for this installation. Once the clamp is removed, the tube can be moved out of the way.

Driver Side (ROUSHcharged models)

On ROUSHcharged engines, the air intake tube blocks access to the coil cover.

1. Begin by loosening the hose clamp where the clean air tube connects to the throttle body.

2. Loosen the hose clamp at the MAF housing.

3. Remove the PCV hose from the valve cover and from the clean air tube. Push the gray tabs clockwise as shown and pull fi rmly to remove.

4. Remove the vacuum hoses from the clean air tube opposite from the PCV.

5. Pull the clean air tube towards the front of the vehicle, compressing the bellows near the air fi lter housing. This will allow the opposite end to come free from the throttle body. Once free, simply lift the clean air tube up and out.

6. With the cover exposed, lift the cover to release it from the retaining studs and maneuver it out of the engine bay. Lift the end near the front of the engine and clear the PCV fi tting. Then pivot the cover as shown and remove.

ROUSH COIL COVER INSTALLATION

1. Install the six (6) rubber grommets from the factory covers into the ROUSH coil covers.

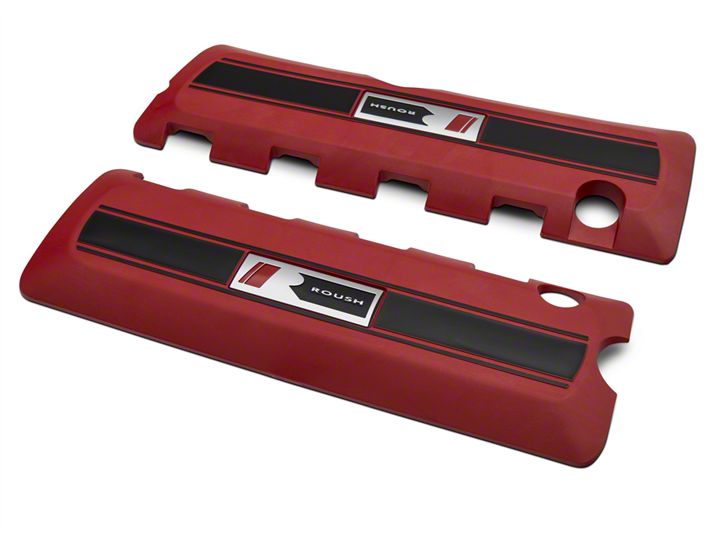

2. Installation to the valve covers is the reverse set of operations from the removal of OEM covers. The “Fingers” on the coil cover point inboard towards the center of the engine. Notice the features unique to each coil cover. The driver side coil cover shown below has a large semi-circular notch on the bottom; the passenger side has a notch for the oil fi ll cap by the front.

Installation is the reversal of removal.

Be sure to reconnect the PCV lines, fasten the oil fi ller cap, and reattach the induction resonance tube (if applicable) after seating the coil cover onto the retaining studs.

Congratulations!!! You have completed the installation of the ROUSH Performance Products, 2011 Mustang 5.0L Coyote Coil Covers. It is recommended that you save all parts removed from the vehicle during the installation of this kit.
