Review & Install Video
Hey, what's going on, guys? Adam here with AmericanMuscle.com, and today I'm bringing you my quick review of the Saleen S302 Aluminum Fuel Door in the Brushed Silver finish fitting all '10 to '14 S197 Mustangs. So if you're the owner of a '10 to '14 Mustang and you're looking for a way to replace the boring stock plastic fuel door with a high-quality aluminum replacement like this one, then you might be interested in the Saleen S302 Aluminum Fuel Door in the Brushed Silver finish.
So with this particular option, you are getting a very unique styling from the Saleen name to add to your Mustang, which is definitely an eye catcher. Now, I can definitely tell you first-hand this is not a vinyl lettering job. It actually has the Saleen name officially engraved into the material. Now, speaking of the materials, this was precision CNC-machined out of lightweight 6061 billet aluminum for superior durability, and as I mentioned, has that Saleen name engraved right on the striker plate. That striker plate also has magnetic clasps to keep that door closed, even at the highest speeds.
Now, this option in particular has that brushed silver finish. Now, as I mentioned that before, this is a brushed stroke textured look, giving it some added style. Now, there are other options on the site, such as the MMD, or the Modern Muscle Design, and SHR, such as Silver Horse Racing, and these can range anywhere from $130 to about $220. This particular option falls at the top end of about $220, but you do wanna keep in mind that's got the rarer name of Saleen, which can definitely bump the price up. Now, there are other options out there that don't have engravings that kind of fall on the less expensive end from $130 to about $200, and from $200 up, you can pretty much expect engravings, such as Mustang and Foose.
The installation for this part will be extremely straightforward and will only require a couple of simple hand tools. You wanna make sure you have a 7-millimeter socket, a quarter-inch drill bit, a small flat head screwdriver, and an 8-millimeter combination wrench. Now, I do have one quick tip before we get started. I would definitely recommend taking a clean rag or towel and sticking it into the filler neck after you open your factory fuel door. This will definitely prevent any plastic pieces or debris to get into your fuel pump, which can definitely clog that up and cause some issues.
Using the quarter-inch drill bit, you can drill out the factory plastic shroud using the four indentations as a guide for the bit. And once you get that off, you can use a small flat head screwdriver to pry the shroud off from the body and then use a 7-millimeter socket to get the factory fuel door off of the body and remove that and set it aside.
There was a gasket provided in your kit for the aluminum fuel door, which you wanna place around the filler neck after you remove the rag that we initially placed in there for protection. Now, once that's in there, you wanna make sure the larger lip is facing the inside of the filler neck and the smaller lip is facing the outside. Now, if you need a reference to see how this gasket should be installed properly, you can use the installation guide that's provided in this kit.
So one of the great things about this kit is that all of the hardware comes preattached to the back of the fuel door. Once you get everything done up until this point, you wanna remove the three 8-millimeter bolts on the back of the fuel door, as well as the spacers, and place it against the vehicle. Once you get that done, you can replace those spacers and 8-millimeter bolts on the back of the fuel door and tighten them down with that combination wrench we started off with.
So from start to finish, you're looking at about 15 minutes for the install of this S302 Aluminum Fuel Door. I would definitely give this a one out of three wrenches on the difficulty meter because it is something anybody can do with a little time in the driveway at home.
So just to quickly wrap things up, guys, if you're looking for an easy way to replace the factory fuel door on your '10 to '14 Mustang with a show car quality piece, then you might be interested in the Saleen S302 Aluminum Fuel Door with the Brushed Silver finish available right here at AmericanMuscle.com
Race Inspired Style.

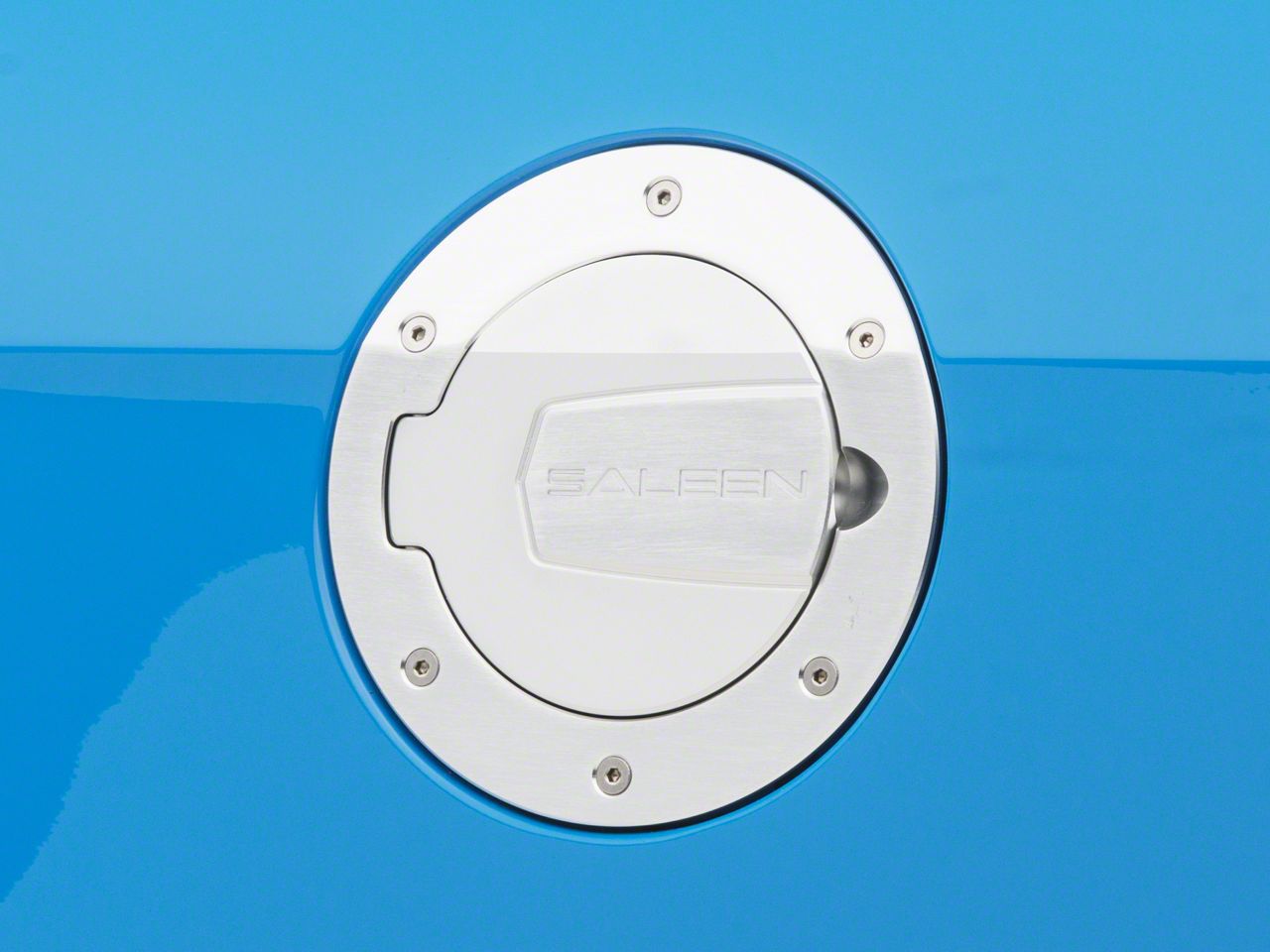

Add a race inspired look to your 2010-2014 Mustang by getting rid of the bland Ford fuel door and installing a Genuine S302 Aluminum Door featuring a Saleen Logo. Manufactured out of long-lasting lightweight aluminum, this precision fit modification will last through many years of everyday use and exposure to the elements. Give your very own S197 Pony some race inspired Saleen styling with this high quality upgrade.Quality Construction.
Milled from durable 6061 Billet Aluminum, this S302 Fuel Door features a brushed finish and rare-earth magnets to secure the fuel door when not in use. Designed as a direct fit replacement for your factory door, no modification or drilling will be required and all necessary stainless steel hardware and mounting bushings are included. Application.
This S302 Saleen Brushed Aluminum Fuel Door is specifically designed to fit 2010-2014 Mustangs, including V6, GT, BOSS and GT500 models.
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- What's in the Box
- (1) Fuel Door
- Mounting Bushings
- Stainless Steel Hardware
- Installation Info
Installation Time: (approx) 15 Minutes
Difficulty Level:Simple installation for anyone
- Tech Specs
- Will it fit my Mustang?
- Boss 302 - 12, 13
- GT - 10, 11, 12, 13, 14
- GT500 - 10, 11, 12, 13, 14
- V6 - 10, 11, 12, 13, 14
