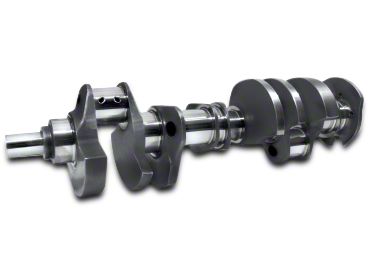

Scat 300 ci Street Strip Rotating Assembly (96-04 4.6L)

Market Price $2,643.99 You Save 12% ($305.64)
Our Price

$2,338.35

FREE Shipping

  • Item 393999
  • MPN# 1-47803BI

Will this fit your Vehicle?

In Stock Ships same business day.
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • Scat Street-Strip Rotating Assembly
    • Punch Out Your 281ci to a 300ci for More Power
    • Includes Forged Crankshaft, H-Beam Connecting Rods, and Forged Dish Top Pistons
    • 3.572" Bore
    • 3.750" Crank Stroke
    • 5.850" Rod Length
    • Compression Ratio 10.1:1 W/42cc; 9.0:1 W/51cc; 8.8:1 W/53cc
    • Internally Balanced
    • Fits 1996 to 2004 2V and 4V 4.6L V8 Mustangs
    Superior Internals. Build your modular engine to withstand the abuse that accompanies high powered Mustangs with a Scat Street Strip Rotating Assembly. Designed specifically for 2-valve and 4-valve 4.6L V8 engines, this Scat Kit replaces your stock rotating assembly with forged internals. This Scat Stroker Kit will punch out your 281 cubic inch V8 to a more respectable 300 cubic inches.

    Kit Includes. Maximize the displacement of your engine with a cubic inch-enhancing stroker kit that includes a 4340 forged steel crankshaft, 4340 forged H-Beam connecting rods with 7/16" cap screws, forged dish top pistons as well as rings and main & rod bearings.

    Compression Ratio. The Scat Stroker Kit will allow for different compression ratios depending on the heads installed. Examples: 10.1:1 with 42cc heads; 9.0:1 with 51cc heads; 8.8:1 with 53cc heads.

    Serious Upgrade. Replacing the rotating assembly is a serious job that requires a wide range of tools, space, and knowledge. Without a decent mechanical background, it is best recommended to take this to a shop for install.

    Application. This Scat Street-Strip Rotating Assembly Kit is designed to fit 1996-2004 Mustangs equipped with the modular 4.6L 2-valve or 4-valve V8 engine - including the GT, Bullitt, Mach 1 and SVT Cobra models.

    Fitment: 1996 1997 1998 1999 2000 2001 2002 2003 2004 Details

    CA Residents: Warning: California's Proposition 65

    What's in the Box
    • (1) Crankshaft
    • (8) Connecting Rods
    • (8) Pistons
    • Rings
    • Bearings
    Installation Info
    Tech Specs
    Will it fit my Mustang?

    You Might Also Like

    Customer Photos

    Questions & Answers (14)

    5 Top Rated Questions

    With this assembly wold you have to bore and stroke you engine block to be able yo make it work ? Or would the stock bore and stroke size work with this kit ?

    • The Scat 300 ci Street Strip Rotating Assembly will require the engine block to be bored and clearance for the stroker crank in order to be installed.

    Helpful (2)

    Whats the power rating on these parts? I'm going for 600whp will this support it?

    • Hey Ami, This kit is designed to handle just about any high powered application and would be able to hold up to 1000hp safely. SO the 600 you are looking at should work perfect with this rotating assembly

    Helpful (2)

    Depending on tune and other modifications what type of increase in Hp are we looking at?

    • There are a number of factors that will determine power output with the Scat 300 ci Street Strip Rotating Assembly. Unfortunately due to a number of variables, we are unable to provide an accurate estimate of power gains without further information.

    Helpful (1)

    What does this Crankshaft actually turn your motor into? I found one on Jegs that is a 301 and I'm really loving oking for that but it doesn't have a Forged Crankshaft and this one does and I'm looking to spray a 150 Shot of Nos! Will I be able to do that on this Stroker! Also how much HP does this Stroker actually add to the car? What is the Pistons Dish? The one I looked at is 22cc and I'm choosing between this one and that other Stroker! And what is the Comp Ratio! Does this kit come with all the Bearings and everything needed for the instal? And if I get this what can I bore my Motor over to or what will I need to bore it to?

    • The Scat 300 ci Street Strip Rotating Assembly will include pistons, rods, and a crank as well as all the rings and bearings. The kit has a 3.572" bore and 3.750" bore, resulting in a total displacement of 300.631 cubic inches or 4.9L. Horsepower added will depend on a large number of factors, such as head, intake and exhaust flow. Compression ratio will vary based on head volume. Compression Ratio 10.1:1 with 42cc heads, 9.0:1 with 51cc heads, and, 8.8:1 with 53cc heads. Piston dish/dome is +18.50cc

    Helpful (1)

    Will this work with TRICK FLOW 380/375 TOP END ENGINE KIT W/ 44CC HEADS ?

    • All Scat Crankshaft assemblies will come with factory spec pistons which will not work with your Twisted Wedge Modular Kit. Generally, Scat will need to build you a custom crankshaft to work with those heads.

    Helpful (1)
    Post Your Question
    9 More Questions
    On a 2003 Mach 1. Will anything HAVE TO be done to the heads, like a port job? Also will the stock cams work on this application? 1 answer
    Does this still work with the steeda under drive pullies as far as the harmonic balancer? It says the crank shaft is internally balanced. Does that correspond to the steeda harmonic balancer? 1 answer
    Does this kit offer the pistons for a boosted application? 1 answer
    Hi. I have a 99 cobra svt. I am wondering if the Scat 300 ci Street Strip Rotating Assembly (96-04 4.6L) will be a good kit for a t3 t4 twin turbo set up? 1 answer
    With this set up and 270 cams would bamatunes be able to tune this 1 answer
    Can u use this rotating assembly with stock bore? 1 answer
    Is a tune required after installation? 1 answer
    Will this work with an automatic trans? 1 answer
    Will this kit work with the boss 5.0 block for 2v applications? 1 answer

    Customer Reviews (1) Write a Review

    Overall Rating 5

    out of 5 stars

    Installation Time:Full Day

    • Performance Gain 5 5
    • Fit 5 5



    • 5/5

      Installation Time: Full Day

      April 17, 2017

      Awesome

      A friend told me about this and I ordered it not knowing too much about it but I am sure glad I did. This assembly gives a super solid feel when ripping through gears. Couldn't be happier

      J

      Year: 2002 Submodel: GT

      Helpful (11)
