(approx) 4 Hours
Mechanical expertise or professional installation required.
Hello and welcome back to Stage 3 of AmericanMuscle’s project Foxbody, as you can see we’re currently out enjoying the fruits of our labor which took place in the first two stages, and for the first time since we started this project, I can honestly say I’m not embarrassed to be out driving it. Of course a part of that lack of embarrassment is because we haven’t pulled up to anything fast yet, there’s no doubt our GT is looking good, but what’s the point of having all those Cobra parts if we don’t have the performance to back it all up, well, welcome to stage 3 my friends, where all of that is about to change. Before we get back to the shop where we lay out our plans to increase our tire slaying abilities, let’s recap what we knocked out in stage 2. In stage 2 we completely replaced our destroyed factory convertible top, with a brand new top and rear glass, along with just about every piece of molding and weather stripping you can think of, we put the finishing touches on our convertible Cobra vision, thanks to our Cobra tail light covers and 10th anniversary Cobra style wheels, made possible through the 5 lug conversion kit we installed. Finally, we moved to the interior and made it look as good as our exterior, thanks to the freshly painted dash, new carpet, and other miscellaneous items making our GT look and feel like it was 1993 all over again. Alright, I can’t wait to get back to the shop to show you all the stuff we have in store for this stage, let’s get to it. As you can see we have some big plans for our 302, all with the goal of replicating the Cobra’s power plant, which is going to drastically improve our performance. For starters, we’re going big with a trio of parts from Ford Racing, all of which will do wonders for our 5.0. First up we’re looking at the Turbo Swirl GT40X aluminum heads from Ford Racing, these heads are a variation on the original GT40 heads found on the 93 Cobra, with a few improvements. For one they’re made out of lightweight aluminum versus the heavier cast iron and they’re designed to flow much better than the original GT40’s. To top it off, we’ve installed some Cobra valve covers. For us to see the biggest gains using these heads, our stock cam just isn’t going to cut it, so we’re going to go with a popular street cam, the Ford Racing E303. This hydraulic roller cam should really compliment those GT40’s, and is an excellent choice for any street car thanks to its low to mid range torque. Of course we’re still going to have that great lope at idle which should sound amazing by the way, but it’s not radical enough that we’re going to have to worry about stalling out at every red light. The cheery on top for our 302 has to be this Ford Racing intake manifold, which is getting nearly impossible to find anymore, this part, paired with our Ford Racing heads and cam, is going to allow our 5.0 to flow some serious air, and will complete our Cobra transformation under the hood. Alright, in order to move all that extra air out of the engine, we’re reworking out entire exhaust from the headers all the way back, in order to keep up with that Ford Racing theme we’ve got going on under the hood, we selected our ceramic shorty headers, which we’d already installed when we did all of our motor work, and are designed to work specifically with those GT40 heads. From there, we go to BBK’s off road H pipe which does feature mandrel bent 2.5” stainless steel tubing, and should bolt up to those shorty headers without issue. Finally, everything’s going to exit out of Flowmaster’s American Thunder Cat-Back exhaust, which features those iconic 44 series mufflers. This exhaust features 100% stainless steel constructions throughout, including 2.5” mandrel bent tubing, and those OE style polished tips. Alright I think it’s safe to say we’ve got the performance side of things pretty well taken care of, but we haven’t addressed the fact that this thing still handles like a boat. So we’re going to attack our suspension much like we did our engine, go big or go home. Ron and I are just finishing up installing the KONI STR shocks and struts, which are actually a killer set for the price. We’re pairing those up with the SR Performance lowering springs, which should lower our Fox about an inch and a half on all 4 corners. Finally, we have the car in the air, the wheels off, we figured this would be a great time to ditch those rusty old drum brakes, in favor of these brand new disks. To dial in our new Fox’s alignment, we’ve installed the SR Performance caster/camber plates, which should get everything back into spec without issue, and offer a little bit more adjustment in future if need be. Since our car is a convertible, we are losing some of the structural rigidity which comes along with having a steel roof, to help combat this, we’ve installed the SR Performance subframe connectors, this part along with our springs, shocks and struts, should take all the laziness out of our suspension, and get it handling like a sports car should. Alright, now everything’s pretty much buttoned up, we’re going to tie it together with one of our custom Bama tunes, and see if all this hard work has paid off in really cranking up the power. We’ve already grabbed our baseline run after stage 1 when we got the car back from painting, so I’m going to hop in, bury this thing one more time, and see what the improvements are. Alright, our baseline run with our 93 GT gave us 194 horsepower, and 266 ft/lbs of torque. With all of our stage 3 modifications, the car put down an impressive 279 horsepower, and 317 ft/lbs of torque, making for a solid gain of 85 horsepower over our baseline numbers. The car did even better throughout the power band, picking up as much as 103 horsepower, and 107 ft/lbs of torque, throughout the curve. With the power finally there to back up our Cobra appearance, I think it’s time for one more cruise to see how our Fox does with all its modifications. Alright, stage 3, performance, check. The car's breathing better, the tune brought it all together, and as a result, this thing has some serious balls. Here we are, we’re in the back roads, moving along at a good clip, I’d saying the car is doing quite well, it’s pretty confident, I feel confident driving it, I don’t feel like I’m going to fly off the road, which I couldn’t have said before we did all this work. The car feels good, sounds awesome, and it’s just a whole hell of a lot more fun to drive. I know some people might question this build, you know, why a convertible, why a Fox body, well, because we wanted to, I mean that’s what car building is all about, it’s doing what you want. In this case, we’ve never seen Cobra convertible Fox bodies, so we wanted to build one, and I think we did a hell of a job. So is this the last you’ve seen of this car? I don’t know, maybe, maybe not, but in the meantime, thanks for watching stage 3 of AmericanMuscle’s project Fox body.
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation
Fitment: 1979 1980 1981 1982 1983 1984 1985 1986 1987 1988 1989 1990 1991 1992 1993 Details
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
June 03, 2019

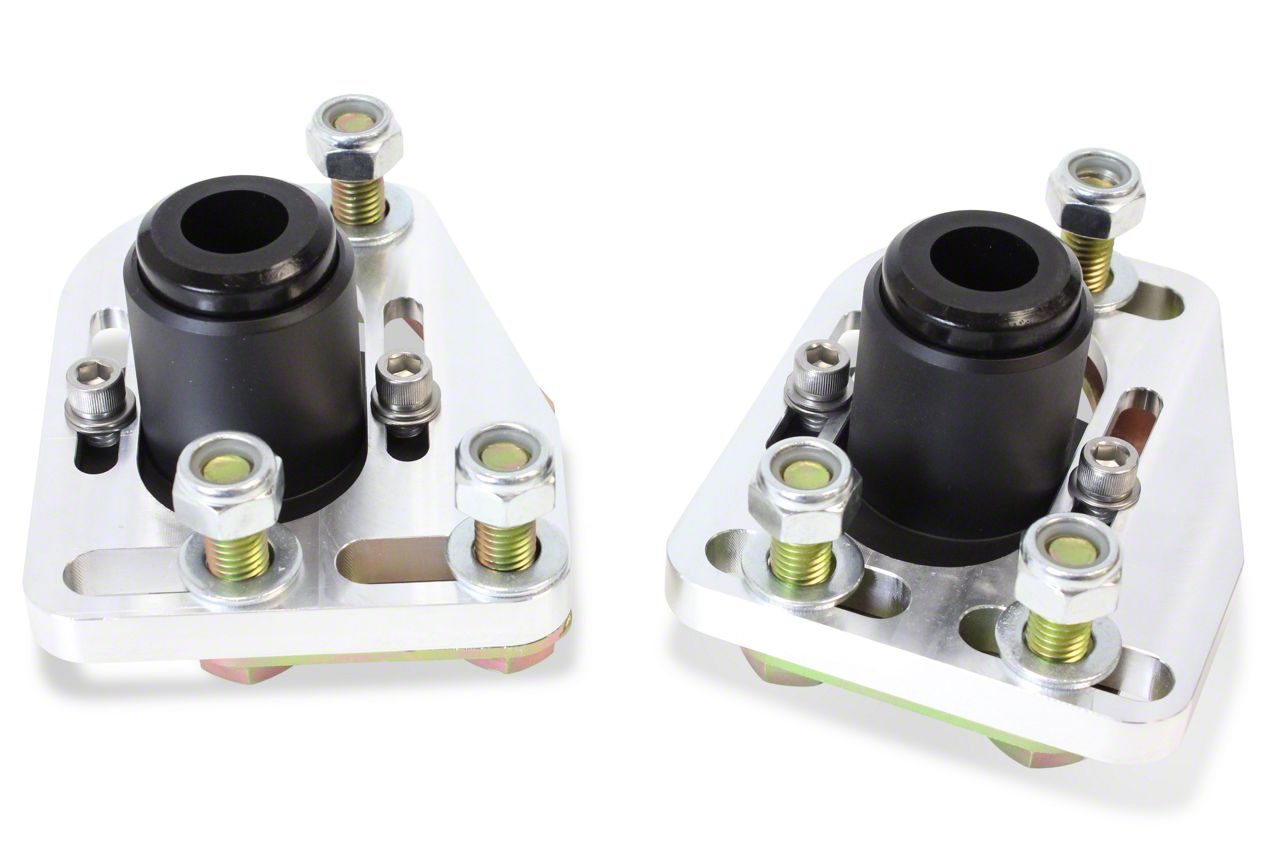

Caster Camber Plates
all went well good fit easy to install directions were goodHelpful (0)
April 24, 2019
Caster camber plates
Parts were high quality and installed with ease with Instructions would recommend to anyoneHelpful (1)
March 09, 2019
awsom camber plates
easy install ,yes I would recommend these plates . great looking ,great quality, thanksHelpful (0)
February 27, 2019
You get what you pay for
As I progress through the mutiple foxbody enhancements I chose to accomplish one underlying constant keeps hitting me in the face. You get what you pay for... I returned them because they didn’t function correctly. Went to summit and bought qa1’s.Helpful (3)
August 14, 2018
Great purchase! Looks great and gets my wheels where they need to be!Helpful (1)
May 01, 2018
need your help
i purchase a set about week ago had them installed at a local garage looks great rides a little moor firmer yes i would recommend.Helpful (3)
January 22, 2018
NICE looking, but,,
The black part is plastic and too tall, the Lakewood struts, shaft is not long enough to use the spacers, I'll be returning this item.Helpful (5)
January 18, 2018
Made front alignment much easier!!!!! Went on easy with basic tools.Helpful (4)
September 15, 2017
exactly what was expected great product. easily installed and a lot of adjustmentHelpful (3)
August 23, 2017
Instructions inadequate. Not a fully intuitive install either, after A LOT of head scratching with what to do with the dust boot and the rubber stop molded into the top of it. Allegedly you have to trim it to get the required spacers in and enough thread showing at top of strut to get bolt on. The instructions are elsewhere for BBK brand in a sn95. What a joke. Not too mention the dust boot and it's rubber top now sits very tight in the strut tower molded hole, how this is going to be adjusted is going to be interesting...not. Maybe somebody here who has installed them can give a detailed install. IMO junk and buy something else.Helpful (7)
Why are some customers complaining about the lack of instructions? What is the reason for the missing instructions, how hard is it to add those and avoid the complaints?
Instructions are provided by the manufacturer. In the case of the SR Performance Caster Camber Plates, SR Performance does not provide instructions.
will these work with a strut tower brace?
Yes, these can be utilized with a strut tower brace.
Could you please post the recommended caster/camber/alignment settings for these after installation?
There is no specific setting, as it will vary based on how much the vehicle is lowered.
Hello are SR PERFORMANCE camber plates urethane bushed or just spherical bearings
The SR Performance Caster Camber Plates will utilize a urethane bushing for the camber plate, and will reuse the OEM upper spring perch/bushing.
Ive got a cervini 2.5" fiberglass cowl hood and it looks like its going to be very tight between the hood and the top of the strut( pretty sure its going to contact) - anyone had experience with this?
We have not experienced any issues using the SR Performance Caster Camber Plates with any of Cervini's Fiberglass hoods.
Yes, the SR Performance Caster Camber Plates are designed to fit on all of the 1979 through 1993 model year mustangs.
No, go to Maximum Motorsports website, they make a specific plate for your car
No, will need the ones that state they will work with coil overs
(approx) 4 Hours
Mechanical expertise or professional installation required.
What's in the Box
Not compatible with Coil-Over Kits
