How to Install SR Performance Billet Aluminum Vertical Links on Your 2015-2016 Mustang

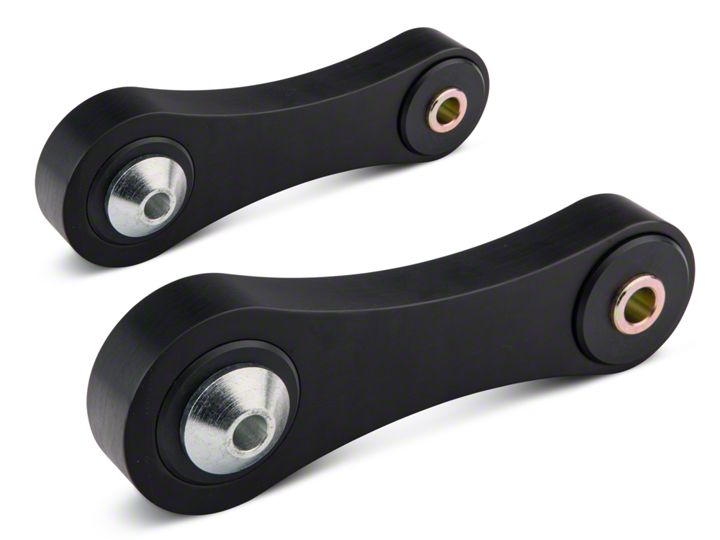

(1) - Left Vertical Link

(1) - Right Vertical Link

**Important Notes:

It is HIGHLY recommended that you get a professional alignment after installation of toe arms.

Step 1:

On a level surface, raise and support the rear of the vehicle on jack stands. Remove rear wheels.

Step 2:

Locate the rear toe link.

Step 3:

Using an 18mm wrench remove the vertical link lower bolt.

Step 4:

Using the 15mm wrench, remove the upper bolt, remove the stock vertical link.

Step 5:

Install the new vertical link. The larger end  towards the top. The beveled aluminum insert faces the hub. The smaller end bolts on the bottom. **Note: The large washers are placed on either side of the lower bushing.

Step 6:

Attach using factory hardware. Torque to factory specifications.
