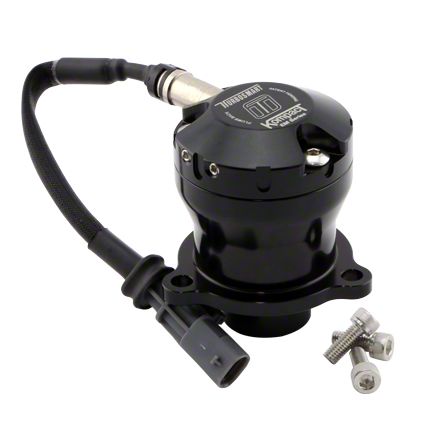

Turbosmart Kompact Shortie Recirculating Blow Off Valve (15-23 Mustang EcoBoost)Find parts that fit my vehicle

Item 390277
Product Image
$0.00
21 Reviews
Open Box Only - Starting at

$152.97

Will this fit your Vehicle?

Select a different vehicle Help?
Update or Change Vehicle
View Open Box Items

    Product Information

    Features, Description, Reviews, Q&A, Specs & Installation

    Features

    • Small Compact Size
    • Allows for Higher Boost - Up to 30psi
    • Recirculating Valve - Quiet Operation
    • Mechanical - Vacuum Activated
    • Adjustable - Soft to Hard
    • Aircraft Grade Aluminum Alloy Construction
    • Straight Forward Bolt-On Installation
    • Fits All 2015-2023 EcoBoost Mustangs

    Description

    Enables Greater Boost. The stock blow-off valve (BOV) is adequate for the every day commuter car. But if you are planning on increasing the boost and power of your EcoBoost Mustang you are going to need a Turbosmart Kompact Shortie Blow Off Valve that can handle the extra pressure - up to 30psi.

    Recirculating Blow Off Valve. Turbosmart designed their BOV to be a fully recirculating valve. This means all the excess pressure is routed back into the vehicle's intake. Providing quieter operation, this Blow Off Valve is ideal for those looking for more power without attracting unwanted attention.

    Vacuum Activated. Unlike the factory Ford blow-off valve that is electronically controlled by the ECU, the Turbosmart Kompact Shortie Blow Off Valve is mechanically operated by vacuum for consistent manifold pressure that helps keep your turbo spooled for better throttle response.

    Quality Construction. Constructed from aircraft grade aluminum alloy for durability and strength, this Turbosmart Kompact Shortie Blow Off Valve features a light-weight brass/aluminum two-piece piston, which is then perfectly matched with precision engineered springs allowing for razor sharp valve response.

    Application. The Turbosmart Kompact Shortie Recirculating Blow Off Valve is designed for use on all 2015-2023 EcoBoost Mustang's equipped with the turbocharged 2.3L Inline 4-cylinder engine.

    Technical Note. This Blow Off Valve is not legal for use in California or other states adopting California emission standards.

    Turbosmart TS-0223-1266

    CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    Installation & What's in the Box

    Installation Info

    What's in the Box

    • (1) Kompact Shortie Plumb Back BOV
    • (1) 40.94 X 2.62 O-Ring
    • (1) 18.72 X 2.62 O-Ring
    • (1) Electronic Plug
    • (1) 5mm Black Vacuum Hose
    • (1) 1/16th NPT Blank
    • (2) 1/16th NPT Nipples
    • (1) 1/16th NPT FPR Nipple
    • (1) Boost Reference Adapter
    • (1) Retaining Clip
    • (2) 6mm Spring Clamps and 1 x Hose Clamp
    • (2) 250mm Cable Ties
    • (2) 100mm Cable Ties

    Tech Specs

    4.4

    Customer Reviews (21)

    Questions & Answers

    No questions about this product yet. Ask the First Question

    Will It Fit My Mustang

    • EcoBoost - 15, 16, 17, 18, 19, 20, 21, 22, 23
