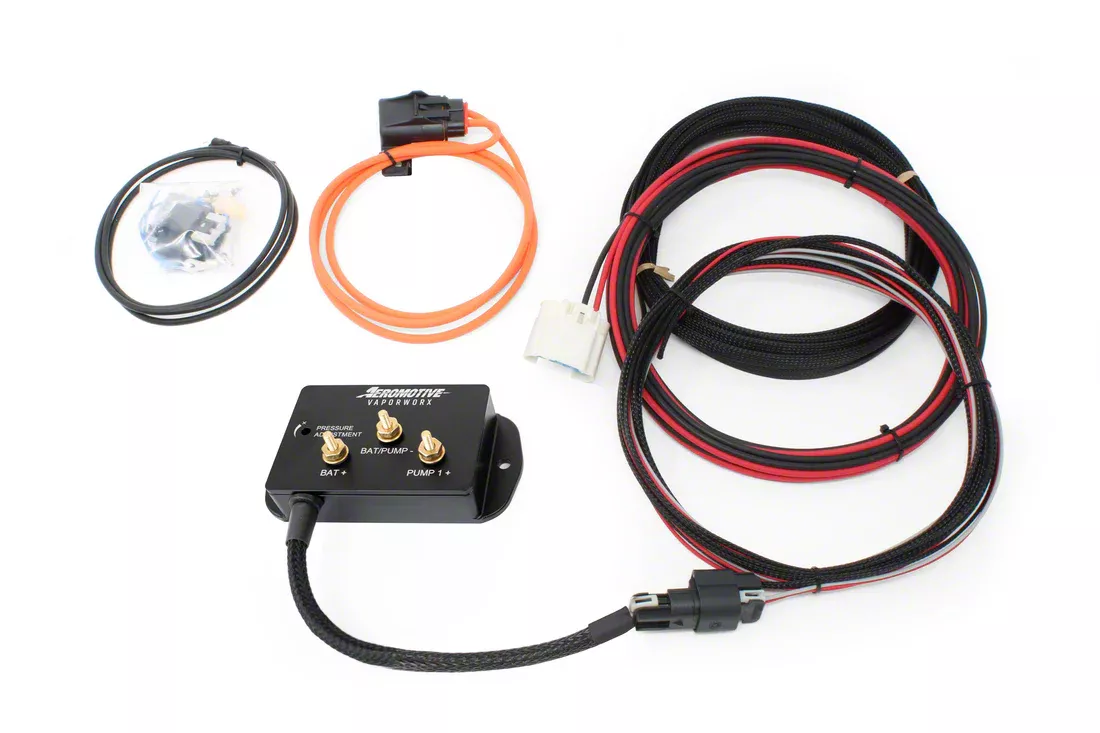

Aeromotive PressureWorx Ally DualX Controller for OEM Fuel Pump Modules (Universal; Some Adaptation May Be Required)
Item CC42210
Our Price
$572.55 kit
Military, Medical & First Responders
$28.63 Available in AM Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- For Use With Any OEM Fuel System Control Module Ford, GM, Etc. _x000D_
- Works With OEM Fuel Modules With OEM Fuel System Control Module Or Aftermarket ECM Pulse Driver _x000D_
- Compatible With OEM Gen2 Cadillac CTS-V2 Fuel Module When Using Aftermarket High-Flow Pumps _x000D_
- Dual Operation Modes For Primary And Secondary Pump Control _x000D_
- Maintains Power To Second Fuel Pump Module To Prevent Dry Running _x000D_
- Accepts Positive Or Negative Pulsed Signals From ECM Or FSCM _x000D_
- Designed To Assist OEM FSCM When Power Capacity And Wiring Are Insufficient _x000D_
- Piggybacks OEM FSCM To Maintain Full CAN Feedback And Diagnostics _x000D_
- Eliminates MIL Codes By Sharing Load Between Pumps _x000D_
- Single Wire Connection To FSCM Fuel Pump Pulsed Wire For Simple Integration _x000D_
- Supports Positive Pulled Or Pull-to-Ground Pulse Signals _x000D_
- Strongly Advises Against Inline Filters With OEM Fuel Modules Except Gen3 Coyote GT500 _x000D_
- Provides High-Power Fuel Pump Driver For Aftermarket ECMs With Pulsed Signal Output _x000D_
- Supports Duty Cycle Control For Idle/Cruise And Full Power Operation _x000D_
- Utilizes Solid State Relay Designed For High Frequencies Needed In Inductive Loads _x000D_
- No External Relays Or Switches Required _x000D_
- Ensures Better Low Fuel Level Capability When Using OEM Fuel Module As Secondary Pump _x000D_
- Reduces Fuel Pump Power By Half To Two Thirds During Idle/Cruise Compared To Traditional Systems _x000D_
- Minimum Continuous Power Rating Of 40 Amps _x000D_
- Compact Controller Package Measuring 4 Inches Long, 2.1 Inches Wide, And 1-5/8 Inches High _x000D_
- Features Over-Temperature Shutdown With Automatic Reset _x000D_
- Includes Short Circuit Protection With Automatic Reset _x000D_
- Uses OEM Delphi/Aptiv Connectors For Terminals, Seals, And Connector Bodies _x000D_
- All Wiring Made From Cross-Linked Polyethylene _x000D_
- UL94 Rated Components Throughout _x000D_
- Operates On 10 To 22 Volts, Compatible With Voltage Boosters _x000D_
- Separate Ground Wiring Required For FSCM To Avoid Short-To-Ground Faults _x000D_
- Includes Basic Layout Diagram For Gen5 Camaro ZL1 Fuel Modules _x000D_
- Installation Involves Attaching One 20 Gauge Wire To FSCM Fuel Pump Pulse Wire _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
Advanced Fuel Pump Control. The Aeromotive PressureWorx Ally DualX Controller for OEM Fuel Pump Modules is engineered to work seamlessly with OEM and aftermarket fuel system modules, providing dual control over primary and secondary fuel pumps. It piggybacks on the OEM fuel system control module to enable efficient operation of multiple fuel pumps, especially when higher fuel flow rates are needed. By utilizing pulsed signals from factory or aftermarket ECMs, this controller manages fuel pump speed and power to maintain optimal fuel pressure and system reliability.
_x000D__x000D_Construction and Appearance. Featuring a compact design measuring 4 inches by 2.1 inches by 1-5/8 inches, the controller is built with OEM Delphi/Aptiv connectors for reliable electrical connections. Wiring employs high-quality cross-linked polyethylene insulation, and components are UL94 rated for durability and safety compliance. The unit supports continuous operation at 40 amps and includes built-in protections against over-temperature and short circuits, both with automatic reset functionality.
_x000D__x000D_Installation. Installation requires connecting a single 20 gauge wire to the fuel system control module’s pulsed output wire. No drilling or complex wiring modifications are needed, making integration straightforward. Note that separate grounding for the FSCM wiring is necessary to ensure accurate fault detection and optimal system performance.
_x000D__x000D_Warranty. This product comes with a one-year limited warranty against defects in materials and workmanship.
_x000D__x000D_Application. Suitable for universal applications with some adaptation potentially required to interface with various OEM and aftermarket fuel system modules. Installation instructions clearly specify the need for separate grounds on FSCM wiring to avoid short-to-ground faults and ensure proper function.
Aeromotive 66182
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Fuel Pump Controller Kit
